5.3 Troubleshooting Requiring MGE UPS SYSTEMS After-Sales Support

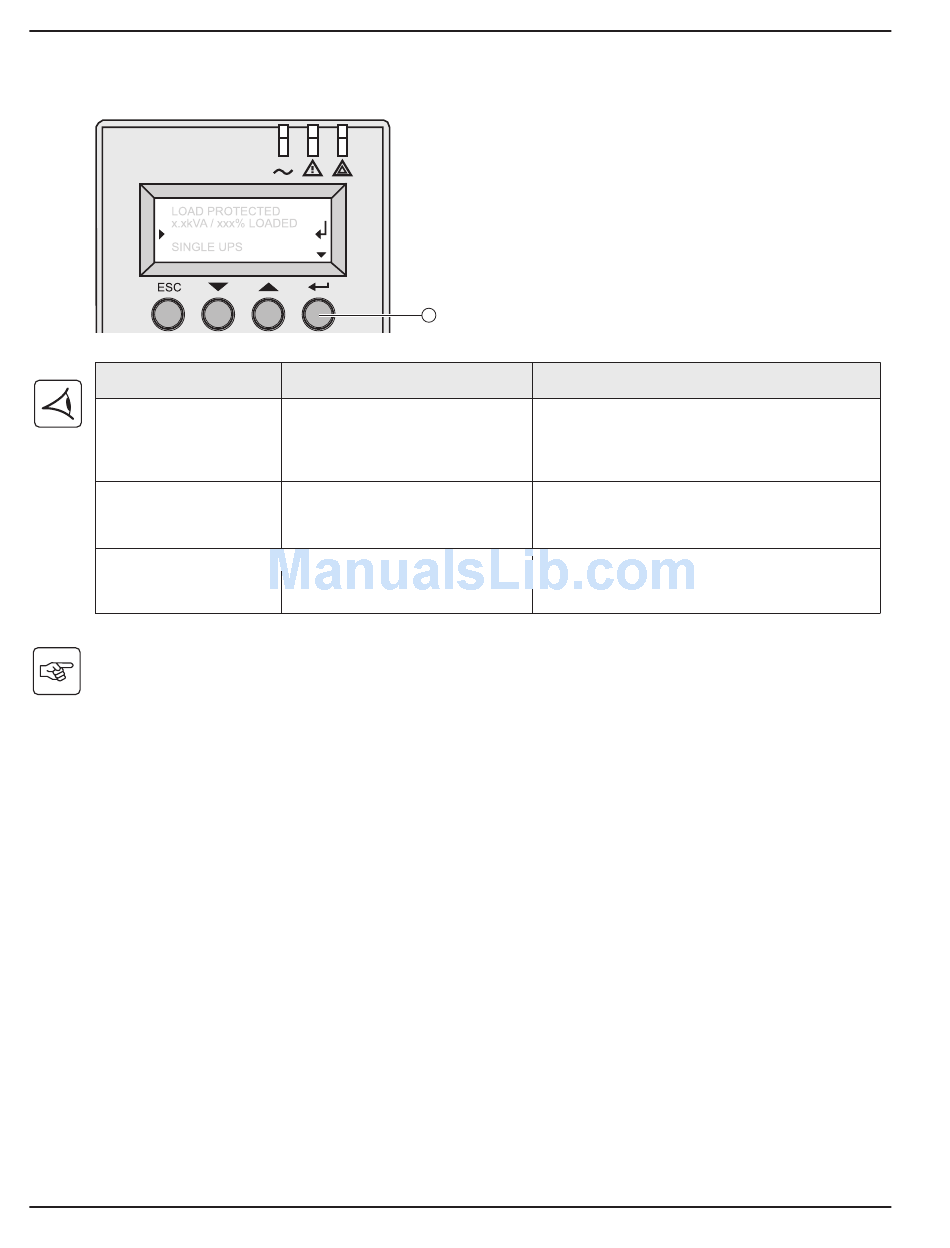

xxx FAULT
Display
POWER MODULE FAULT
BATT MODULE FAULT
FRAME FAULT
Note: In case of multiple fault, press the "Enter" button (27) and the scroll button (25) to get access to further details.
5 — 2
27
Signification
The battery is incorrectly connected.
Internal power sub-module fault
detected. Use "Enter" button (27) to
display details.
Battery fault detected during the bat-
tery test. Use "Enter" button (27) to
display details.
Internal chassis fault detected. Use
"Enter" button (27) to display details.
Troubleshooting
Correction
Call the after-sales support department at
1-800-523-0142. Follow the power sub-module
replacement procedure (see sections 7.1 and 7.2)
Call the after-sales support department at
1-800-523-0142. Follow the battery sub-module and
battery module replacement procedure (see section 7.2)
Call the after-sales support department at
1-800-523-0142. Follow the frame replacement
procedure (see sections 7.1 and 7.2)
86-87050-00 A01
