2.5 Communication Ports

Pulsar MX RT provides 4 communication methods.
1. The RS232 port provides communications using MGE UPS SYSTEMS Serial HID UPS transfer (SHUT) protocol. The
SHUT protocol is compatible with the power management applications available on the enclosed Solution-Pac 2 CD-Rom.
2. The Output contacts port is used for basic signaling or for protection of IT systems like IBM iSeries (formerly AS400)
and more.
3. The USB port is compatible with the power management applications available on the enclosed Solution-Pac 2 CD-Rom.
4. The slot is compatible with the optional 66102 — Network Management Card (NMC) 2006 Edition and the
66103-Status Card.
Note All communications options can be used simultaneously except for the SHUT RS232 and USB port. If both the USB
and SHUT ports are connected then the USB takes control.

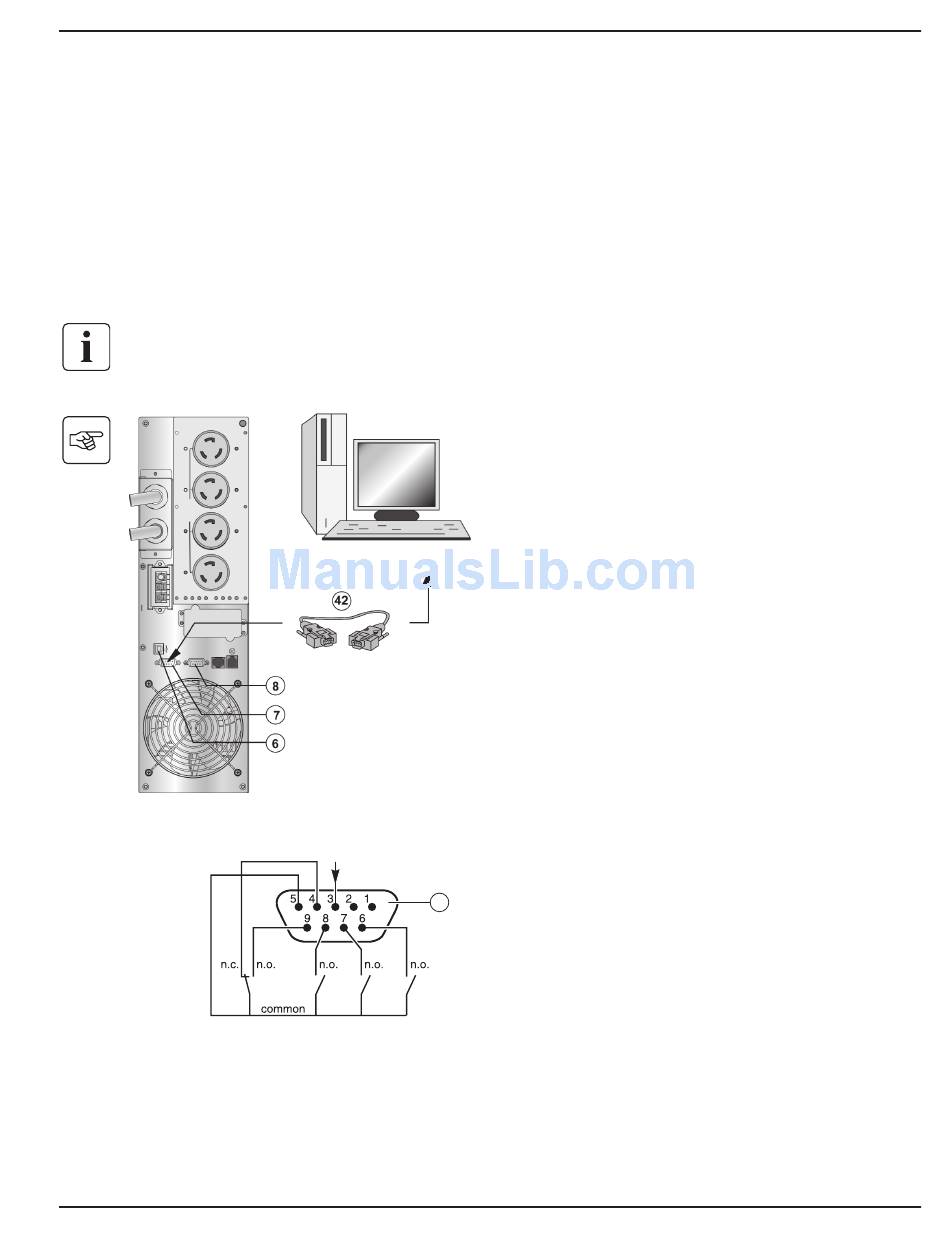

Connection to the RS232 or USB communication port (42)

Connection to the communication port by relays (8)

When the status is active, the contact between the common (Pin 5) and the relevant information pin is closed.
Output relays specifications:
◗ Voltage: 48 V DC max,
◗ Current: 2 A max,
◗ Power: 62.5 VA, 30 W.
Example: for 48 V DC, Imax=625 mA
86-87050-00 A01
Installation and User Manual
1 Connect the RS232 (42) or USB (44) communi-
cation cable to the serial or USB port on the
computer equipment.
2. Connect the other end of the RS232 cable (42)
to the RS232 (7) communication port or the
USB cable (not included) to the USB port (6) on
the UPS.
The UPS can now communicate with various MGE
UPS SYSTEMS power management application
software.
Please note that Personal Solution-Pac can be used to
configure (personalize) the UPS parameters such as
voltage, frequency, battery test, etc. See section 4.6
for more details.
◗ Pin 1, 2: not used,
◗ Pin 3: Remote Power Off signal (5 to 27 V DC,
10 m A max),
8 ◗ Pin 4: Operation on mains (not on battery),
◗ Pin 5: User common,
◗ Pin 6: Operation on automatic by-pass,
◗ Pin 7: Low battery,
◗ Pin 8: Load protected,
◗ Pin 9: Operation on battery.
n.o: contact normally open.
n.c: contact normally closed.
Installation 2 — 5
