Pulsar MX

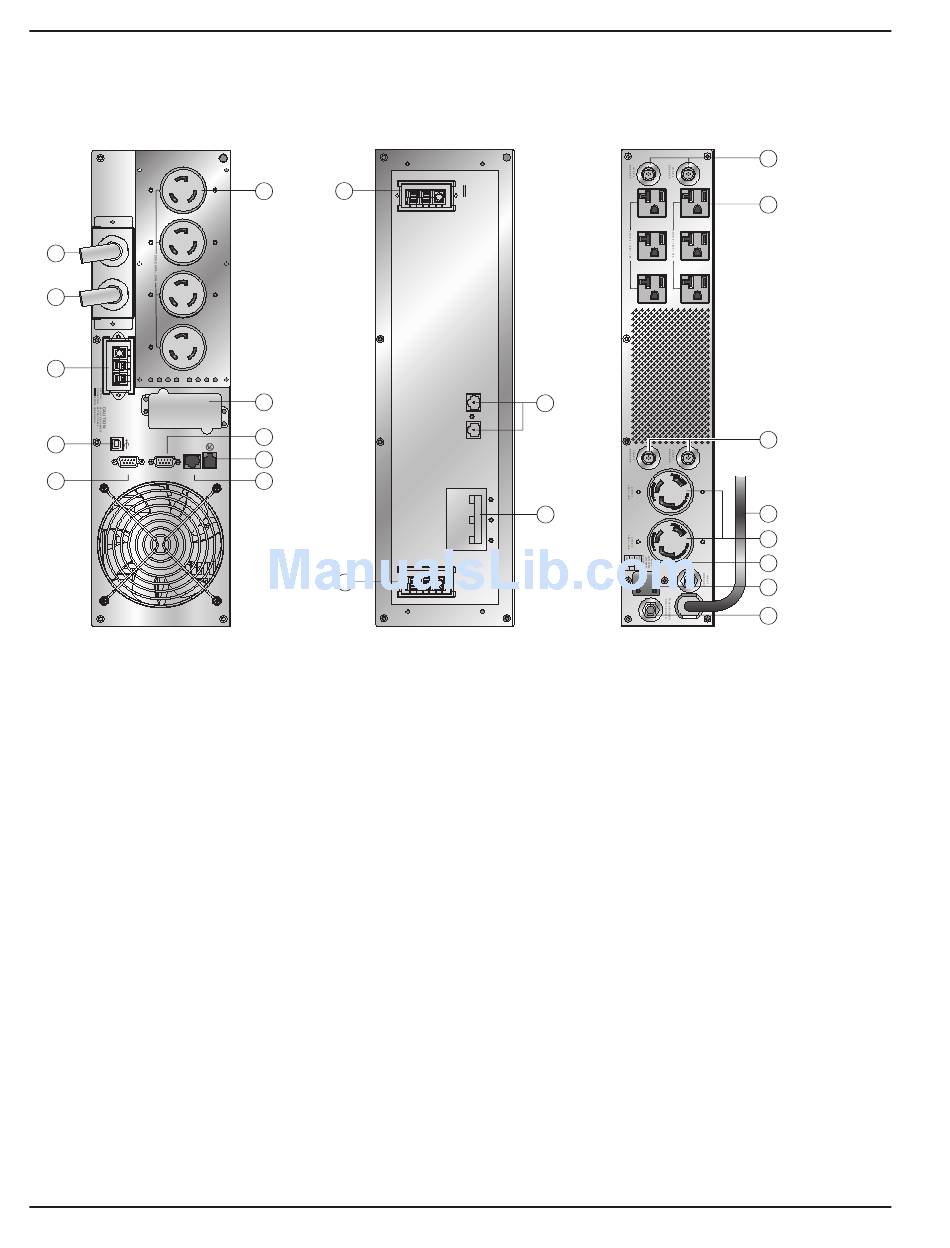

1.2 Rear Panels

Pulsar MX 5000 RT
2
3
4
6
RS-232
BATT. NO. RPO
7
(1) One group of 4 L6-30R outlets for connection of equipment
(2) Output terminal block
(3) Normal AC source input cable with L6-30P
(4) Connector for additional battery module
(5) Slot for optional communication card
(6) USB communication port
(7) RS232 communication port
(8) Communication port by relay
(9) Connector for Remote Power Off control
(10) Connector for automatic detection of battery module(s)
(11) Connectors for automatic detection of battery module(s)
(12) Connectors for battery modules (to the UPS or to the other battery modules)
(13) DC Battery circuit breaker
(14) Resetable 20Amp circuit breakers for NEMA 5-15/20 receptacle
(15) 6 NEMA 15/20 receptacle
(16) Resetable 20Amp circuit breakers to protect each L5-20R receptacle
(17) Input cable with L6-30P plug
(18) Input resetable CB
(19) 2 NEMA L5-20R receptacle
(63) Input voltage selecting (240V/208)
(64) Transformer protection CB
1 — 2
Pulsar MX EXB RT
1 12
5
8
9
10
12
Presentation
Transformer 5000
11
13
14
15
16
17
19
18
63
64
86-87050-00 A01
