3.3 Operating Modes

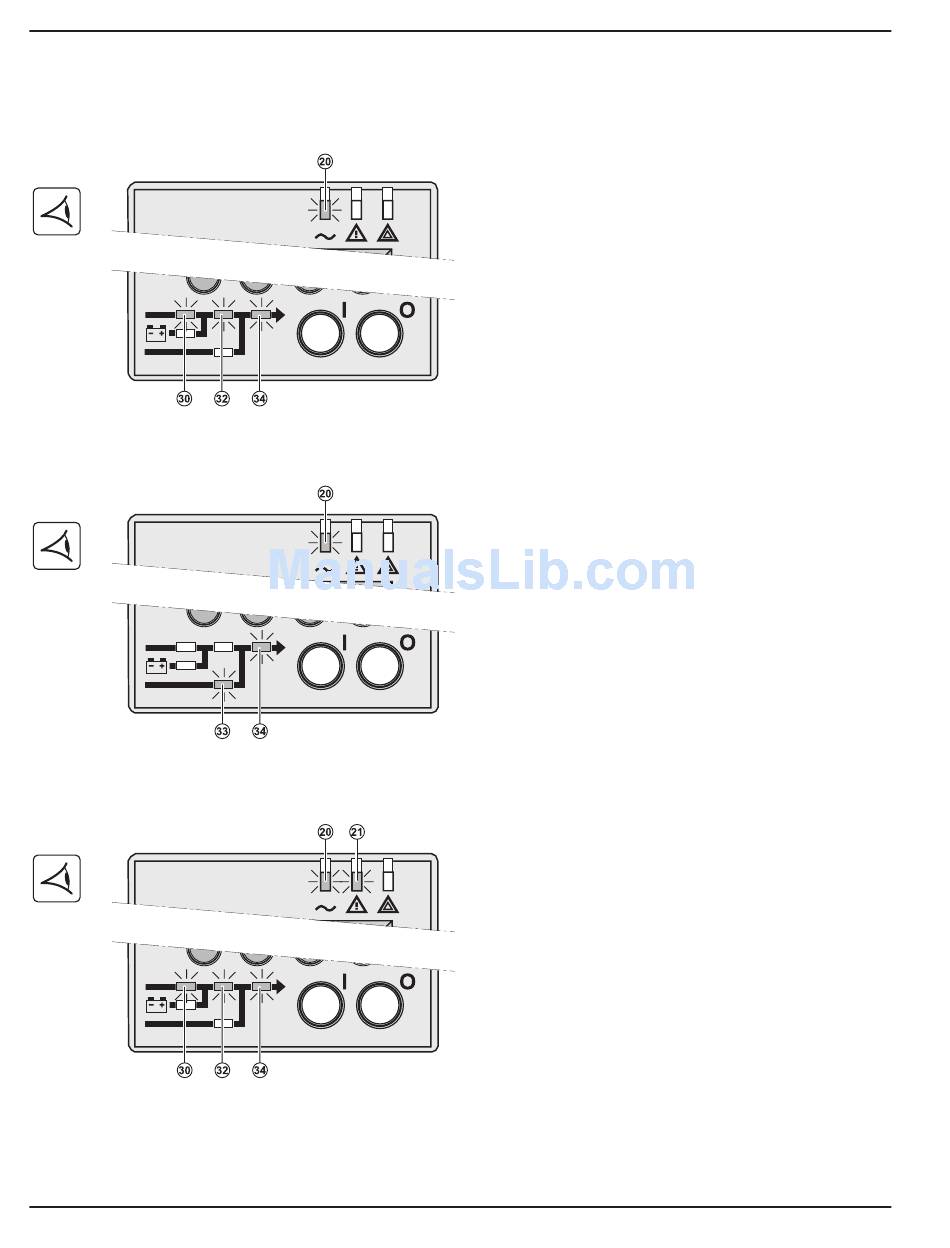

Normal mode

ECO mode

AC out of tolerance
3 — 2
This is the standard operating mode, set by default in
the factory.
Under normal condition (Normal AC source available):
LED (20) is ON.
LEDs (30), (32), (34) are green.
The equipment is protected by the UPS.
The main advantage of the Eco mode (see glossary) is
that it reduces the consumption of electrical power.
Under normal condition (Normal AC source available):
LED (20) is ON.
LEDs (33), (34) are green.
The equipment is supplied in ECO mode.
If normal AC source is out of tolerance:
LEDs (20), (21) are ON.
LEDs (30), (32), (34) are green.
The equipment is protected by the UPS.
Operation 86-87050-00 A01
