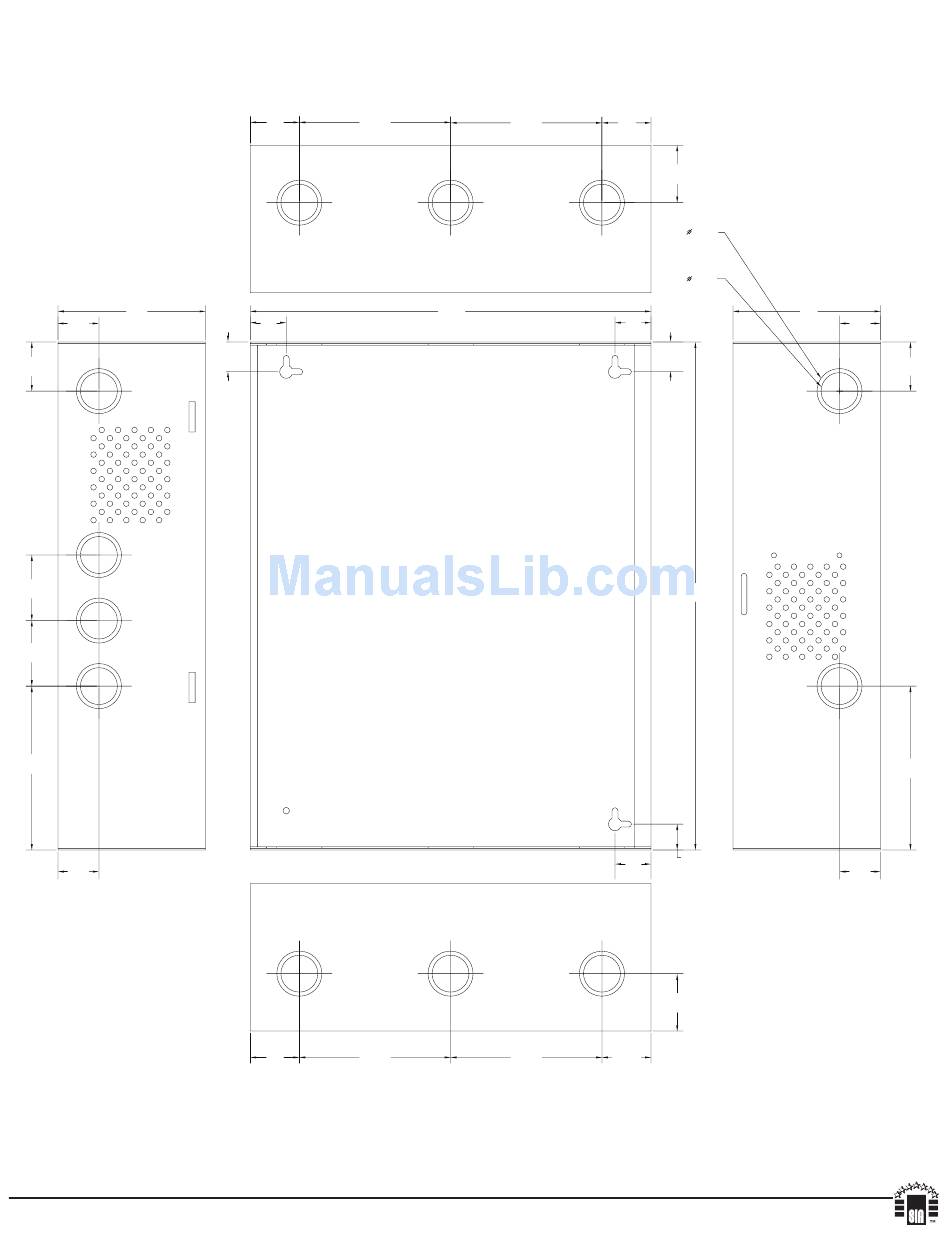

Enclosure Dimensions (BC400):
AL600ULXX, AL600ULXPD4, AL600ULXPD4CB, AL600ULXPD8, AL600ULXPD8CB, AL600ULXPD16 and
AL600ULXPD16CB
15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm)
4.5"
(114.3mm)
1.25"
(31.75mm)
1.5"
(38.1mm)
2.0"
(50.8mm)
2.0"
(50.8mm)
5.0"
(127.0mm)
1.25"
(31.75mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IIAL600ULX Series
- 8 -
1.5"
4.615"
(38.1mm)
(117.22mm)
1.1"
(27.94mm)
0.91"
(23.114mm)
1.5"
4.615"
(38.1mm)
(117.22mm)
4.615"
(117.22mm)
12.23"
(310.64mm)
4.615"
(117.22mm)
A30N
1.5"
(38.1mm)
1.75"
(44.45mm)
1.375"
(34.925mm)
1.125"
(28.575mm)
1.1"
(27.94mm)
0.91"
(23.114mm)
15.5"
(393.7mm)
0.79"
1.1"
(20.06mm)
(27.94mm)
1.75"
(44.45mm)
1.5"
(38.1mm)
4.5"
(114.3mm)
1.25"
(31.75mm)
1.5"
(38.1mm)
5.0"
(127.0mm)
1.25"
(31.75mm)
MEMBER
AL600ULX Series
