Power Supply Output Specifications:

Output Switch Position
12VDC SW1 - CLOSED (Fig. 1b, pg. 3)
24VDC SW1 - OPEN (Fig. 1b, pg. 3)
Output
12VDC / 40AH Battery
24VDC / 12AH Battery
24VDC / 40AH Battery
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's
upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install two fasteners. Place the enclosure's upper keyholes over the two upper
screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 7-8).
CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric shock and
fire hazard replace fuse with the same type and rating. Do not expose to rain or moisture.

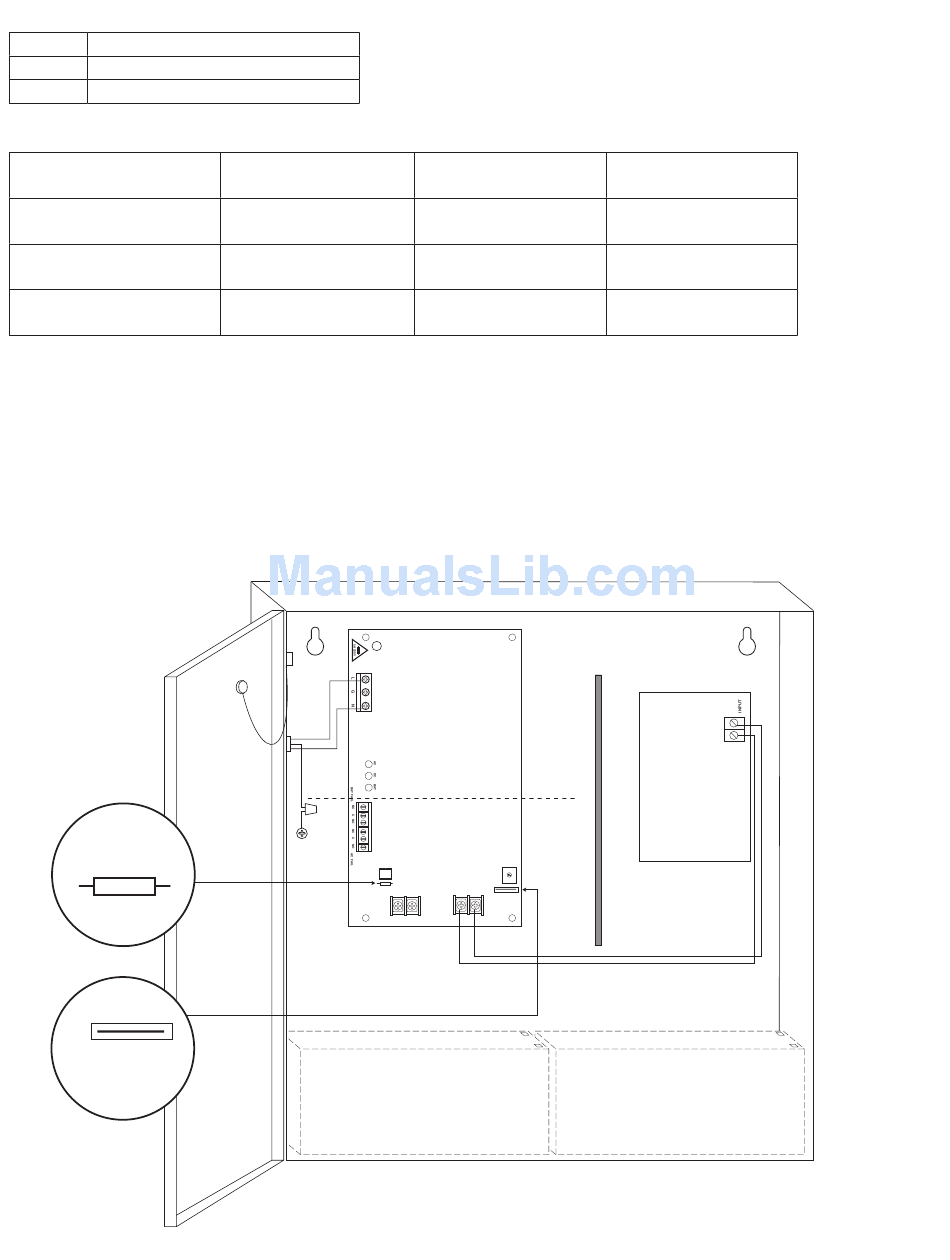

Fig. 1
Door
Fig. 1a
AC Delay
Fig. 1b
OPEN - 24V
CLOSED - 12V
AL600ULX Series
Stand-by Specifications (total current shown):
4 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 6.0 amp
Alarm = 6.0 amp
- - - - - - - -
Stand-by = 6.0 amp
Alarm = 6.0 amp

Installation Instructions:

Wire
Strap
(from
(non
Enclosure
power-
to Door)
limited)
Battery & AC
Supervision
Circuit
(power-limited)
Earth
Ground
Battery
connection
(non power-limited)
Optional Rechargeable
Stand-by Battery
CAUTION: Optional rechargeable stand-by batteries must match the power supply output
voltage setting.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
24 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 1.0 amp
Alarm = 6.0 amp
Stand-by = 200mA
Alarm = 6.0 amp
Stand-by = 1.0 amp
Alarm = 6.0 amp
Class 1
OPEN - 24V
CLOSED - 12V
+ BAT ---
+ DC ---
60 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 6.0 amp
- - - - - - - -
Stand-by = 300mA
Alarm = 6.0 amp
Power
Distribution
Module(s)
Divider
(non power-limited)
Optional Rechargeable
Stand-by Battery
- 3 -
