7. wIRING

KX12's internal wiring is designed to pick up the audio power signal from pins 1+ / 1- of a Speakon NL4
connector. Pins 1+ and 1-, such as pins 2+ and 2-, are directly wired from one socket to the other, so that
the two sockets are equivalent and can connect the speaker to the amplifier or to another KX12 driven
in parallel by the same amplifier channel.

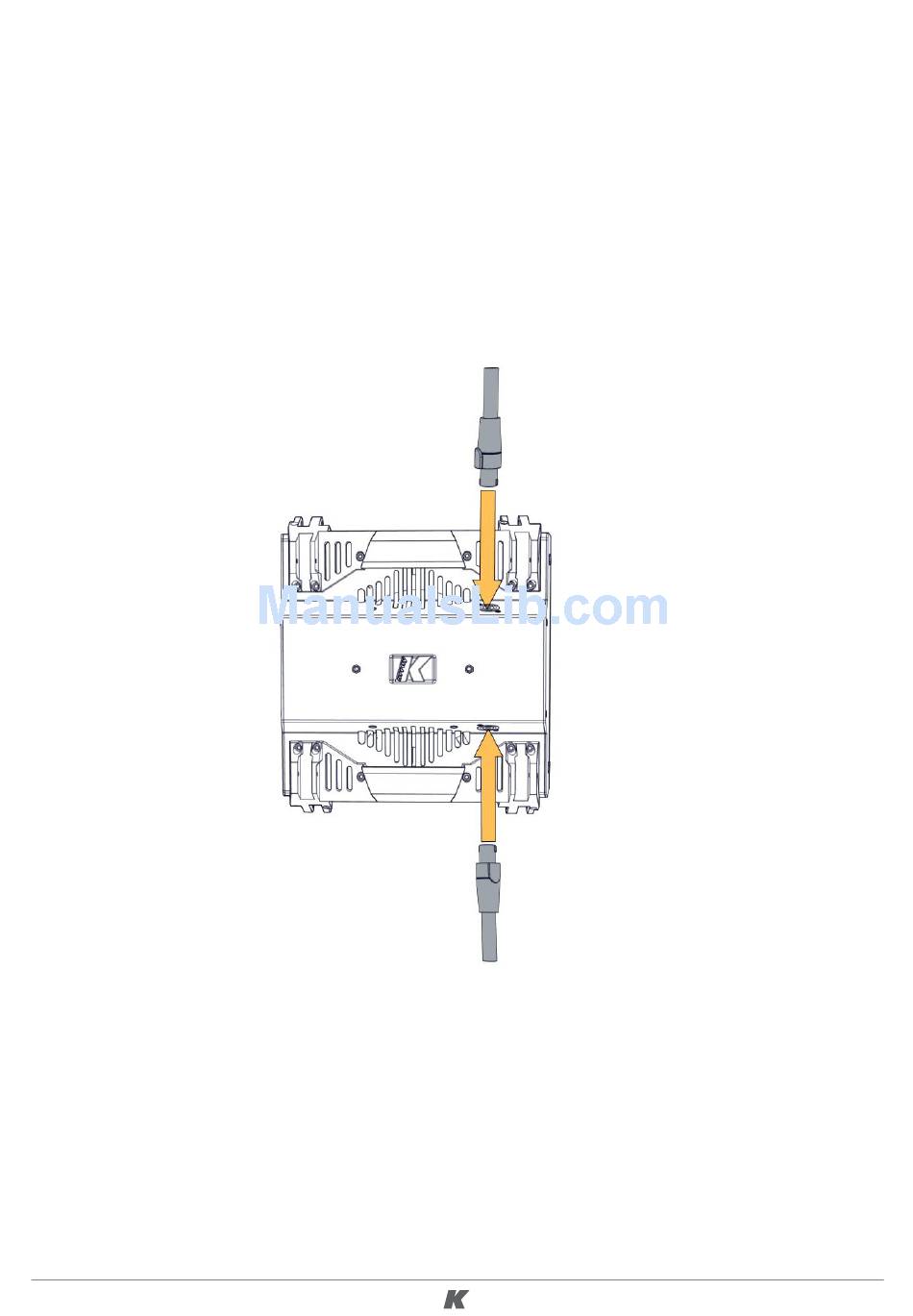

Connect the Subwoofer's Speaker Output to the first unit of the cluster with the provided long two-poles
Speakon cable and connect the other units together with the provided short two-poles Speakon cables.
