8. wIRINg

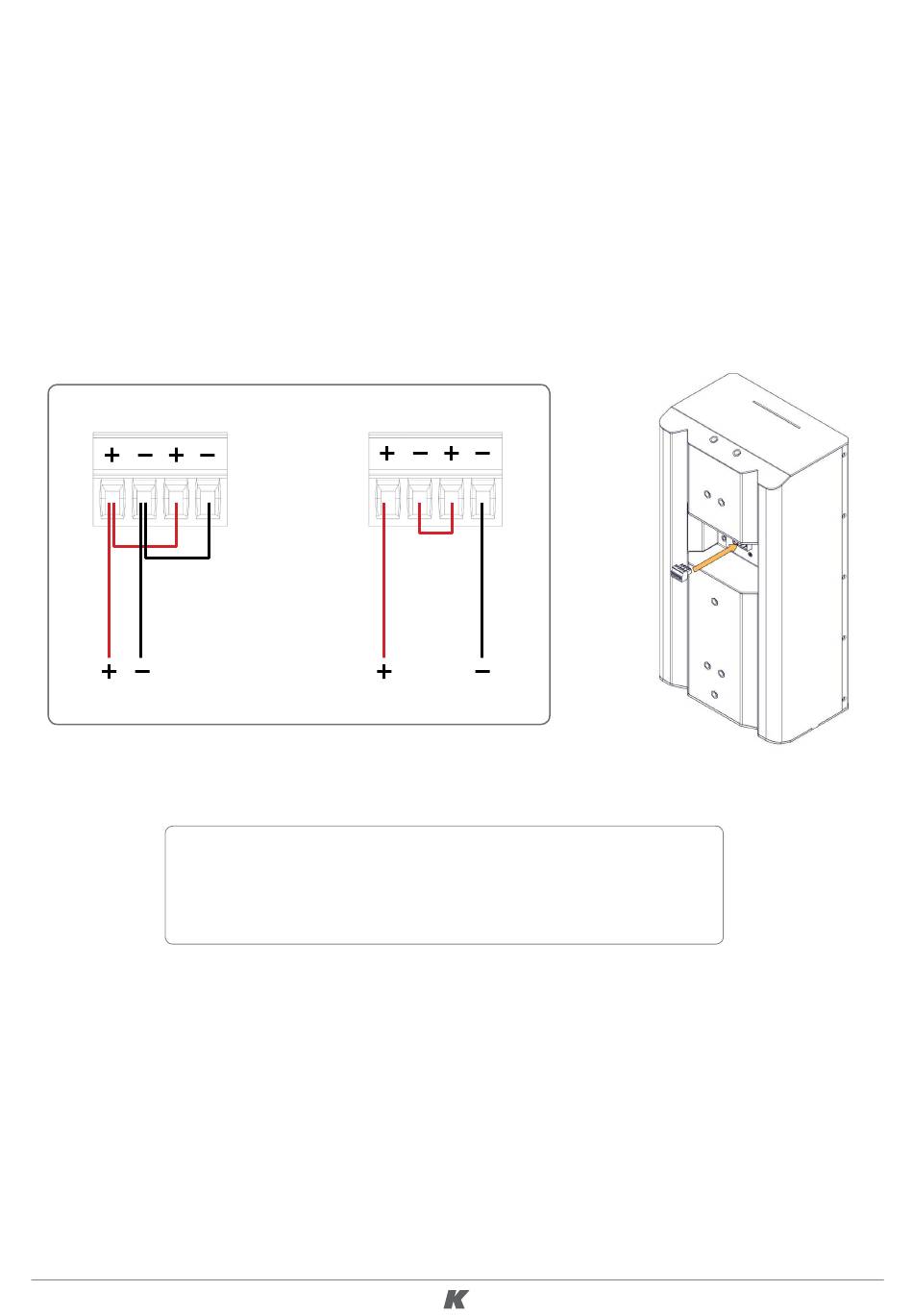

The KU26 is comprised of a 6" neodymium transducer, combined with a 6" passive transducer. The
neodymium transducer features a double voice-coil (16Ω + 16Ω).
The two voice coils can be wired in parallel (resulting in a 8Ω total impedance) or in serial (resulting in a
32Ω total impedance). To do this, we provide a 4-pin female Phoenix connector where users can make
the wiring; then the female Phoenix connector is plugged into the male Phoenix connector situated at
the back of the speaker.
We provide also a "serial cable" that can be used to connect the two central pins of the phoenix
connector in the 32Ω configuration.
8Ω
NOTE
The K-array KA84 amplifier can drive up to eight KU26 at 32Ω
per channel. The K-array KA24 and KA14 amplifiers can drive up
to two KU26 at 8Ω per channel.
