7. wIRING

KMT21P internal wiring is designed to pick up audio power signal from pins 1+ / 1- of a NL4 connector.
2+ and 2- pins, just like 1+ and 1-, are directly wired from one socket to the other, so the signal can pass
through multiple speaker modules without additional external cabling.

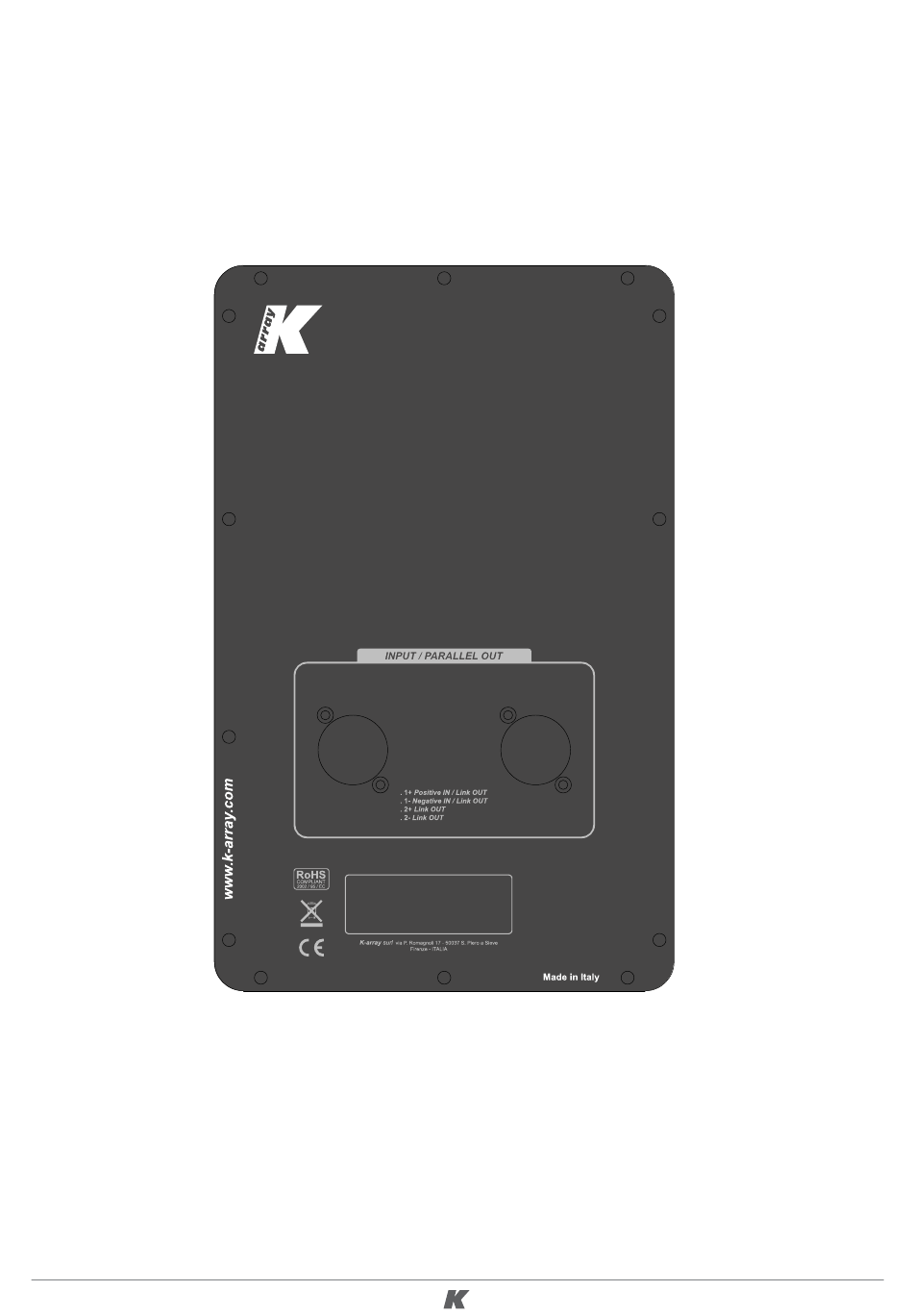

Rear panel
