8. wIRINg

The KU44 is comprised of two 4" neodymium transducers, combined with two 4" passive transducers.

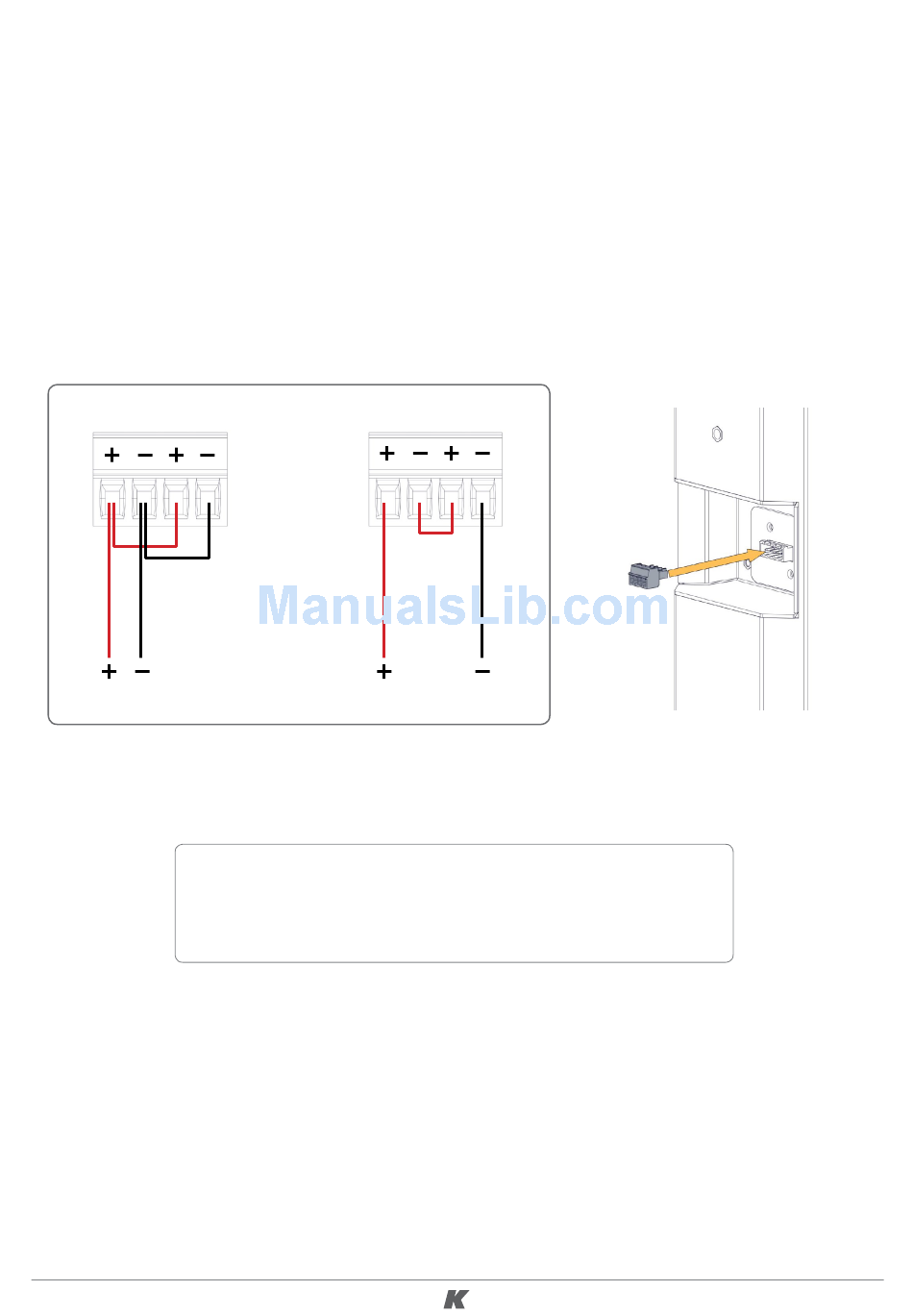

The two transducers can be wired in parallel (resulting in a 8Ω total impedance) or in serial (resulting
in a 32Ω total impedance). To do this, we provide a 4-pin female Phoenix connector where users
can make the wiring; then the female Phoenix connector is plugged into the male Phoenix connector
situated at the back of the speaker.
We provide also a "serial cable" that can be used to connect the two central pins of the phoenix
connector in the 32Ω configuration.
8Ω
NOTE
The K-array KA84 amplifier can drive up to eight KU44 at 32Ω
per channel. The K-array KA24 and KA14 amplifiers can drive up
to two KU44 at 8Ω per channel.
32Ω
