5. Repeat Steps 4 and 5 to add the other units.
If you want the to angle the speaker by 0°, +5°, +10° or +15°, position the joint block so that
the letter "A" is at the bottom. Plug a piston pin in the hole labeled "A", adjust the angle of
the speaker and plug the second piston pin in the hole corresponding to the desired angle.
If you want the to angle the speaker by -5°, -2.5°, +2.5° or +7.5°, position the joint block so
that the letter "B" is at the bottom. Plug a piston pin in the hole labeled "B", adjust the angle
of the speaker and plug the second piston pin in the hole corresponding to the desired angle.

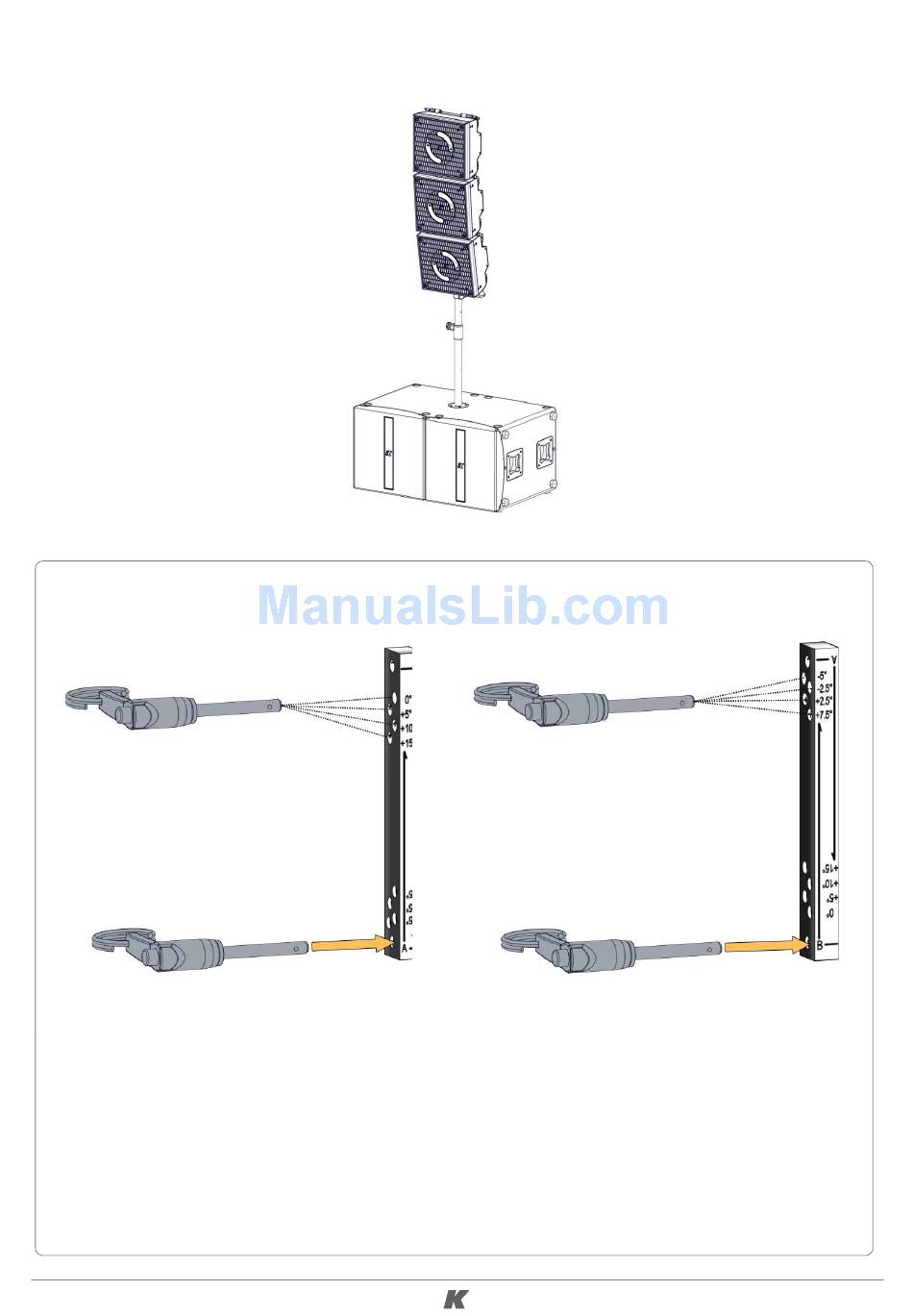

The pictures below show how to regulate the angles
