KRX PORTABLE SYSTEMS
DELAY
CoNfIGURATIoN

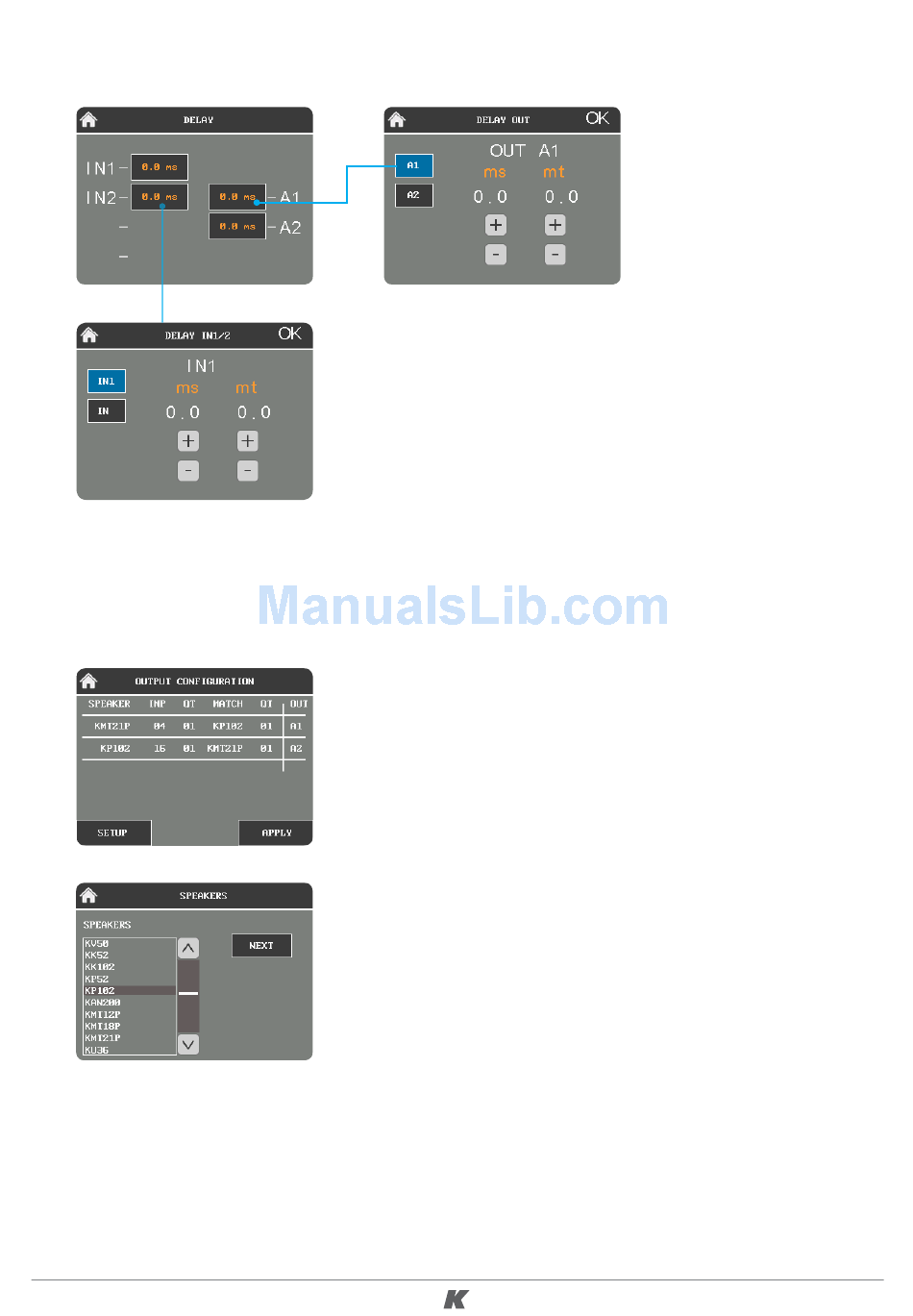

The Delay page allows users to independently set the
delays for the two output channels driving the subwoofer
and the speakers connected to the Speaker Out (up to
3.5 mt) and for Channel 1 and Channel 2 input channels
(up to 114 mt).
Pressing on a delay value, users can set the delay in
milliseconds or meters. Press the OK button to return to
the Delay page.
When you buy a KRX system, the correct preset is
already loaded and the system is ready to use. But it
can happen that you want to connect another model of
K-array speaker to the subwoofer.
In this case, go to the Configuration page and press
the SETUP button. Insert the model and the number of
speakers connected to the Speaker Out.
Press the NEXT button on the top right corner.
Press the APPLY button and the DSP will automatically
adjust the output gain and the crossover to match the
requirement for the speakers connected.
