USER MANUAL – EN

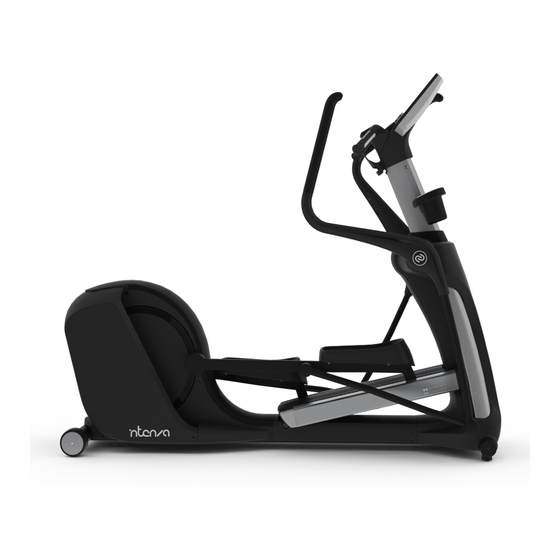

IN 6578/ IN 7406 Elliptical Trainer inSPORTline 550ETi/550ETe
1

Advertisement

Table of Contents
loading

Related Manuals for Insportline 550ETi

Summary of Contents for Insportline 550ETi

  • Page 1 USER MANUAL – EN IN 6578/ IN 7406 Elliptical Trainer inSPORTline 550ETi/550ETe...

  • Page 2: Table Of Contents

    Recycling The Battery (550 i series elliptical trainer only) ..............31 TROUBLE SHOOTING ..........................32 When To Call For Help ........................32 Error Message ............................32 550ETi EXPLODED DRAWING & PART LIST ..................33 SPECIFICATION OF INTENZA 550ETi ....................35 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........36...
  • Page 3 Thank you for purchasing Intenza product. Before installing or using the equipment, please read all instructions carefully to ensure that you have the knowledge to safely and properly operate all of this product’s features. The following will provide guidelines for quick set up and the correct way to use the equipment. We hope you achieve the product experience that you expect.

  • Page 4: Important Safety Precautions

    1. IMPORTANT SAFETY PRECAUTIONS Warning  550 series elliptical trainer is designed for aerobic exercise in commercial environment.  Please check with your physician prior to begin any exercise program.  Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. ...

  • Page 5: Assembly

    2. ASSEMBLY 550ETi Part List Open the shipping carton box, remove all parts from the carton and styrofoam inserts. Before you begin the assembly, verify that the following hardware items are packed with the equipment. Part description Image Right bug...
  • Page 6 Dome screw, M6 x Tapping screw, M4 x Washer, M8 Star washer (Black), Star washer (White), TOOL: Hex wrench (3mm, 5mm 6mm) Open wrench (13mm)

  • Page 7: Assembly Instruction-550Eti

    2.1 Assembly Instruction-550ETi STEP 1: Assemble the right handle bar NOTE: Align the handle bar to the pivot point. STEP 2: Assemble the left handle bar NOTE: Align the handle bar to the pivot point.
  • Page 8 STEP 3: Assemble the bug cap NOTE: 1. Distinguish the R and L side of the bug cap as shown below. 2. Tear out the adhesive theme and stick the bug cap on the handlebar. STEP 4.1: Assemble the front post NOTE: 1.
  • Page 9 STEP 4.2: Assemble the front post NOTE: 1. Tighten the front screw first. 2. Make sure all three screws are tightened. STEP 5: Assemble the front post cover STEP 6: Assemble the console...
  • Page 10 NOTE: 1. Connect the console cable and carefully insert the cable into the front post. 2. Tighten the front screw first then make sure the post is well positioned. 3. Tighten the other three screws of the front post. STEP 7: Assemble the console cover NOTE: Make sure three screws are tightened.
  • Page 11 STEP 8: Assemble the iPad rack STEP 9: Assemble the bracket of the cup holder NOTE: Make sure the direction(R, L) of the bracket is correct before assembly. STEP 10: Assemble the cup holders...
  • Page 12 - Assemble finished –...

  • Page 13: How To Use The Elliptical Trainer

    3.1 550ETi Display Console Overview Your Intenza 550ETi is equipped to provide you and your users unlimited exercise opportunities. Engage in each feature to find the right combination for your fitness regimen. The Display console provides the operating controls and display elements outlined in the following paragraphs.
  • Page 14 Incline changes occur only when the foot pedals are in motion. The number on the display indicates the selected range, not the degree of incline. There is not a one-to-one ratio between the degree of incline and the incline level. Model Incline level Degree of incline 13° through 40° 550ETi 1 through 16...

  • Page 15: How To Effectively Workout At Your Own Level

    3.2 How To Effectively Workout At Your Own Level? Smart Workrate system provides visual color feedback of skirting light. Skirting light at the Uni jog switch enhances users to optimize their workout efforts for maximum result based on heart rate level. This system also helps users to stay in their target heart rate zones.

  • Page 16: How To Personalize Your Workout

    3.3 How To Personalize Your Workout? You can personalize the workout routine via USB. The USB function also gives access to the service technician to download the usage record of Intenza elliptical system to track problems and upgrade the new version of software.

  • Page 17: Save The Workout Profile

    3.4 Save The Workout Profile In the program of Preset and Custom, the workout profile can be saved to your USB under filename of days to track your exercise progress. If you want to save the workout profile, insert the USB device before the workout. 1.

  • Page 18: Settings Of Eti

    Intenza products, recumbent bike, treadmill, elliptical trainer…etc. You can enjoy your workout and enter the programs promptly without any personal information (name, age, weight) setting. After using Intenza 550ETi for a period of time, you may want to change some of the basic settings, e.g. distance unit or sound. In the Settings mode, you can find out the version of the bikes’...

  • Page 19: Begin The Workout

    3.7 Begin The Workout Before beginning any fitness program, see your physician for a complete physical examination. To maintain your balance, always grasp a handlebar when you step on or off the foot pedals, and when you use the keypads. 1.

  • Page 20: Workout Options

    4. WORKOUT OPTIONS This section list out Intenza 550ETi pre-programmed workout profiles. The following workout program can be accessed by turning and press the Uni jog switch. Intenza console system can save each workout automatically every five seconds during your workout, just insert the USB device before starting your workout.

  • Page 21: Preset Program

    4.2 Preset Program Intenza 550 series elliptical trainer offers three categories of incline, resistance and reverse training to add variety and challenge to your workout. Each program provides different benefits and can help you achieve your own personal fitness goals. During the Preset program, the LED matrix will show below profile which represents the resistance levels and incline levels.
  • Page 22 Workout Procedure: Detailed instruction for Intenza 550ETi 1. Mount on the elliptical trainer, begin to pedal. 2. Insert the USB device to the USB port, if you want the workout record to be saved automatically. 3. Choose PRESET by turning Uni jog and press ENTER to confirm.

  • Page 23: Target Program

    Time Calories Workout Procedure: Detailed instruction for Intenza 550ETi 1. Step on the elliptical trainer, begin to pedal. 2. Insert the USB device to the USB port; if you want the workout record to be saved automatically. 3. Choose TARGET program by turning Uni jog and press ENTER to confirm.

  • Page 24: Hrc Program

    Hill HR Cardio HR HEART RATE ZONE: Workout procedure: Detailed instruction for Intenza 550ETi 1. Step on the elliptical trainer, begin to pedal. 2. Insert the USB device to the USB port; if you want the workout record be saved automatically.
  • Page 25 3. Choose HRC by turning Uni jog and press ENTER to confirm. 4. Choose MODE (CONSTANT/INTERVAL/HILL/CARDIO) by turning Uni jog and press ENTER to confirm. 5. Choose ATTAINING SPEED by turning Uni jog and press ENTER to confirm. You may choose a speed from 3 options, MID, SLOW, and FAST.

  • Page 26: Custom Program

    CUSTOM program, you can easily track exercise progress and choose the program you desired from the folders. Workout Procedure: Detailed instruction for Intenza 550ETi 1. Step on the elliptical trainer, begin to pedal. 2. Insert the USB device to USB port.

  • Page 27: Race Program

    Race type options 500M / 1K / 2K Workout Procedure: Detailed instruction for Intenza 550ETi 1. Step on the elliptical trainer, begin to pedal. 2. Choose RACE by turning Uni jog and press ENTER to confirm. 3. Choose RACE TYPE (500mm, 1km, 2km) by turning Uni jog and press ENTER to confirm.

  • Page 28: Fitness Test

    You can refer to VO2 MAX CHART to read your test score. Workout Procedure: Detailed instruction for Intenza 550ETi 1. Step on the elliptical, begin pedaling. 2. Choose FITNESS TEST by turning Uni jog and press ENTER to confirm.
  • Page 29 VO2 MAX CHART...

  • Page 30: Maintenance

    5. MAINTENANCE 5.1 Preventative Maintenance Tips With durable, high performance components, Intenza 550 series elliptical trainer is designed for heavy usage with minimal maintenance required. To keep your elliptical trainer in top condition, Intenza strongly recommends performing the regular daily and regularly preventative maintenance routines outlined below. Daily maintenance ...

  • Page 31: How To Charge The Battery (550 I Series Elliptical Trainer Only)

    5.3 How To Charge The Battery (550 i series elliptical trainer only) Intenza 550ETi is equipped with generator and rechargeable battery to provide constant power supply. A new battery will discharge power and charge the battery before use is recommended. Upon initial use (or after a prolonged storage period) the battery may require to charge before achieving maximum capacity.

  • Page 32: Trouble Shooting

    6. TROUBLE SHOOTING 6.1 When To Call For Help 1. Verify the symptom and review the operating instructions. The problem could be unfamiliar with the product features and workout programs. 2. Check the error message then follow the instruction on the service manual. 3.

  • Page 33: 0Eti Exploded Drawing & Part List

    7. 550ETi EXPLODED DRAWING & PART LIST...

  • Page 35: Specification Of Intenza 550Eti

    8. SPECIFICATION OF INTENZA 550ETi Design use Commercial Maximum user weight 181kgs /400 lbs Display type LED Display readout Heart rate, Distance, Time, RPM, Calories, Watts, Resistance level, workout profile Summaries Total elapsed time of workout, total calories burned, total distance, total watts generated,...

  • Page 36: Terms And Conditions Of Warranty, Warranty Claims

    9. TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No. 513/1991 Coll., Commercial Code, and Act No.
  • Page 37 If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the Warranty Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller is eligible to require a compensation for all the costs arising from the repair.
