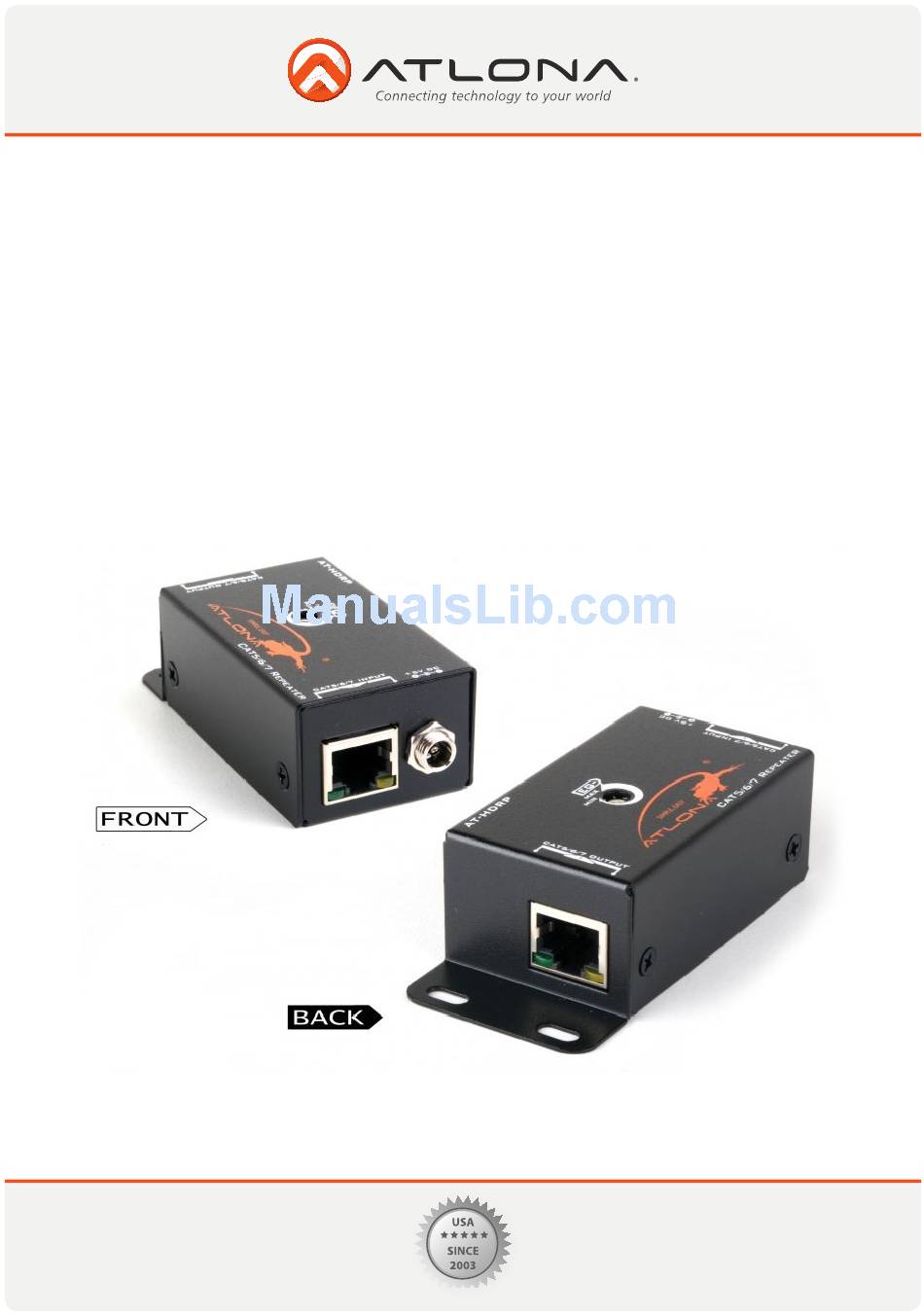

Page 1: User Manual
User Manual CAT5/6/7 Repeater for AT-HD-V40SRS, AT-HD14SS, AT-HD19SS, AT-HD50SS, AT-HD50RSL, AT-DVI40SRS AT-HDRP Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
7. Connection Diagram ..........5 8. Notice ..........6 9. Performance Guide ..........6 10. RJ45 / CAT5 Reference ..........7 11. Safety Information ..........8 12. Warranty ..........9 13. Atlona Product Registration ..........10 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display moni- tors including HDMI™ or DVI enabled TV sets or LCD PC monitors. The AT-HDRP can be cascaded in multiple sets to let you extend the HDMI™... -
Page 4: Specifications
SPECIFICATIONS Model Name AT-HDRP Technical Role of usage Repeater HDMI™ compliance DVI compliance DVI 1.1 HDCP compliance Video bandwidth Single-link 340MHz (10.2Gbps) Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color Audio support Surround sound (up to 7.1ch) or stereo digital audio... -
Page 5: Panel Description
2. +5V DC: Connect to 5V DC power supply unit. Output Panel 1. CAT5/6/7 OUTPUT: Connect to the RJ45 port on the Receiver unit such as AT-HDRP, AT-HD-V40RS, AT-HDRS, AT- HD15SRS, AT-DVI15SRS, and AT-DVI40RS with a solid Cat5/5e/6/7 UTP/STP cable 2. -
Page 6: Installation
AT-DVI40SRS with a solid Cat5/5e/6/7 UTP/STP cable to the CAT5/6/7 INPUT RJ45 port. 2. Connect a HDMI™ or DVI Receiver Unit such as AT-HDRP, AT-HD-V40RS, AT-HDRS, AT-HD15SRS, AT-DVI15SRS, and AT-DVI40RS with a solid Cat5/5e/6/7 UTP/STP cable to the CAT5/6/7 OUTPUT RJ45 port. -
Page 7: Notice
HDMI™ inputs. PERFORMANCE GUIDE Performance rating Type of category cable Wiring Shielding CAT5 CAT5e CAT6 Solid Unshielded (UTP) Shielded (STP) Stranded Unshielded (UTP) Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Rj45 / Cat5 Reference
RJ45 / CAT5 REFERENCE Data Link TIA/EIA-568-B PIN Color Function TX0- TX0+ TX1- TX1+ TX2- W-BL TX2+ TXC- W-BR TXC+ Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your AT-HDRP. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 11: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
