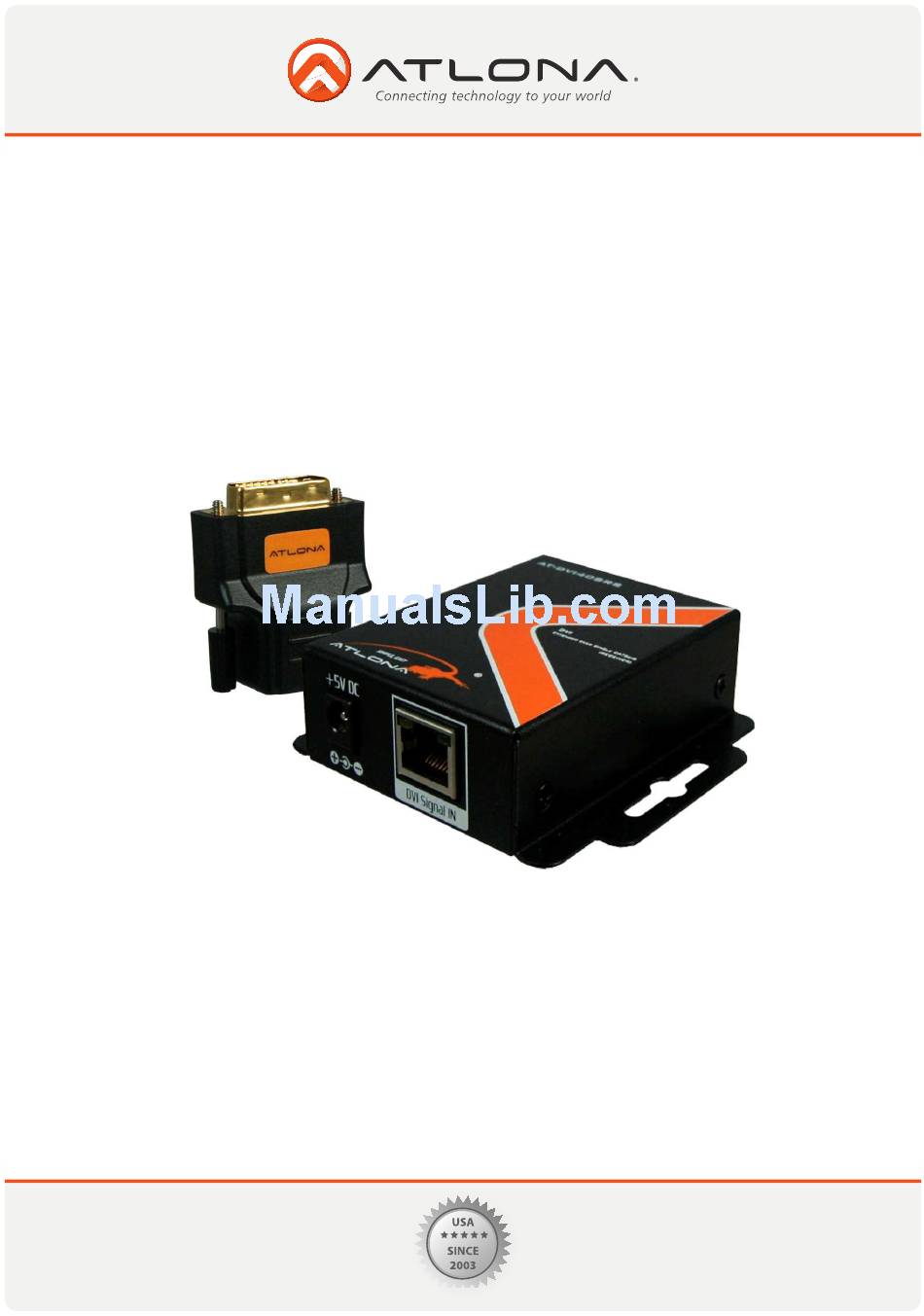

- Page 1 1080p DVI Extender over Single CAT5 up to 200ft AT-DVI40SRS User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel Description 5.1. Front Panel 5.2. Rear Panel 6. Connection and Operation 7. Performance Guide 8. Safety Information 9. Warranty 10. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

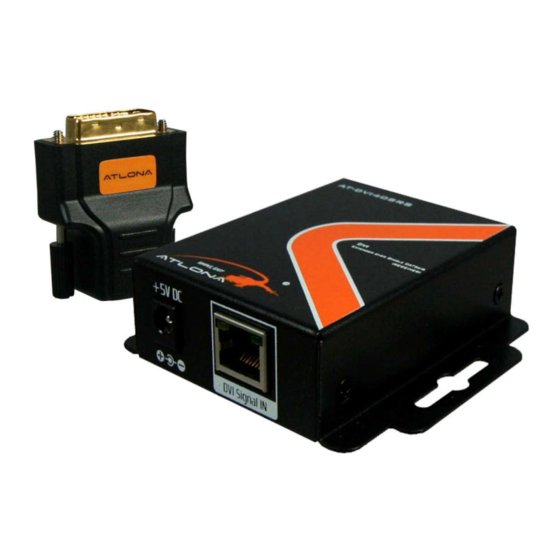

INTRODUCTION The AT-DVI40SRS 1080p DVI Extender over Single CAT5 extends your PC DVI transmission distance up to 60m (200ft) at 1024x768@60Hz. With AT-DVI40SRS, users can transmit high quality digital video of PC applications through one cost effective Cat5/5e/6 cables to the remote monitor or projector, instead of using short and expensive DVI cables. -
Page 4: Specifications
550g [1.2 lbs] Fixedness Direct plug-in Wall-mounting with screws Power supply None 5V DC Power consumption 1 Watt [max] Operation temperature 0~40 C [32~104 Storage temperature -20~60 C [-4~140 Relative humidity 20~90% RH [no condensation] Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Panel Description
4. Unplug the male-male DVI cable from the mini-transmitter and reconnect it to the monitor. Connect the mini-transmitter of AT-DVI40SRS to the DVI source and enjoy the visual experience. 5. To restore the EDID back to default value, please turn Signal Level clockwise [ ] from anywhere to 6. -
Page 6: Connection And Operation
PERFORMANCE GUIDE Performance rating Type of category cable Wiring Shielding CAT5 CAT5e CAT6 Solid Unshielded (UTP) **** ***** Shielded (STP) **** Stranded Unshielded (UTP) Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Safety Information
It may also cause damage to your AT- DVI40SRS. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 8: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 9: 10. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
