Atlona AT-DVI40SRS  User Manual

Dvi over cat5e extender
Hide thumbs Also See for AT-DVI40SRS :
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
AtlonA
DVI OVER CAT5e EXTENDER

AT-DVI40SRS

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-DVI40SRS  and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-DVI40SRS

Summary of Contents for Atlona AT-DVI40SRS

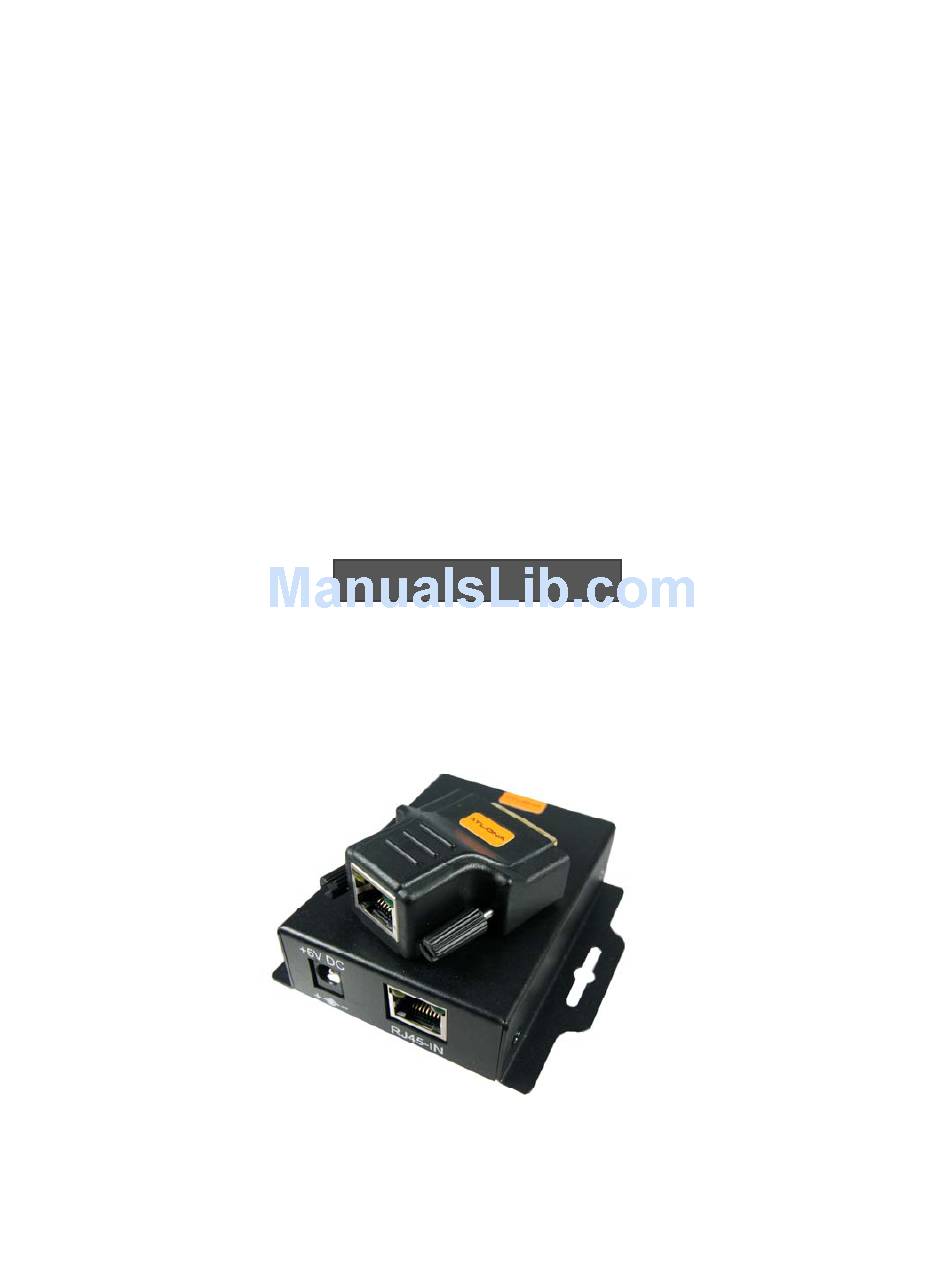

  • Page 1 AtlonA DVI OVER CAT5e EXTENDER   AT-DVI40SRS   User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS   1. Introduction ………………………………………… 1     2. Features ………………………………………… 1   3. Package Contents ………………………………………… 2   4. Technical Specifications ……………………………… 2     5. Panel Descriptions ……………………………… 3   6. Hardware Installation ………………………………………… 4    ...

  • Page 3: Introduction

    INTRODUCTION The AT-DVI40SRS extends your PC DVI transmission distance up to 60m/200ft with resolution 1024x768 @60Hz. With AT-DVI40SRS, users can transmit high quality digital video of PC applications through one cost effective CAT-5/5e to the remote monitor or projector, instead of using short and expensive DVI cables. With embedded EDID inside the adapter, your PC will continue to send the digital video even when the monitor is not connected.

  • Page 4: Package Contents

    PACKAGE CONTENTS ∙ 1x DVI CAT5e Mini-Transmitter ∙ 1x DVI CAT5e Receiver ∙ 1x 5V power adapter ∙ 1x User Manual TECHNICAL SPECIFICATIONS ∙ Video Bandwidth：1.65 Gbps (DVI 1.1) ∙ Input TMDS signal：1.2 volts (peak-to-peak) ∙ Input DDC signal：5 volts (peak-to-peak) ∙...

  • Page 5: Panel Descriptions

    PANEL DESCRIPTIONS FRONT VIEW – RECEIVING UNIT DVI OUT DVI Out：Connect a DVI display with a DVI M-M cable to this port. Rotary switch：Adjust the equalization strength to the received TMDS signals. 0-7= strongest – weakest. REAR VIEW – TRANSMITTING UNIT 5V DC TMDS TMDS：Plug in a CAT-5/5e/6 cable, linked to the TMDS connector of the...

  • Page 6: Hardware Installation

    HARDWARE INSTALLATION 1. Connect the mini-transmitter to your DVI source (PC). 2. Connect the receiver to the remote DVI equipped monitor. 3. Make sure your CAT-5/5e/6 cable is tightly connected and not loose. 4. Enjoy your high quality PC video on the screen. NOTICE The AT-DVI40SRS DVI over CAT5e Extender has been tested for conformity to safety regulations and requirements in the US, and has been certified for international use.
  • Page 7 1. If you need to modify EDID content in DVI Extender, you can use EDID Reader/Writer to update DVI EDID information. 2. To reduce the interference among the unshielded twisted pairs of wires in CAT- 5/5e/6 cable, you can use shielded CAT-5/5e/6 cables to improve EMI problems, which is worsen in long transmissions.

  • Page 8: Safety Information

    Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.

  • Page 9: Warranty

      LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
