Atlona AT-HD19SS User Manual
1x9 hdmi splitter with cat5 outputs
Hide thumbs
Also See for AT-HD19SS:
- User manual (8 pages) ,
- User manual (11 pages) ,
- User manual (12 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-HD19SS
Summary of Contents for Atlona AT-HD19SS

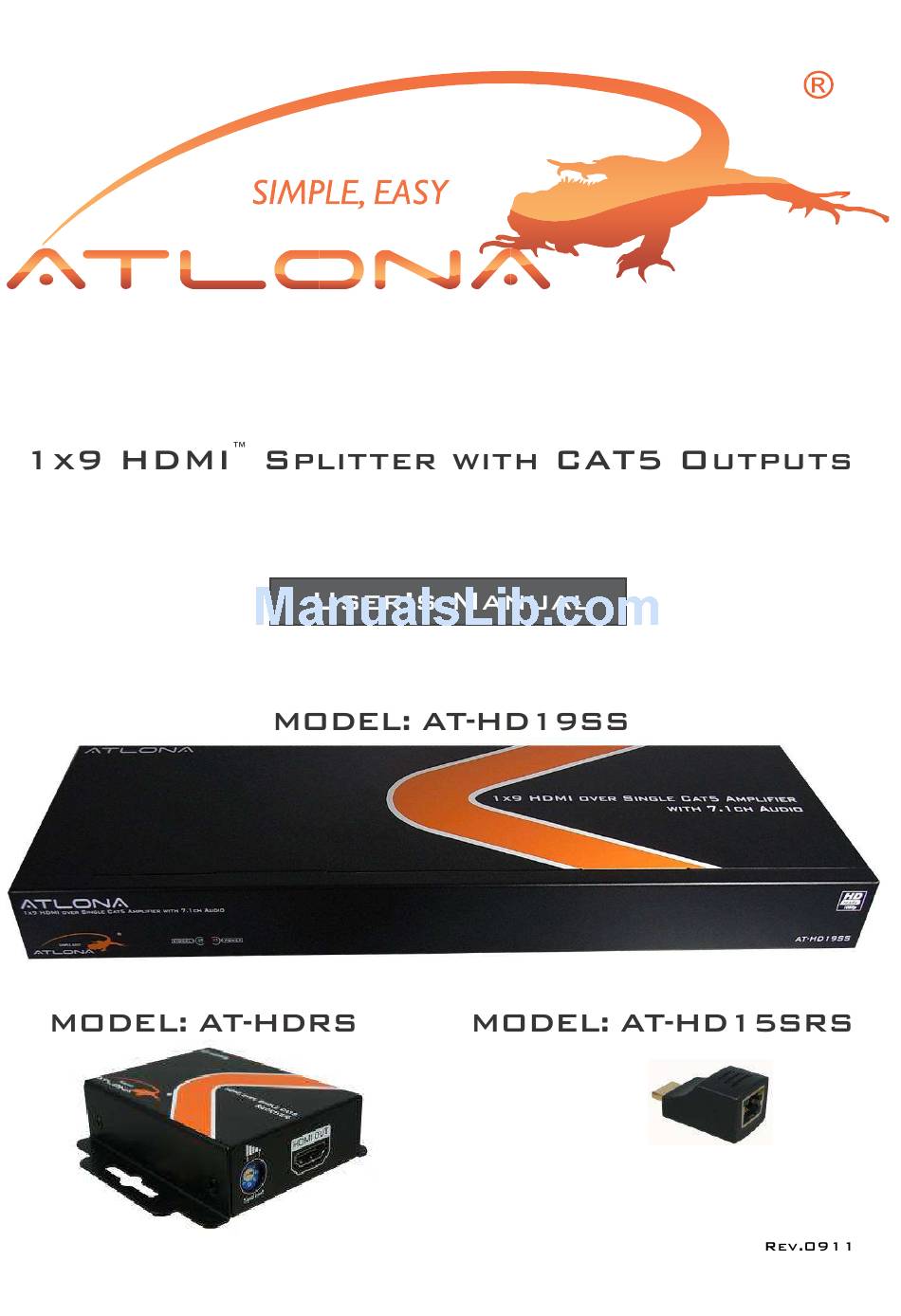

- Page 1 AtlonA...
- Page 2 ................ 4. Specifications ................ 5. Panel Description ................ 6. Installation ............... 7. Audio/Video Setting & EDID Learning ............6 8. Notice ............... 9. Performance Guide ............... 10. Safety Information ................ 11. Warranty ................. 9 12. Atlona Product Registration ..............10...
- Page 3 9 or more displays using just single Cat5 or Cat6 cable for each ™ display. The Atlona splitter has 8 x RJ45 (Cat5/Cat6), one for each display and 1 x HDMI output to be used for local monitoring or a loop-out for cascading multiple splitters. AT-HD19SS is capable of HDTV resolutions up to: 1080p@130ft and 1080i@200ft.
- Page 4 The length depends on the characteristics and quality of the cables. Higher resolutions and longer transmission distances require low skew cables (<25ns/100m) for best performance. 1x AT-HD19SS unit 2x Rack-mounting ears 1x 5V DC power supply unit 1x User's manual...
- Page 5 0.5 Watt [max] Operation temperature 0~40 C [32~104 F] Storage temperature -20~60 C [-4~140 F] Relative humidity 20~90% RH [no condensation] 1x AT-HD19SS 1x AT-HDRS 2x Rack-mounting ear 2x Wall-mounting screw 1x AT-HD15SRS Package Contents 1x 5V power supply unit...
- Page 6 3. HDMI OUT: Connect to a HDMI display here for local monitoring or cascade to another ™ HDMI splitter such as AT-HD14SS or AT-HD19SS ™ 4. MODE: 0 = [Video] – supports up to HDMI 1.3 output. [Audio] – supports up to 7.1ch output ™...
- Page 7 8 remote displays and one local display 1. Switch off all devices, including monitors. ™ 2. Connect a local HDMI display to the HDMI OUT port of the AT-HD19SS ™ 3. Connect the HDMI source such as a Blu-ray Disc player to the HDMI IN port.
- Page 8 Step 1 – Please connect the display which you want to read EDID with a HDMI cable to the HDMI OUT port of the AT-HD19SS and set the rotary arrow at Mode 7 so the AT- HD19SS can learn the EDID information from the connected display. The green LED SIGNAL on the front panel will dim and light again in a few seconds, which indicates the EDID learning procedure is complete.
- Page 9 1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from 7 to 0 and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2.
- Page 10 Attempting to do so could expose you to Precautions dangerous electrical shock or other hazards. It may also cause damage to your AT-HD19SS. FCC Regulations state that any unauthorized Opening the product will void the warranty. changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this...
- Page 11 Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt.
- Page 12 At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
