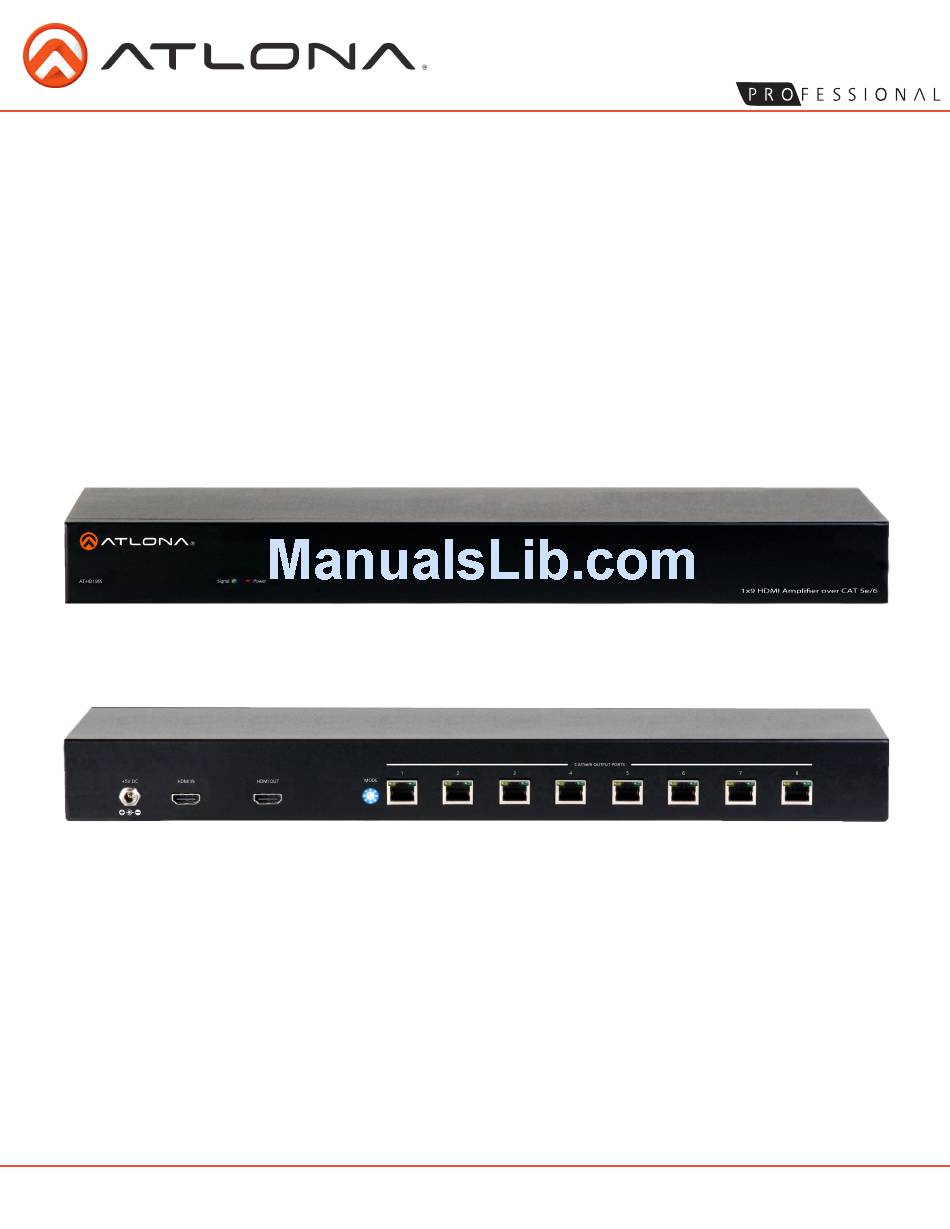

Atlona 1 by 9 HDMI Amplifier over CAT5e/6 AT-HD19SS User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
Front Panel .................... 4 b. Rear Panel .................... 4 6. CAT5e/6/7 Termination .................... 4 7. Connection and Installation .................... 5 8. Safety Information .................... 6 9. Warranty .................... 7 10. Atlona Product Registration .................... 8 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona 1 by 9 HDMI Amplifier over CAT5e/6/7 is the perfect solution for those who want to display a single source on 9 or more displays using just a single Cat5e/6/7 cable for each display. The Atlona amplifier has 8 Cat5e/6/7 ports, one for each display and 1 HDMI loop out to be used for an in zone display or cascading with another AT-HD19SS. -
Page 4: Panel Description
1. +5VDC: Connect included 5V DC power supply here 2. HDMI IN: Connect HDMI or DVI source here 3. HDMI OUT: Loop out for in zone display or cascading with another AT-HD19SS. 4. Mode: Change the setting to optimize EDID. -
Page 5: Connection And Installation
Connection and Installation BluRay Player AT-HDRS AT-HD15SRS HDTV HDTV HDTV Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD19SS. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 7: Warranty
Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
