Summary of Contents for Atlona AT-HD14SS

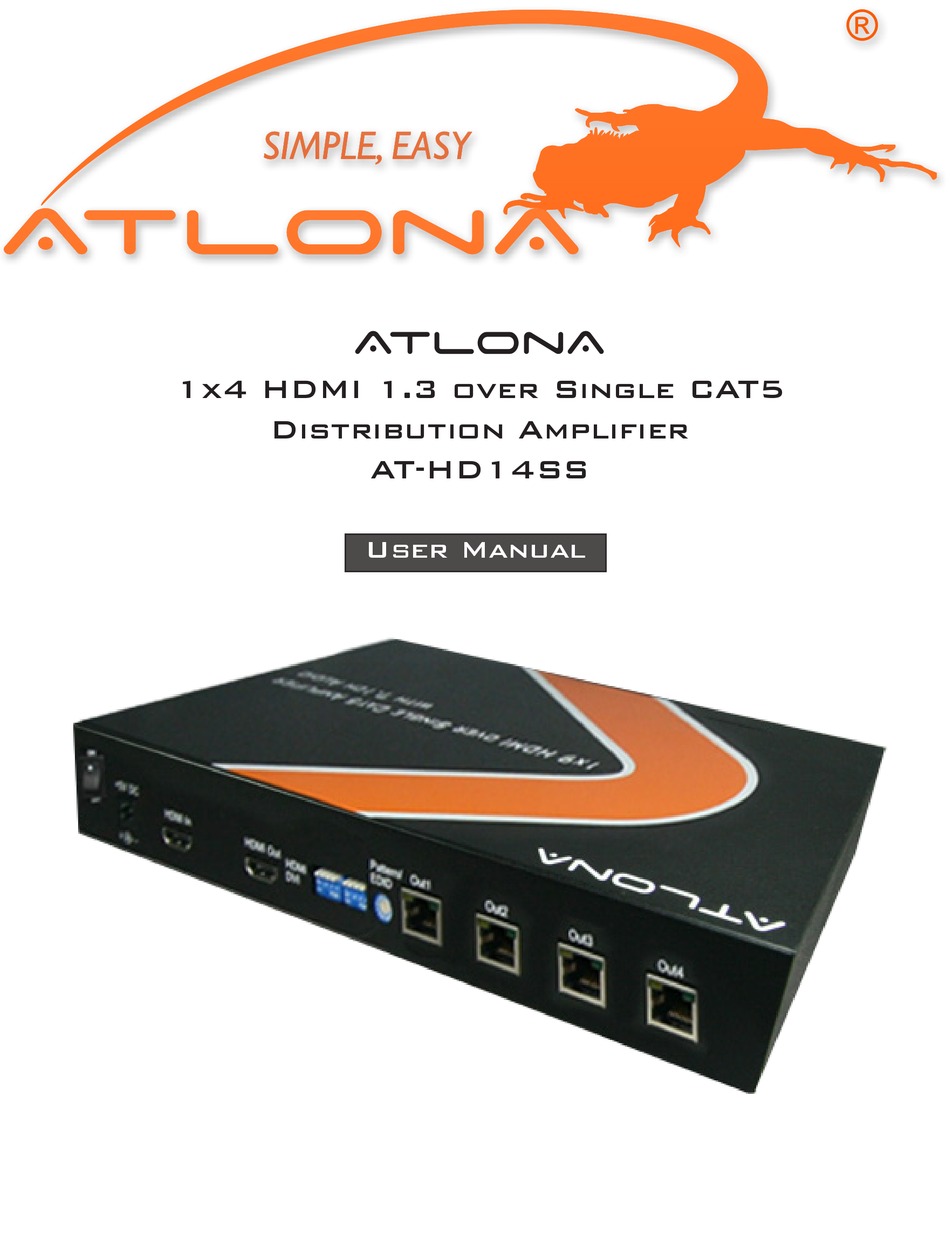

- Page 1 AtlonA 1x4 HDMI 1.3 over Single CAT5 Distribution Amplifier AT-HD14SS User Manual...
-
Page 2: Table Of Contents
..........3. Specification ..........4. Package Contents ..........5. Connection Diagram ..........6. DIP Switch ..........7. HDMI Pin Definition ..........8. Hardware Installation ..........9. Notice ..........10. Safety Information ..........11. Warranty ..........12. Atlona Product Registration .......... -
Page 3: Introduction
4 HDMI enabled displays through cost effective Cat-5/6 cables and RJ-45 to HDMI mini- extenders (AT-HD15SRS) or long range receivers (AT-HDRS). The built-in re-clocking technology allows users to connect long distance cables up to 66ft to the input of the Atlona 1x4 splitter. FEATURES: •... -
Page 4: Specification
SPECIFICATIONS Model Name AT-HD14SS AT-HDRS AT-HD15SRS Technical Role of usage 1x4 Distribution Amplifier Receiver [long range] Receiver [short range] Transmitter HDMI compliance HDMI 1.3c HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60... -
Page 5: Package Contents
PACKAGE CONTENTS: AT-HD14SS AT-HDRS AT-HD15SRS 1x AT-HD14SS 1x AT-HDRS 1x AT-HD15SRS 1x 5V power adapter 1x 5V power adapter 1x User Manual 1x User Manual 1x User Manual CONNECTION DIAGRAM AT-HD14SS HDMI Source HDMI Cable CAT5 cable up to 25m (80ft) -
Page 6: Dip Switch
DIP SWITCH Mode for EDID/Audio setting DIP Switch Position Video Audio Description Pin#1 Pin#2 Up to 1080p Stereo Default Mode – Up to 1080p & stereo audio output for most HDTVs Up to 720p / Stereo Safe Mode – Enforce the system output at 1080i 720p/1080i video and stereo audio for basic compatibility among HDTVs... -
Page 7: Hdmi Pin Definition
HDMI PIN DEFINITION Type A (Receptacle) HDMI HARDWARE INSTALLATION: Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+... -
Page 8: Notice
NOTICE 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI/HDMI EDID information. 2. All HDMI over CAT5/6 transmission distances are measured using Belden CAT5e 125MHz LAN cable and ASTRODESIGN Video Signal Generator VG-859C. 3. -
Page 9: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 10: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 11: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
