Atlona AT-HD50SS Specifications

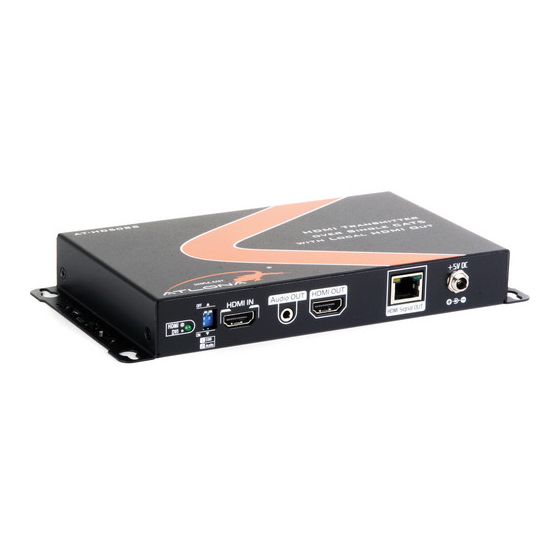

Atlona HDMI Extender over single Cat5/6 with local video output (Transmitter Unit)
Features:
• State-of-the-art Silicon Image (founder of HDMI) chipset embedded for greater compatibility and reliability
• HDMI 1.2a compliant
• HDCP compliant
• Regenerates the HDMI signal, so there is no signal loss
• Supports Analog and Digital Audio
• Supports default HDMI EDID and has the ability to learn the EDID of displays
• Extends up to 60m (200ft) (720p / 1080i) of output CAT5/6 cable
• Extends up to 40m (130ft) (1080p) of output CAT5/6 cable
• Minimize the cable skew by adjustable 8-level equalization control
• Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission
• Allows cascading
• Compatible with different receiver options: AT-HDRS and AT-HD50RSL
Technical Specifications:
• Video Bandwidth: 165MHz / 4.95Gbps
• Resolution Support: 480i / 480p / 720p / 1080i / 1080p60
• Transmission: 1080p-130ft CAT5e or CAT6 or 1080i/720p - 200ft CAT5e or CAT6
• Audio support: Surround sound (up to 7.1ch) or stereo digital audio
• Input DDC signal: 5 Volts
• HDMI connector: 19-pin
• DIP Switch: EDID selection and Learning functions
• Dimensions: 180 x 108 x 27mm [7"x4.3"x1.1"]
• Weight: 1 lb
• Power supply: 5V universal 110/220
Atlona
2151 O'toole Ave Unit D
San Jose, CA 95131
Tel: 408-954-8782
Fax: 408-954-8792
toll free: 1-877-536-3976
Compatible with:
www.AtlonA.com
Weight 1.00 lbs
SKU# AT-HD50SS
Rear View
Inputs/Outputs:
• Input: 1x HDMI
• Output: 1x HDMI, 1xAudio Female (for DVI Applica-
tions) and 1x LAN
Package Includes:
• 1x AT-HD50SS
• 1x 5V power adapter
• 1x User Manual
Warranty:
3 year manufacture warranty (parts and labor)
