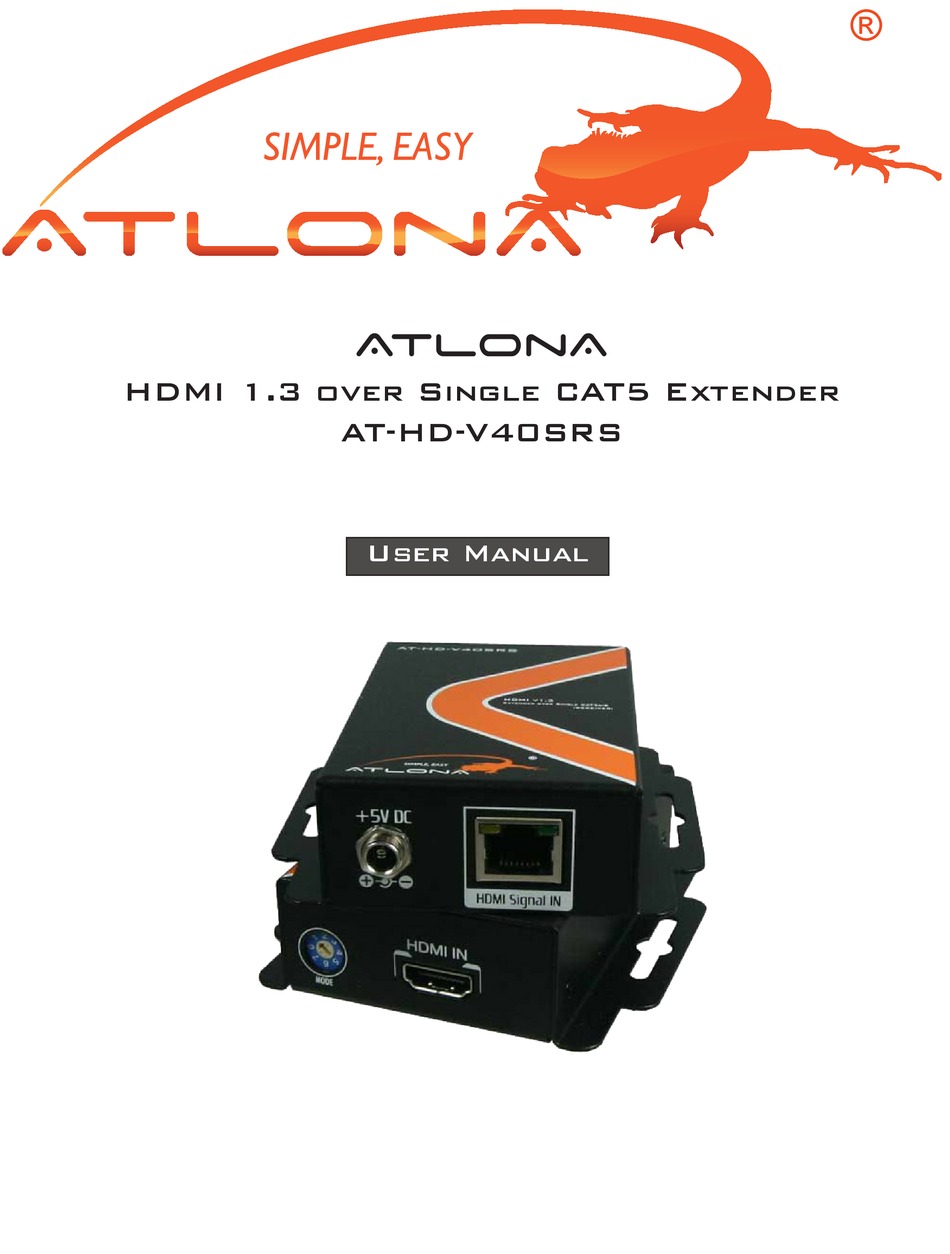

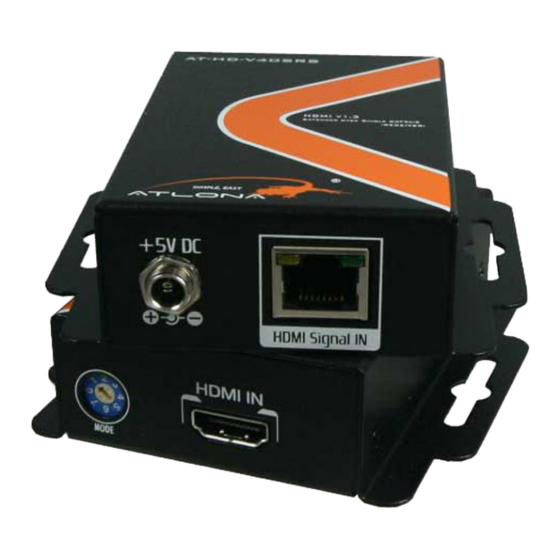

- Page 1 AtlonA HDMI 1.3 over Single CAT5 Extender AT-HD-V40SRS User Manual...
-
Page 2: Table Of Contents
4. Package Contents ..........5. Connection Diagram ..........6. Panel Descriptions ..........6.1. AT-HD-V40SS ..........6.2. AT-HD-V40RS ..........7. Hardware Installation ..........8. EDID Learning ..........9. Notice ..........10. Safety Information ..........11. Warranty ..........12. Atlona Product Registration .......... -
Page 3: Introduction
INTRODUCTION Atlona’s AT-HD-V40SRS HDMI 1.3 over Single CAT5 Extender boosts up your video/audio transmission distance up to 60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with 36 bit color depth. With only one cost effective LAN cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compli- ant with TMDS to distant display monitors including HDMI/DVI enabled TV sets or LCD PC monitors. -
Page 4: Specification
SPECIFICATIONS Technical AT-HD-V40SS AT-HD-V40RS Role of usage Sender Receiver HDMI compliance HDMI 1.3c HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 HDMI transmission over Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6] LAN cable [24-bit] HD (720p/1080i)-50m (165ft) [CAT5e] / 60m (200ft) [CAT6] Audio support... -
Page 5: Package Contents
PACKAGE CONTENTS: 1. 1xAT-HD-V40SRS [Sender/Receiver] 2. 1x 5V power adapter 3. 1x User Manual CONNECTION DIAGRAM AT-HD-V40SS HDMI Source Single CAT 5e AT-HD-V40RS HDMI Cable Single CAT 5e AT-DVI15SRS AT-HD15SRS HDMI Display HDMI Projector/Display DVI Projector/Display... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS AT-HD-V40SS Front Panel HDMI IN: Connects to an HDMI source with an HDMI Male-Male cable here MODE: 0 = [Video] – supports up to HDMI 1.3 output. [Audio] – supports up to 7.1ch output 1 = [Video] – supports up to HDMI 1.3 output. [Audio] – locks to stereo audio output 2 = [Video] –... -
Page 7: At-Hd-V40Rs
Rear Panel +5V DC: Connect to 5V DC power supply. HDMI Signal OUT: Plug in a CAT-5/5e/6 LAN cable that needs to be linked to the RJ-45 connector of the receiver unit AT-HD-V40RS. AT-HD-V40RS Front Panel HDMI OUT: Connect to a HDMI display with a HDMI Male-Male cable here. Signal Level: Adjust the 8-level equalization rotary control switch to the received HDMI signals. -
Page 8: Hardware Installation
The most important thing is don’t let the rotary arrow pass through mode 5 and Mode 6 which will erase the EDID just learned and restore to default EDID. 5. Unplug the HDMI cable from the display and follow the instruction in [Hardware Installation] to set up the AT-HD-V40SRS and enjoy the experience. -
Page 9: Notice
NOTICE 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI/HDMI EDID information. 2. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz LAN cable and ASTRODESIGN Video Signal Generator VG-859C. 3. -
Page 10: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 11: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 12: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
