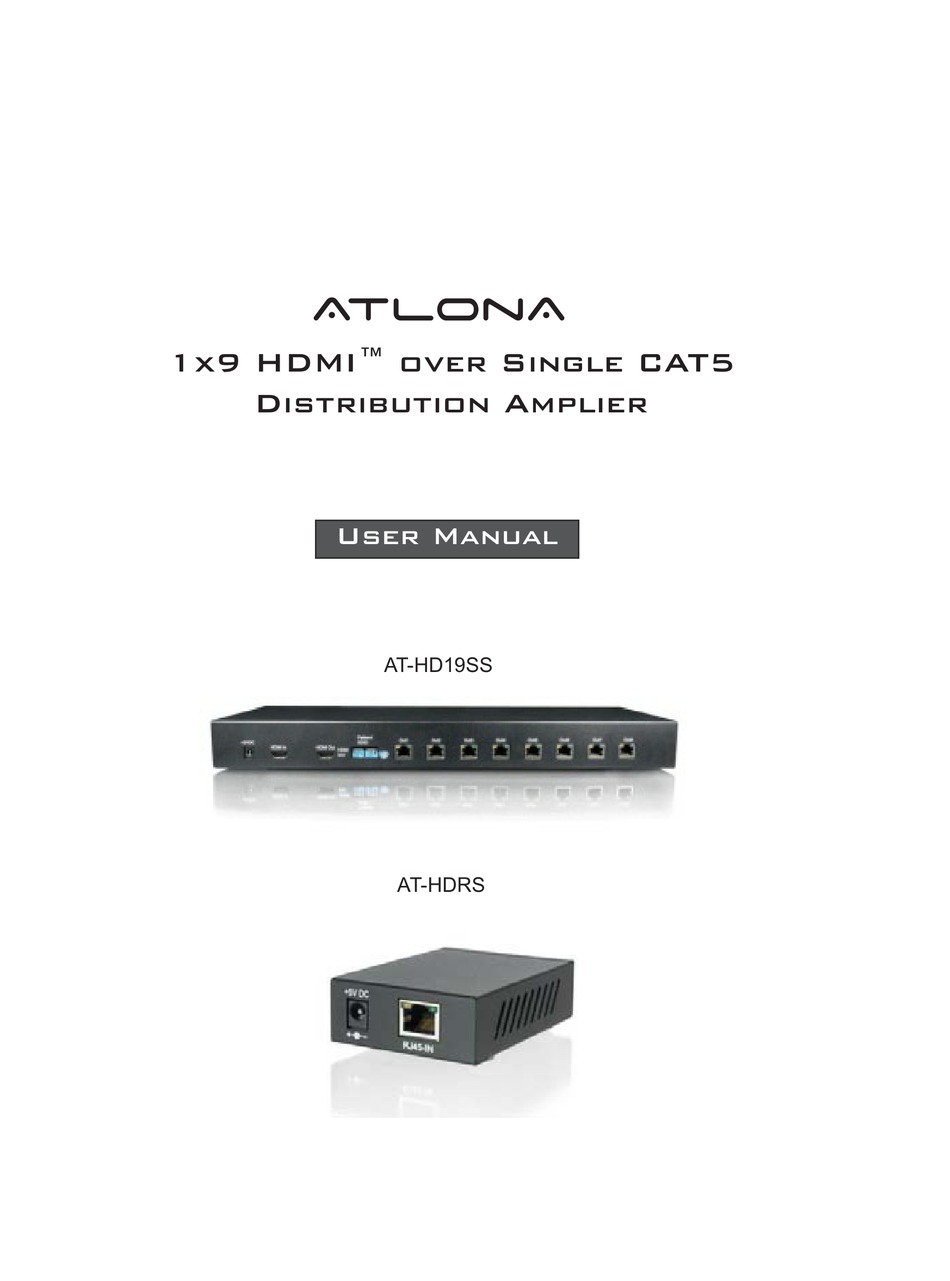

- Page 1 AtlonA 1x9 HDMI™ over Single CAT5 Distribution Amplier User Manual AT-HD19SS AT-HDRS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ............2. Diagram ............3. Features ............4. Technical Specications And Package Content ..... 5. Panel Descriptions ............6. Rotary Switch ............7. Hardware Installation ............8. Notice ............9. HDMI™ Pin Denition ............10. Safety Information ............ -
Page 3: Introduction
Introduction The HDMI™ over CAT5 Distribution Series provides the most flexible solution by which high definition video and high quality audio can be transmitted to different locations over a long distance. The devices are cascadable, allowing you to extend HDMI/DVI compliant displays to almost anywhere. DIAGRAM... -
Page 4: Features
Note: The length depends on the characteristics and quality of the cables. Higher resolutions and longer transmission distances require low skew cables (<25ns/100m) for best performance. Technical Specifications and Package Content Model Name AT-HD19SS AT-HDRS Package 1x AT-HD19SS 1x AT-HDRS Content 1x 5V power adapter 1x rack mount set 1 x User Manual Video 1.65Gbps... -
Page 5: Panel Descriptions

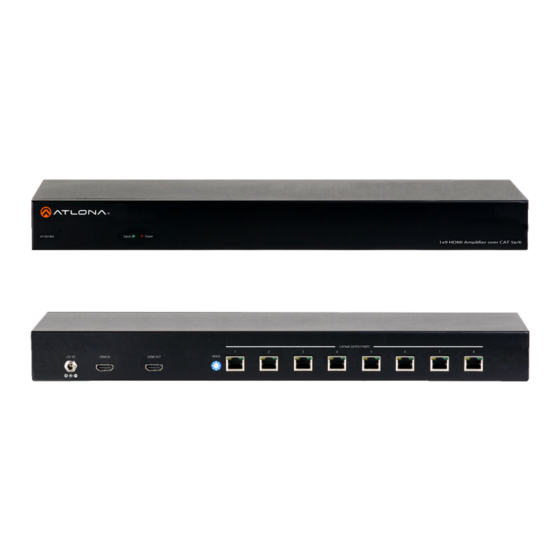

Panel Descriptions AT-HD19SS 1. Power jack 5V DC 2. HDMI™ Input: connect HDMI™ source here 3. HDMI™ Output: connect local HDMI™ display here or cascade it with another amplifier 4. DIP Switch: see the definition below 5. Rotary switch: see the definition below 6. -
Page 6: Rotary Switch
Rotary Switch The Rotary Switch on AT-HD19SS allows you to send several test patterns. VIDEO PATTERNS Rotary Switch Rotary 1: Stereo audio output Rotary 2: Running circles with increasing radius Rotary 3: White Running Circle with Black Background Rotary 4: Black Running Circle with White Background... - Page 7 Rotary E: Write default EDID (indicate by green LED) Rotary F: Save Monitor EDID (indicate by green LED) Atlona AT-HD19SS can support HDMI™ and DVI displays by configuring the DIP switch at right position DIP Switch: Up --- HDMI mode...
-
Page 8: Hardware Installation
Broadcasts HDMI™ signals to 8 remote displays and one local display 1. Switch off all devices, including monitors. 2. Connect a local HDMI™ display to the HDMI™ Out of the AT-HD19SS 3. Connect HDMI™ source (such as a Blu-ray Disc player) to the HDMI™ In. -
Page 9: Notice
Notice 1. If your DVI/HDMI device requires an EDID present, you can use EDID Reader/Writer to provide DVI/HDMI EDID information. 2. The transmission length is largely affected by the type of LAN Cat5/5e/6 cables, the type of A/V sources, and the type of A/V display. The testing result shows solid LAN cables (usually in 300m/1000ft form) can transmit signals a lot longer than stranded LAN cables (patch cord). -
Page 10: Hdmi Pin Denition
HDMI Pin Denition Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock- Pin 3 TMDS Data2- Pin 13 Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device) Pin 5 TMDS Data1 Shield Pin 15 Pin 6 TMDS Data1-... -
Page 11: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 12: Warranty
WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
