DVI over CAT5e Extender
AT-DVI40SRS
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-DVI40SRS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-DVI40SRS

Summary of Contents for Atlona AT-DVI40SRS

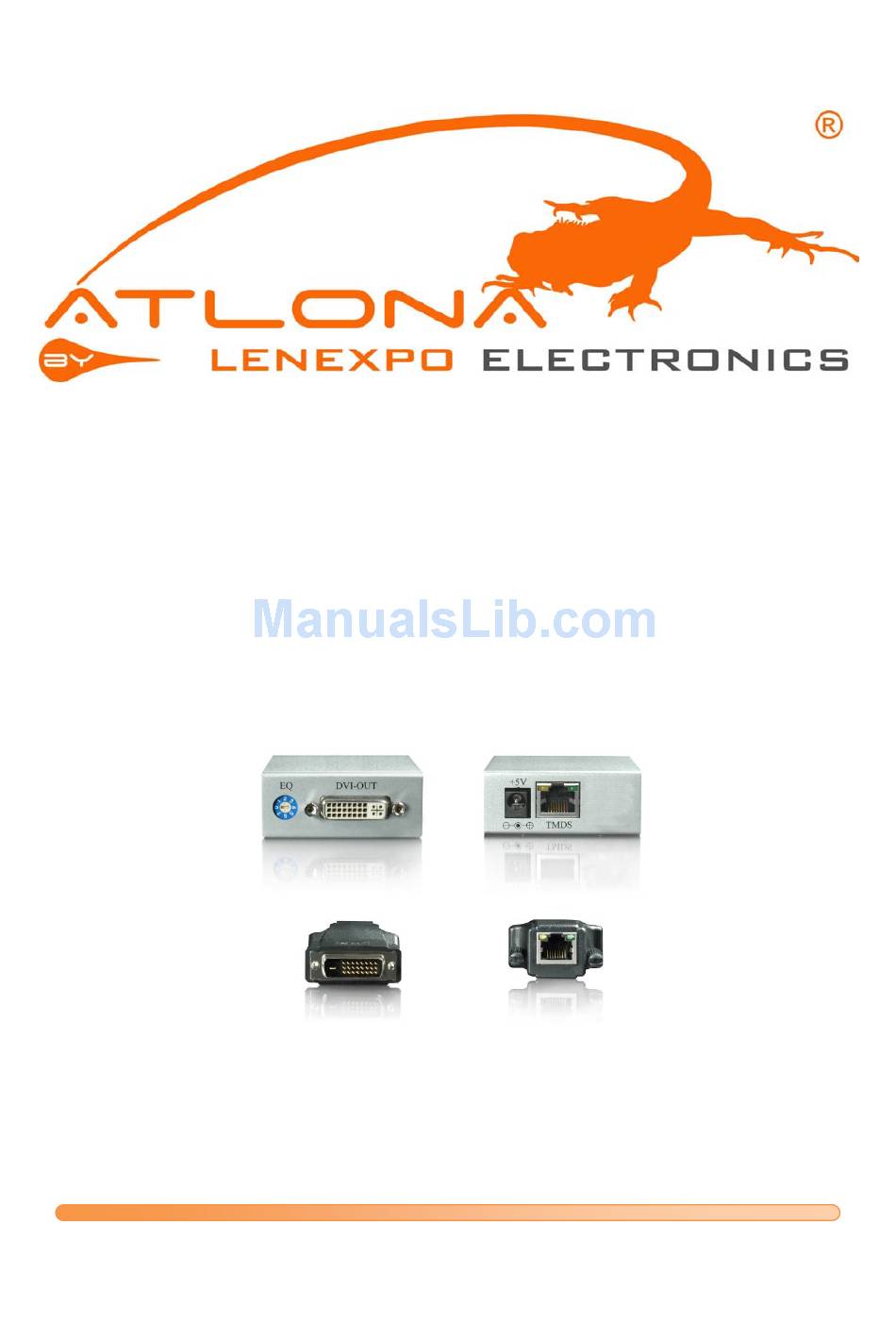

  • Page 1 DVI over CAT5e Extender AT-DVI40SRS User Manual...
  • Page 2 Safety and Notice The AT-DVI40SRS DVI over CAT5e Extender has been tested for conformity to safety regulations and requirements in the US, and has been certified for international use. However, like all electronic equipment, the AT-HDMI40SRS should be used with care.
  • Page 3 RJ-45 connector will blink. The transmission distance between the sending and receiving units can be up to 60m/200ft at XGA (1024x768) and 30m/100ft at UXGA (1600x1200). With compact size, AT-DVI40SRS is the most cost effective choice for bringing your impressive digital video to the remote display.

  • Page 4: Package Contents

    Package Contents 1x DVI CAT5e Mini-Transmitter 1x DVI CAT5e Receiver 1x 5V power adapter 1x User Manual Technical Specifications Video Bandwidth: 1.65 Gbps (DVI 1.1) Input TMDS signal: 1.2 volts (peak-to-peak) Input DDC signal: 5 volts (peak-to-peak) DVI-D Connector (digital only) RJ-45 Connector: 2 indication LEDs Dimensions: 70mm x 60mm x 25mm / 2.8"x2.4"x1"...
  • Page 5 Panel Descriptions Front View – Receiving Unit DVI OUT DVI Out: Connect a DVI display with a DVI M-M cable here. Rotary switch: Adjust the equalization strength to the received TMDS signals. 0-7= strongest – weakest. Rear View - Transmitting Unit 5V DC TMDS TMDS: Plug in a CAT-5/5e/6 cable that needs to be linked to the TMDS...
  • Page 6 Hardware Installation 1. Connect the mini-transmitter to your DVI source (PC). 2. Connect the receiver to the remote DVI equipped monitor. 3. Make sure your CAT-5/5e/6 cable is tightly connected and not loose. 4. Enjoy your high quality PC video on the screen. Notice If you need to modify EDID content in DVI Extender, you can use EDID Reader/Writer to update DVI EDID information.
