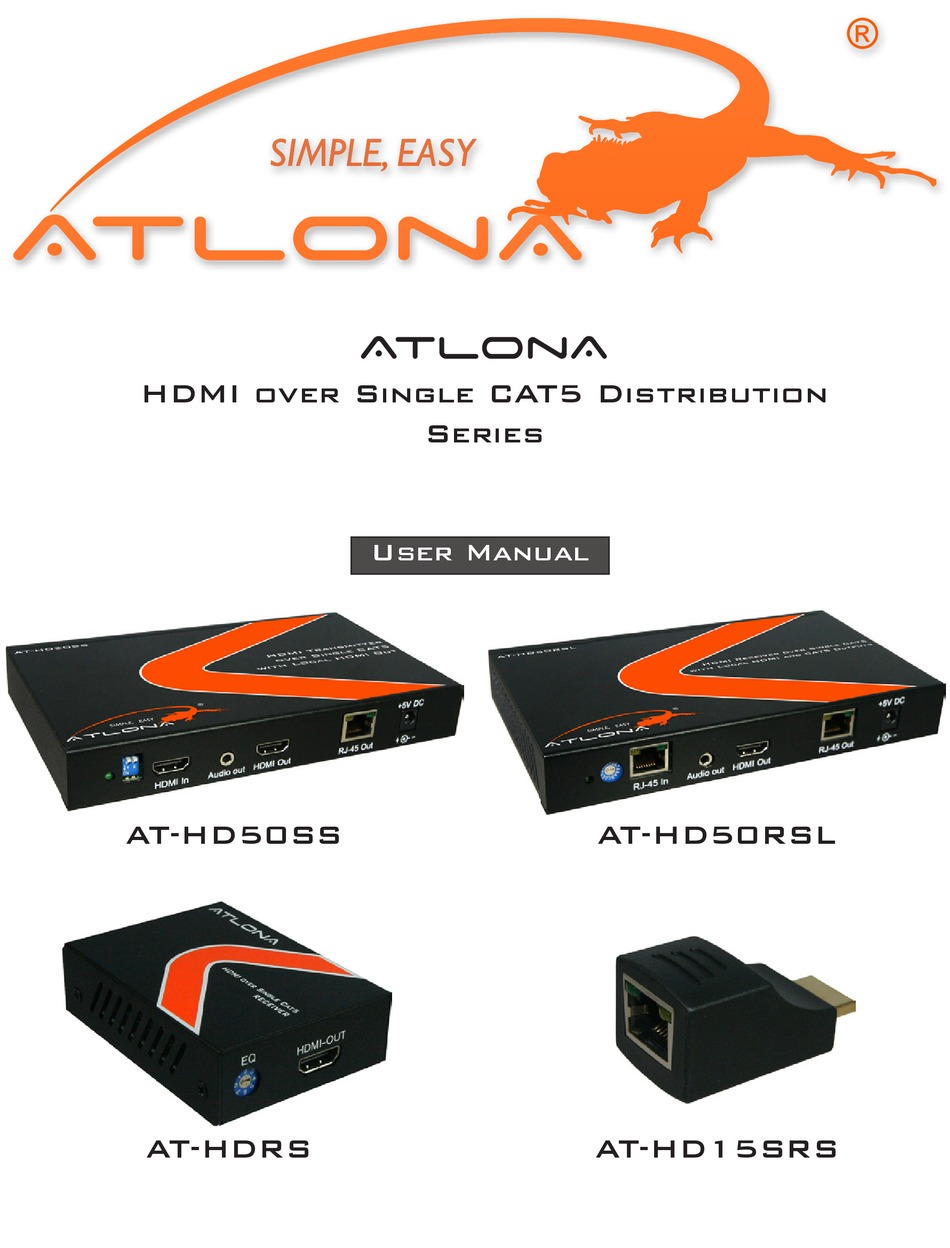

- Page 1 AtlonA HDMI over Single CAT5 Distribution Series User Manual AT-HD50SS AT-HD50RSL AT-HDRS AT-HD15SRS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..................... 2. Features ........................2 3. Technical Specifications and Package Content ..........4. Panel Descriptions ..................... 5. Hardware Installation ..................... 6. HDMI Pin Definition ..................... 7. Performance Guide for HDMI over LAN Cable Transmission ......8. -
Page 3: Introduction
Introduction The Atlona HDMI over Single CAT5 Distribution Series provides the most flexible solution by which the high definition video and high quality audio can be transmitted to different locations over a long distance. The devices are cascadable, allowing you to extend HDMI/DVI compliant displays almost anywhere. -
Page 4: Features
Features • State-of-the-art Silicon Image (founder of HDMI) chipset embedded for upmost compatibility and reliability • HDMI 1.2a compliant • HDCP compliant • Regenerates the HDMI signal • Supports audio output • Supports default HDMI EDID and has the ability to learn the EDID of displays •... -
Page 5: Technical Specifications And Package Content
Power consumption 3 Watts [max] 0~40 o C [32~104 o F] Operation temperature -20~60 o C [-4~140 o F] Storage temperature Relative humidity 20~90% RH [no condensation] Package Contents 1x AT-HD50SS or AT-HD50RSL 1x 5V power adapter 1x User Manual... - Page 6 Technical Specifications and Package Content Model Name AT-HDRS AT-HD15SRS Technical Role of usage Receiver [long range] Receiver [short range] HDMI compliance HDMI 1.2a HDCP compliance Video bandwidth Single-link 165MHz [4.95Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 Transmission Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6] HD (720p/1080i)-50m (165ft) [CAT5e] / 60m (200ft) [CAT6]...
-

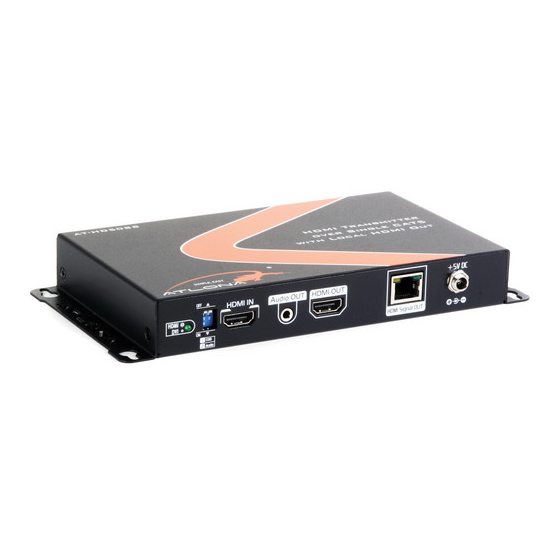

Page 7: Panel Descriptions
1. Don’t plug in HDMI cable to [HDMI In] when you want to restore default EDID or learn the display’s EDID. 2. Please connect the display which you want to read EDID to HDMI Out so the AT-HD50SS can learn the EDID information from the connected HDTV. - Page 8 (longest-to-shortest transmission length). It is recommended to adjust from 7-to-0 or from F-to-8 to find the optimal visual experience. 3. RJ-45 In: Link to AT-HD50RSL, or AT-HD50SS with a CAT-5e/6 cable 1 2 3 4. Audio out: Plug in a local speaker here 5.
-
Page 9: Hardware Installation
Extends HDMI signals to next cascading device with one local display 1. Switch off all devices, including monitors. 2. Connect a local HDMI display to the HDMI out of the AT-HD50SS and then connect a speak- er to the 3.5mm audio socket. - Page 10 4. Connect to next AT-HD50RSL (for cascading), to AT-HDRS (to HDTV at long range), or AT- HD15SRS (to HDTV at mid range) via RJ-45 out by a CAT5 cable. 5. Plug in 5V 4A DC power supply. 6. Power on the HDTV. AT-HD50SS CAT5 cable AT-HD50RSL Speaker...
-
Page 11: Hdmi Pin Definition
HDMI Pin Definition Notice Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 SCL Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 SDA Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11... -
Page 12: Performance Guide For Hdmi Over Lan Cable Transmission
Performance Guide for HDMI over LAN Cable Transmission Performance rating Type of LAN cable Wiring Shielding CAT5 CAT5e CAT6 Unshielded (UTP) iiii iiiii Solid Shielded (STP) iiii Unshielded (UTP) Stranded Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time... -
Page 13: Safety Informations
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 14: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
