- Page 1 AtlonA 1x4 HDMI HDMI HDMI HDMI 1.3 1.3 over over over over Single Single Single Single C C C C A A A A T5 T5/6 Distribution Distribution Amplifier Distribution Distribution Amplifier Amplifier Amplifier User’s Manual MODELS: AT-HD14SS [Rev.0911]...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ............ 1 2. Features ............ 1 3. Specification ............ 2 4. Package Contents ............ 3 5. Connection Diagram ............ 3 6. Panel Description ............ 4 7. Hardware Installation ............ 4 8. DIP Switch ............ 5 9. -
Page 3: Introduction
4 HDMI enabled displays through cost effective Cat-5/6 cables and RJ-45 to HDMI mini- extenders (AT-HD15SRS) or long range receivers (AT-HDRS). The built-in re-clocking technology allows users to connect long distance cables up to 66ft to the input of the Atlona 1x4 splitter. -
Page 4: Specification
SPECIFICATION Model Name AT-HD14SS AT-HDRS AT-HD15SRS Technical 1x4 Distribution Amplifier Receiver Receiver Role of usage Transmitter [TX] [long range RX] [short range RX] HDMI compliance HDMI 1.3c HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60... -
Page 5: Package Contents
PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS 1. 1x AT-HD14SS 2. 1x 5V power supply unit 3. 1x User's Manual CONNECTION DIAGRAM... -
Page 6: Panel Description

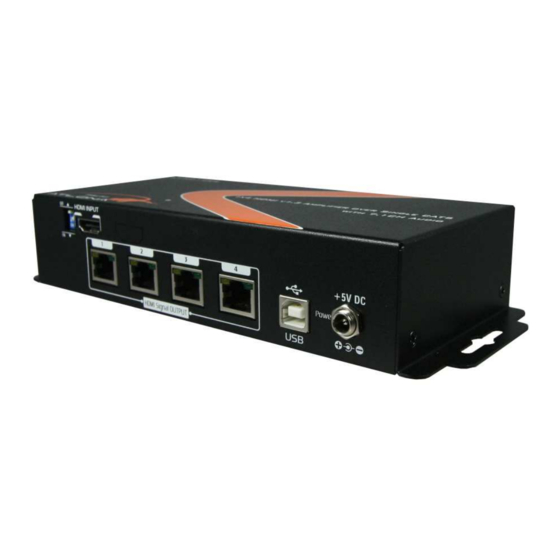

PANEL DESCRIPTION 1. DIP Switch: see more detail in the next section (p.5) 2. HDMI INPUT: Connect to one HDMI source here 3. HDMI Signal OUTPUT 1 – 4: Link to each HDMI display via a Cat-5/5e/6 cable with a HDMI over CAT5 receiver AT-HDRS or AT-HD15SRS 4. -
Page 7: Dip Switch
DIP SWITCH Mode for EDID/Audio setting DIP Switch Position Video Audio Description Pin-1 Pin-2 Default Mode – Up to 1080p & stereo audio output OFF [ ] OFF [ ] Up to 1080p Stereo for most HDTVs Safe Mode – Enforce the system output at Up to OFF [ ] ON [ ]... -
Page 8: Pin Definition
PIN DEFINITION Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11... -
Page 9: Notice
NOTICE 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide EDID information of the DVI or HDMI display or AV receiver. 2. All HDMI over CAT5 transmission distances are measured using Belden CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C. -
Page 10: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 11: Warranty
Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 12: Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
