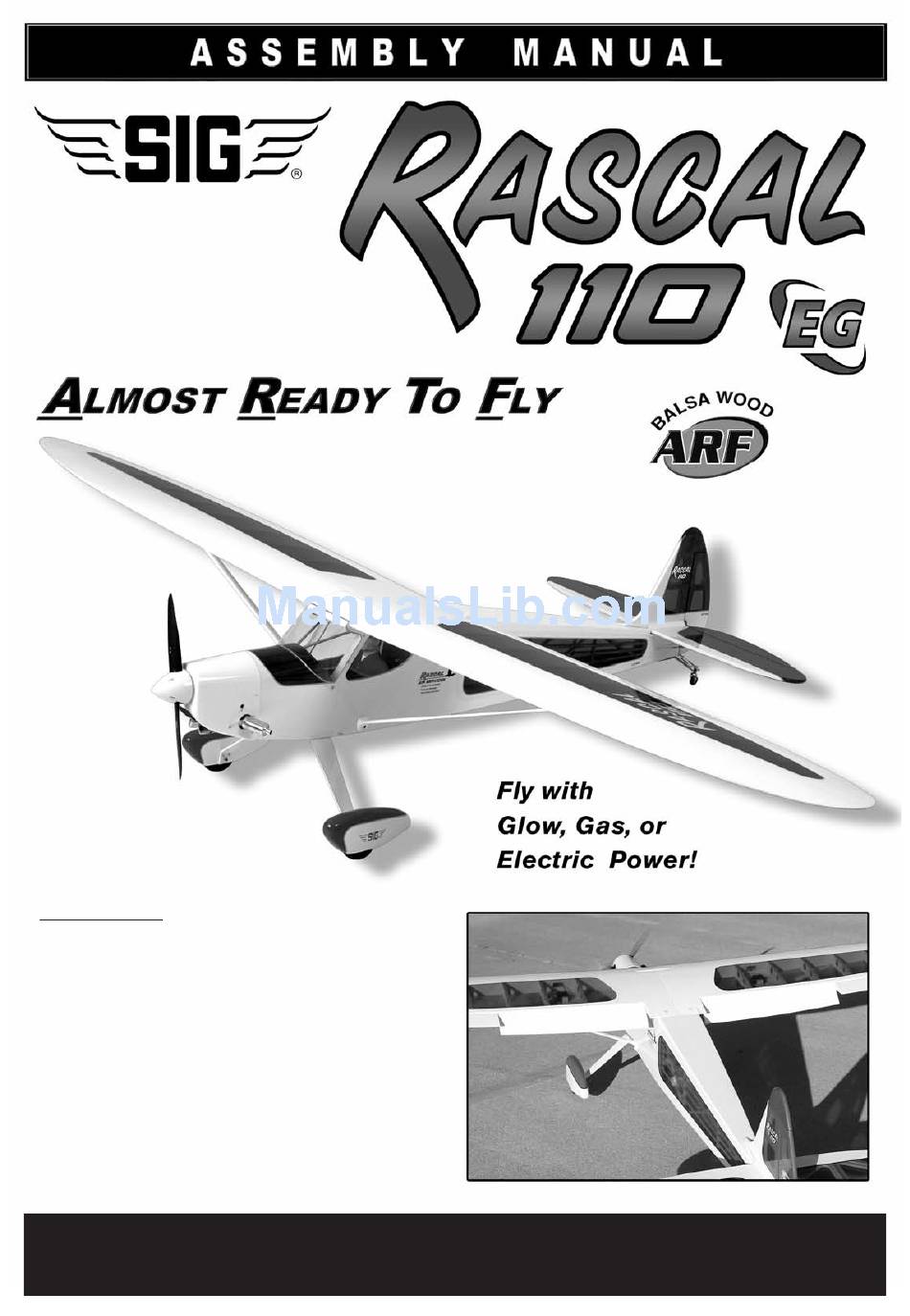

SIG RASCAL 110 EG ARF Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

KIT NO.:
SIGRC84EGVARFB -
SIGRC84EGVARFR -
SPECIFICATIONS:
Wing Span:
110 in.
Wing Area:
1522 sq. in.
Length:
75.75 in.
Flying Weight:
11 - 13 lbs.
Wing Loading:
17 - 20 oz./sq.ft.
Glow Power:
2-Stroke 1.2 - 1.5 cu. in.
4-Stroke 1.2 - 1.8 cu. in.
Gas Power:
1.2 - 1.8 cu.in.
Electric Power:
1600 - 2600 watt (200-270 kv) Brushless Motor;
80-120A ESC; 8S-12S Lipo Battery Pack
Radio Required:
for Glow or Gas:
5-Channel with 7 Heavy-Duty Servos
Ail(2), Elev(1), Rud(1), Thro(1), Flaps(2)
for Electric:
5-Channel with 6 Heavy-Duty Servos
Ail(2), Elev(1), Rud(1), Flaps(2)
SIG MFG. CO., INC.
(White / Trans Blue)
(White / Trans Red)
(2794 mm)
(98.2 dm
2
)
(1924 mm)
(4990 - 5897 g)
(51 - 60 g/dm
2
)
(20 - 25 cc)
(20 - 30 cc)
(20 - 30 cc)
PO Box 520
www.sigmfg.com
Montezuma, IA 50171-0520
© Copyright 2014, SIG Mfg. Co., Inc.
