Summary of Contents for EverFocus TUTIS-16F3

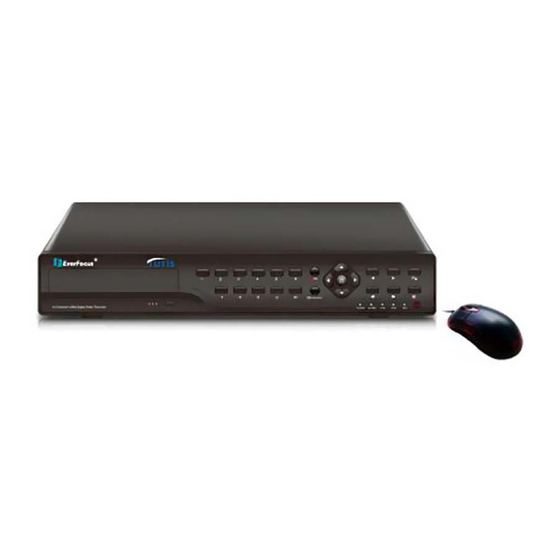

- Page 1 TUTIS Series DVR H.264, 4CH / 8CH / 16CH User’s Manual TUTIS-16F3 TUTIS-4F3 / TUTIS-8F3 Copyright © EverFocus Electronics Corp, Release Date: November, 2012...
- Page 2 2012 EverFocus Electronics Corp www.everfocus.com All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the Everfocus Electronics Corporation. Release Date: November, 2012...
- Page 3 Notes: 1. The power supply of this DVR is provided through DC 12V adapter, please check the power output before installation and ensure it can meet the requirements. 2. Do not place the DVR at a place subject to rain and moisture. 3.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction ........................1 1.1 Features .......................... 2 1.2 Packing List ........................3 Overview ..........................4 2.1 Front Panel ........................4 2.2 Rear Panel ........................6 2.3 Terminal Block ........................ 8 Installation ..........................9 3.1 Basic Installation ......................9 3.2 HDD Installation...................... - Page 5 7.2.1 Installing ActiveX Controls ................52 7.2.2 Enabling ActiveX Controls ................53 7.3 Remote Live View ......................55 7.3.1 Remote Playback ....................56 7.3.2 Remote Archive ....................567 7.3.3 Playing Back Recordings from the Computer ..........588 7.3.4 DVR Configuration ..................599 Specifications ........................
-
Page 6: Introduction
(OSD) controls; or connect the DVR to the network to launch the Web configuration interface. The following diagram is an example of using the TUTIS-16F3 (16CH) model. The Rear Panels vary among models. -
Page 7: Features
TUTIS Series DVR 1.1 Features H.264 Video compression format D1, HD1 and CIF recording for all the 4CH / 8CH / 16CH models Network transmission and playback simultaneously Dual‐stream transmission for all channels Multiplex operation: live, record, playback, backup, network transmission and mobile surveillance Support backup with USB storage device / DVD burner (only for the 16CH model) Support SATA HDD TUTIS‐4F3 / 8F3: 1 HDD up to 2TB TUTIS‐16F3: 2 HDDs up to 4TB Support video outputs TUTIS‐4F3 / 8F3: BNC x 1 / VGA x 1 TUTIS‐16F3: BNC x 1 / Spot monitor (BNC) x 1 / VGA x 1 / HDMI x 1 Support Multi‐language OSD Two‐way audio (only for 16CH model) E‐mail alarm, digital zoom and PIP preview Mobile phone surveillance (Apple / Android devices) Remote Playback / Archive Recordings ... -
Page 8: Packing List
Note: Contact the shipper if any items appear to have been damaged in the shipping process. If any items are missing, notify your EverFocus Electronics Corp. Sales Representative or Customer Service Branch. Please also keep the shipping carton for possible future use. -
Page 9: Overview
TUTIS Series DVR Chapter 2. Overview 2.1 Front Panel 4CH / 8CH 10 11 12 16CH No. Name Description Playback Press to play back the recordings. Step Back Press to step back the recordings. Search / Stop Press to search or stop playing back the recordings. Step Forward Press to step forward the recordings. - Page 10 TUTIS Series DVR Press to start recording. The LED will turn ON when the DVR is Record recording. Please refer to 4.1.1 Record. Arrow Keys Press to control the connected PTZ cameras. Enter / PTZ Press to enter the PTZ control settings. Control Menu / Exit Press to enter or exit menu.
-
Page 11: Rear Panel
TUTIS Series DVR 2.2 Rear Panel 、 、 10 11 16CH 、... - Page 12 USB Interface firmware upgrades. Use the other port for connecting the mouse. Network Port Connects to the Network. Connects to the PTZ cameras or RS-485 device, such as EverFocus’ RS-485 EKB-500 keyboard. Power Input Connects to the DC 12V power using the supplied Power Cord.
-
Page 13: Terminal Block
TUTIS Series DVR 2.3 Terminal Block (+) (-) Alarm out Power out Sensor in RS-485 (+) (-) Alarm out Power out Sensor in RS-485 16CH RS-485 Alarm out Power out (+) (-) (+) (-) RS-485 Sensor in... -
Page 14: Installation
TUTIS Series DVR Chapter 3. Installation 3.1 Basic Installation 1. Connect the line level audio input devices to the DVR. 2. Connect the cameras to the DVR using the coaxial cables. 3. To manage the DVR over network, use a standard RJ-45 cable to connect the DVR to the network. -
Page 15: Hdd Installation
TUTIS Series DVR 3.2 HDD Installation 1. Make sure the DVR is power-off. 2. Unscrew the housing screws on both sides and the back panel, and then remove the housing. a. For 4CH and 8CH models: Unscrew the 7 housing screws on both sides and back panel. b. - Page 16 TUTIS Series DVR (b) 16CH DVR (1) Unscrew both sides of HDD brackets from the DVR. (2) Screw both sides of the HDDs on the brackets, and then fix them on the DVR. 4. Use the supplied SATA cable, connect one end to the SATA port on the small PCB inside the DVR, and the other end to the SATA port on the HDD.
- Page 17 TUTIS Series DVR 5. Connect the internal power cable to the HDD. 6. Screw back the housing to the DVR. 7. Format the hard disk drive after the installation is completed.
-
Page 18: Power On And Login
TUTIS Series DVR 3.3 Power On and Login After the above installation, you can power on the DVR. Simply plug one end of the Power Cord to the Power-In port on the rear panel of the DVR, and the other end to the power outlet. -
Page 19: Osd Menu Operation
TUTIS Series DVR Chapter OSD Menu Operation The DVR can be configured through a series of menus on the screen by using a Mouse, front panel buttons or the supplied IR Remote Control. The following operations are examples of using a Mouse. -
Page 20: Main Menu
TUTIS Series DVR 4.1 Main Menu On the OSD Root Menu, click Main Menu, the following configuration menu with 9 setup options appears. 4.1.1 Record The Record Menu includes 3 tabs: Basic, Advanced and Recording Schedule. Please refer to sections below for configurations. 4.1.1.1 Basic 【Video Channel】：Select a channel. - Page 21 TUTIS Series DVR 【Quality】：Select a recording quality (lowest, low, normal, high, and highest). 【Frame Rate】 ：Select a recording FPS (frames per second). NTSC: 2, 6, 15, 30. PAL: 2, 6, 12 and 【Audio】: Select channels for enabling audio recording function. 【Copy To】：Select a channel or all channels to be applied with the above settings.
- Page 22 TUTIS Series DVR 4.1.1.3 Schedule You can set up a weekly recording schedule in this menu. To set up a weekly recording schedule: 1. Select a channel or all channels from the Channel drop-down list. 2. To apply a recording type (Off / Schedule / Alarm / Schedule & Alarm) to the time bar, check a desired recording type, move the mouse cursor on the desired time block and then click.
-
Page 23: Alarm
TUTIS Series DVR 4.1.2 Alarm In the Alarm Menu, you can configure the Alarm Settings and Event Settings including Motion Detection, HDD Fail, Wrong Password and Video Loss. 4.1.2.1 Alarm In 【Alarm Channel】：Select an alarm channel. 【Sensor Type】：Select a wiring type of the alarm input: Normal Open or Normal Close. 【Actions】... - Page 24 TUTIS Series DVR 4.1.2.2 Motion 【Video Channel】：Select a video channel. 【Sensitivity】：Select a sensitivity value. 【MD Area】：Set up the motion detection area. Select Full Region to apply the motion detection function to the whole screen area. Select Partial Region can configure the desired regions for applying the motion detection function.
- Page 25 TUTIS Series DVR DISP-Video: Select a channel for displaying the channel in full-screen when an alarm is triggered. You can select to display the channel on the Main monitor or Spot monitor. The Spot monitor is only available for 16CH model. 【Event Duration】：Set up a delay time after an alarm is triggered.
- Page 26 TUTIS Series DVR 4.1.2.4 PASSWD You can configure the alarm settings for the DVR when entering wrong password. 【Password Actions】 Alarm Out: Select an alarm output channel for outputting the signal. Buzzer: Check the box to enable the buzzer when an alarm is triggered. E-Mail: Check the box to send email notification when an alarm is triggered.
- Page 27 TUTIS Series DVR 4.1.2.5 Video You can configure the alarm settings for video loss and suspicious events when the camera is thwarted by covering / sticking with an object. 【Video Loss Actions】 Alarm Out: Select an alarm output channel for outputting the signal. Buzzer: Check the box to enable the buzzer when an alarm is triggered.
-
Page 28: Channel
TUTIS Series DVR 4.1.3 Channel In this menu, you can set up the channel name, image quality and privacy zones for each channel. You can also set up the protocol, baud rate and the ID for the connected PTZ cameras. 【Video Channel】：Select a camera channel. - Page 29 TUTIS Series DVR Click the button to bring up the following Privacy Zone setup menu. To set up the privacy masks: 1. Select a channel and select Enable from the Privacy Zone drop-down list, the Area Setup options appears. 2. Select the number of masks you want to block on the camera view by checking the Area 1 ~ 4 boxes.
-
Page 30: Network
TUTIS Series DVR 4.1.4 Network The DVR allows you to use a Web browser to remotely view and manage the system. You can also receive live video streaming from the DVR using your smartphone. Note: Since every Network Configuration is different, please check with your Network Administrator or ISP to see if your DVR should use specific IP address and/or port numbers. - Page 31 TUTIS Series DVR 4.1.4.2 Advanced You can configure the Sub Stream settings in this menu. When the network is in low speed, the sub stream can reduce the image quality and frame rate to make the video transmission more smooth. 【Sub Stream】: Select On to enable the Sub Stream.
- Page 32 TUTIS Series DVR Email: Select On to enable the function. SMTP Port: Click to bring up the on-screen keyboard, and then set up the port number used by the SMTP server. SMTP Server: Click to bring up the on-screen keyboard, and then set up the SMTP (email) server’s name.
- Page 33 TUTIS Series DVR Note: We highly recommend that you use www.tutisddns.com for the simplicity of setting up your DVR. Go to http://www.tutisddns.com, enter a host name in the textbox, and then click the Check button. If the message shows “xxx is available”, you will be able to use this as the domain name of the DVR. Simply type http://xxx.tutisddns.com in the address field on a Web page, and you can remotely access the DVR. 【DNS】: Click to bring up the DNS Setup menu. DNS1 Setup: Click to bring up the on‐screen keyboard, and then set up the primary DNS server for your network. When DHCP is selected and in internet connection is available, this value will be assigned automatically. This field must be assigned correctly if you plan to use the DDNS feature. DNS2 Setup: Click to bring up the on‐screen keyboard, and then set up the secondary DNS server for your network. 【Mobile】: This port is used for mobile phone connection. The default Mobile Port is 6600. For Mobile Device Surveillance, please refer to Chapter 6, Mobile Device Surveillance. 【UPnP】 : When the UPnP on (the UPnP at the Router is also on). The host DVR will map the port to the router automatically. Note that if the router doesn’t support UPnP, please forward the ports from the port forwarding or virtual server. If the ports conflict with each other, please modify the ports on the DVR and restart it. 【PPPoE】: This is a DSL‐connection application (no router). The ISP will ask the user to input a username and password. Please contact your ISP for these details. The DVR provides one wired dial mode and two 3G dial modes (CDMA and WCDMA). If the 3G mode is connected, the IP address will be displayed in the WAN‐IP field (see 4.1.4.3 ViewNetInfo). ...
-
Page 34: User
TUTIS Series DVR 4.1.4.3 ViewNetInfo You can see the network information in this menu. No configuration can be done here. 【LAN-IP】: Displays the IP address through the LAN. 【WAN-IP】: Displays the IP address through the 3G network. This IP address can be displayed if you enabled CDMA or WCDMA in the PPPoE field. -
Page 35: System
TUTIS Series DVR 2. Click on the User Name, New Password and Password Again field to bring up the on-screen keyboard and then set up the settings. 3. To set up the user privileges for this user, click the Access button. The following menu with two tabs (Local and Network) appears. - Page 36 TUTIS Series DVR 4.1.6.2 Advanced Click on each field to bring up the on-screen keyboard for configuration. You can configure the language and scanning system (NTSC / PAL) in this menu. You can set up the Auto Lock to automatically lock the Main Menu in xxx seconds. To unlock, click Main Menu in the OSD Root Menu, the Login menu appears.
-
Page 37: Display
TUTIS Series DVR 4.1.6.4 Maintain This function is currently reserved. You can upgrade BIOS, System firmware or APP through the USB device; reset the DVR to factory default settings, delete system log or event log in this menu. For Default Setting, click the OK button to bring up the Reset To Factory menu, select the desired items and click the Apply button. -
Page 38: Log
TUTIS Series DVR 【Camera Loss】: Select Yes to enable the DVR to skip the Video Loss channels in the Sequence Mode. 【Resolution】: Select a resolution from the drop-down list. 【Alpha】: Turn the slide bar to the left or right to adjust the transparency for the OSD menu. 【Margin Setup】... -
Page 39: Record Search
TUTIS Series DVR 4.1.9 Record Search You can search the recordings by type or time and then play back the recordings. You can also back up the recordings to the USB or DVD disc. Note that only the 16CH model supports DVD burner. - Page 40 TUTIS Series DVR 5. Click the Play button to play back the selected recording. You can also optionally back up this recording to the USB storage device by clicking the BackUp button. For details on the playback bar, please refer to 4.1.9.2 Playback Bar. To Play Back the Recordings by Time: 1.
- Page 41 TUTIS Series DVR 4.1.9.2 Playback Bar You can playback, zoom in or turn on / off the audio on the Playback Bar. 2 3 4 5 6 7 8 9 10 No. Name Description Time Bar Slide the Time Bar to the left / right to seek the time position. Reverse Click to start reversing.
- Page 42 TUTIS Series DVR 4.1.9.3 Backing Up the Recordings You can back up the recordings to the USB or DVD disc. Note that only the 16CH model supports DVD burner. 1. Select a recording type from the By Type drop-down list. 2.
-
Page 43: Ptz Control
TUTIS Series DVR PTZ Control You can control the connected PTZ cameras using the PTZ Control Panel. Before controlling the PTZ cameras, you have to configure the PTZ settings on the DVR (see 4.1.3 Channel). To display the PTZ Control Panel, on the OSD Root Menu, click PTZ Control. PTZ Button Direction Buttons... - Page 44 TUTIS Series DVR Cruise Set: After setting up the preset positions, you can configure a Cruise function for the PTZ camera to turn to multiple preset positions automatically. To set up the Cruise: 1. Check the Effective boxes to select the desired Preset Positions, and then set up the stay time (in second) for each Preset Position.
-
Page 45: Digital Zoom
TUTIS Series DVR 4.3 Digital Zoom You can zoom in the camera in PIP (Picture-in-Picture) view and navigate the camera view by dragging the navigation box. This function can only functional in Single View. 1. On the OSD Root Menu, click Digital Zoom, the Zoom Mode displayed on the bottom of the screen. -
Page 46: Tutis Cms
TUTIS Series DVR Chapter TUTIS CMS The TUTIS CMS (Central Management Software) supports connection to multiple DVRs through Internet, not through the support of intermediate server. It is convenient for managing multiple DVRs through the network. Software installation: Double click to run CD file “TUTISCMS. msi”. After successful installation, double click desktop icon and run the software. -
Page 47: Mobile Device Surveillance
TUTIS Series DVR Chapter Mobile Device Surveillance You can receive live video streaming from the DVRs using an Android or Apple device. Android Device With TUTIS Remote, you can access the TUTIS DVRs from your Android devices to remotely watch live view, take snapshots, start / stop monitoring and control the connected PTZ cameras. - Page 48 TUTIS Series DVR 2. To add a DVR, tap the Setting button . This page appears. 3. Tap to add a DVR. This page appears. 4. Enter the Title, IP Address, ID, Password and the channel number of the DVR. Enter Port number 6600, which is the default Mobile Port setup on the DVR.
- Page 49 TUTIS Series DVR 5. Tap the OK button, the DVR is added to the Device List. 6. Tap on the DVR, the channel numbers displayed in the list.
- Page 50 TUTIS Series DVR 7. Tap a desired channel, the following page with 4-screen camera view appears. Zoom Iris Direction Focus 8. To turn to the next / previous channel pages, tap 9. To Stop / Start monitoring a channel, tap a channel (which will be highlighted with a red frame) and then tap 10.
-
Page 51: Apple Device
TUTIS Series DVR Apple Device With TUTIS Remote, you can access the TUTIS DVRs from your Apple devices, such as iPhone or iPod Touch, to remotely watch live view, take snapshots, start / stop monitoring and control the connected PTZ cameras. Download TUTIS Remote from App Store and install the application. - Page 52 TUTIS Series DVR Follow the steps below to connect the TUTIS DVRs: 1. Tap the icon on the desktop. This page appears. 2. To add a DVR, tap the Setting button . This page appears.
- Page 53 TUTIS Series DVR 3. Tap to add a DVR. This page appears. 4. Enter the Name, IP Address, ID and Password of the DVR. Select the channel number of the DVR. Enter Port number 6600, which is the default Mobile Port setup on the DVR. For details, please refer to “Mobile”...
- Page 54 TUTIS Series DVR 6. Tap on the DVR, the channel numbers displayed in the list. 7. Tap a desired channel, the following page with 4-screen camera view appears. Channel Field 8. To turn to the next / previous channel pages, tap 9.
- Page 55 TUTIS Series DVR 12. To go back to the Device List, tap 13. To display the 4-screen camera view in full screen, simply hold the device horizontally. 14. To display a channel in Single view, simply double-tap on a channel. 15.
-
Page 56: Remote Access To The Dvr
TUTIS Series DVR Chapter Remote Access to the DVR Accessing the DVR on the Network Follow the steps below to access the DVR from a computer. 1. Open an Internet Explorer and type the IP address of the DVR in the address bar. Local connection: http:// (IP address from the DVR’s Network Menu): IP port used e.g. -
Page 57: Browsers Security Setting
TUTIS Series DVR Browsers Security Setting 7.2.1 Installing ActiveX Controls Follow the steps below to install the ActiveX Controls when you first connect to the DVR’s IP address. If you do not see a yellow bar as shown in image below, your security settings may be too high. -
Page 58: Enabling Activex Controls
TUTIS Series DVR 7.2.2 Enabling ActiveX Controls Note this section is only necessary if you DO NOT see the yellow ActiveX bar at the top of your browser screen when you first connect to the DVR. 1. At the top of the Internet Explorer Window, click the Tools button and click Internet Options. - Page 59 TUTIS Series DVR 3. In the Security Settings window, scroll to “ActiveX controls and plug-ins”. Set the controls as follows: “Enable”: Allow previously unused ActiveX controls to run without prompt (Internet Explorer 7 only) Allow scriptlets (IE7 only) ...
-
Page 60: Remote Live View
TUTIS Series DVR Remote Live View On the Remote Live View window, you can display live view, playback recordings, configure the DVR settings or control the connected PTZ cameras. You can also right-click a channel to start / stop monitoring, enable / disable the audio function or remotely record the videos to your computer. -
Page 61: Remote Playback
TUTIS Series DVR 7.3.1 Remote Playback To play back the recordings from the DVR, select a date and recording type, and then click the Search button. The searched recordings will be displayed in the list. Highlight the desired recording and then click the PlayFile button to start playing back. -
Page 62: Remote Archive
TUTIS Series DVR 7.3.2 Remote Archive You can remotely archive the recordings from the DVR to your computer. Check the recording boxes and then click the Download button, the following File Backup window appears. In the File Style field, select H.264 to archive multiple recordings in a single file, and then play back the recording using the DVR Player (see 7.3.3);... -
Page 63: Playing Back Recordings From The Computer
TUTIS Series DVR 7.3.3 Playing Back Recordings from the Computer You can use the provided DVR Player in the CD to play back the recordings stored in the computer. Double-click the player.exe in the CD to bring up the DVD Player. To start playing back, click the button to select a recording from your computer. -
Page 64: Dvr Configuration
TUTIS Series DVR 7.3.4 DVR Configuration To remotely configure the DVR settings, on the Remote Live View window, click the Setting button and then click DVRSetting. The following setup window appears. For details on DVR configurations, please refer to Chapter 4, OSD Menu Operation. -
Page 65: Specifications
TUTIS Series DVR Chapter Specifications Model Name TUTIS-4F3 TUTIS-8F3 TUTIS-16F3 Operating System Embedded Linux OS Video Compression Format Main Profile H.264 Video 4 BNC 8 BNC 16 BNC Input Audio 4 RCA 8 RCA 16 RCA Alarm 4 inputs 8 inputs... - Page 66 TUTIS Series DVR Action with Alarm Support Email Alarm Send images to the designated email Spot Alarm Pop‐up Support PTZ Control Pelco‐D, Pelco‐P, EverFocus Remote System Windows XP / Windows Vista / Windows 7 / Mac OS English / Farsi / French / Greek / Hungarian / Italian / Polish / Multi‐Language Portuguese / Russian / Simplified Chinese / Spanish / Thai / Traditional Chinese / Turkish Mobile Device Surveillance Apple / Android IE6.0~9.0 / Firefox / Chrome / Opera / Apple Safari* Browser * Apple Safari is only supported on Windows 7. Mouse interface / USB2.0 Backup interface Remote Controller Support 0°C~50°C Working Temperature Working Humidity 10%~90% Certifications CE, FCC Support 2 SATA HDD, HDD Support 1 SATA HDD, Capacity to 2TB Capacity to 4TB RJ‐45 10/100M via RJ‐45 10/100M via Ethernet, Support Ethernet, Support ...
- Page 67 EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe ‐ Germany: 12F, No.79, Sec. 1, Shin‐Tai Wu Road, Albert‐Einstein‐Strasse 1, D‐46446 Hsi‐Chih, Taipei, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940 FAX: +886 2 2698 2380 FAX: +49 2822 939495 www.everfocus.com.tw www.everfocus.de marketing@everfocus.com.tw info@everfocus.de EverFocus China ‐ Beijing: EverFocus China ‐ Shenzhen: Room 609, Technology Trade Building, 4F, No. 2, D4 Building, Wan Yelong Shangdi Information Industry Base, Industrial Park, Tangtou Road, Shiyan, Haidian District, Beijing 100085, China Baoan, Shenzhen, Guangdong 518101, China TEL: +86 10 6297 3336~39 TEL: +86 755 2765 1313 FAX: +86 10 6297 1423 FAX: +86 755 2765 0337 www.everfocus.com.cn www.everfocus.com.cn marketing@everfocus.com.cn marketing@everfocus.com.cn ...
