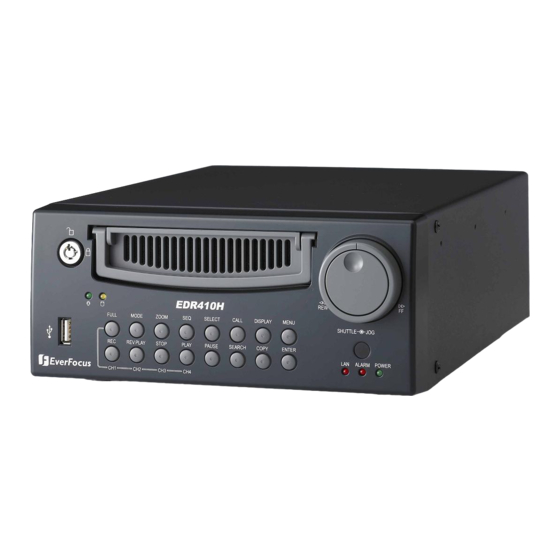

EverFocus EDR410H Instruction Manual
  1. Manuals
  2. Brands
  3. EverFocus Manuals
  4. DVR
  5. EDR410H
  6. Instruction manual

EverFocus EDR410H Instruction Manual

Everfocus edr410h: user guide
Hide thumbs Also See for EDR410H:
Table of Contents

Advertisement

Quick Links

See also: Insrtuction Manual
Volume
1
Instruction Manual
E
D
R
8
1
0
H
/
8
1
0
M
/
E
D
R
8
1
0
H
/
8
1
0
M
/
4
1
0
H
/
4
1
0
M
4
1
0
H
/
4
1
0
M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDR410H and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus EDR410H

Summary of Contents for EverFocus EDR410H

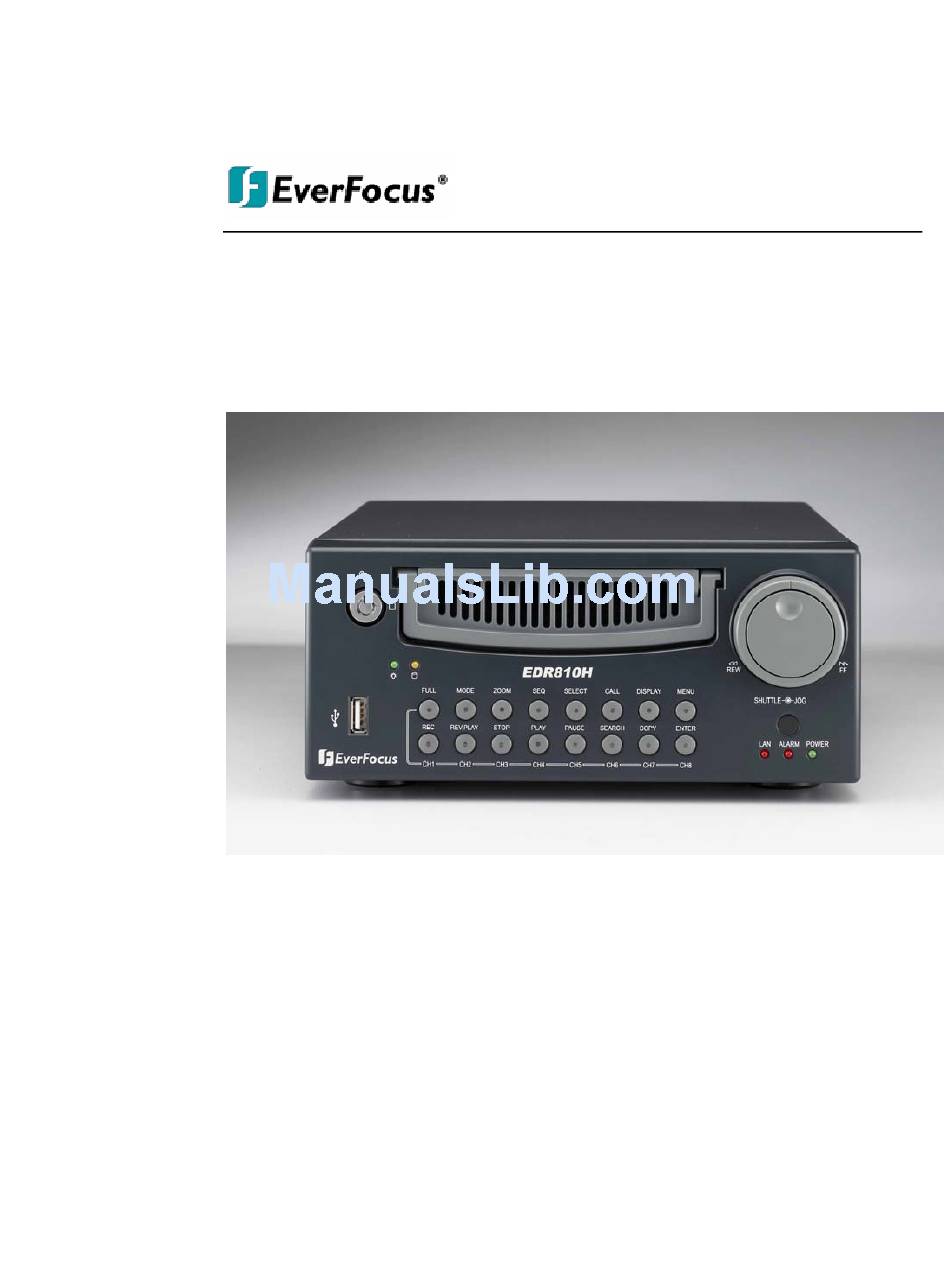

  • Page 1 Volume Instruction Manual...
  • Page 2 All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the Everfocus Electronics Corporation. QuickTime is a registered trademark of the Apple Computer, Inc. Windows is a registered trademark of the Microsoft Corporation in the United States and other countries.

  • Page 3: Table Of Contents

    Monitor Display CHAPTER 2 Installation Basic Wiring Instructions Hard Disk Drive Installation Final Install Process CHAPTER 3 DVR Menu Setup Time/Date Setup Menu Camera Setup Menu Record Setup Menu Alarm Setup Menu Motion Setup Menu VLoss Setup Menu Network Setup Menu...
  • Page 4 HDD Full System Setup Menu CHAPTER 4 Recording Overview Instant (N) Recording Setup Schedule Recording Setup Event Recording Setup CHAPTER 5 Playback Overview Basic Playback Search Playback CHAPTER 6 Copying Video Viewing Copied File CHAPTER 7 Call Overview CHAPTER 8 Screen Display Setting &...
  • Page 5 Router or LAN Connection CHAPTER 11 Linksys Port Forwarding Dynamic DNS CHAPTER 12 D-Link Port Forwarding Dynamic DNS CHAPTER 13 DDNS Creating DDNS Account CHAPTER 14 Viewing through Internet Explorer CHAPTER 15 Interface Specifications Transmission Settings Remote Control Protocol Appendix A Remote Control Appendix B Alarm Board Configuration...

  • Page 6: Safety Warning

    Safety Warning WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 7: Safety Precautions

    Do not use the appliance in an extreme environment where high temperature or high humidity exists. Use the appliance at temperature within indoor type DVR for 0 C and a humidity below 90%. The input power source for this appliance is...
  • Page 8 Safety Precautions Read Instruction — All the safety and operating instructions should be read before the unit is operated. Retain Instructions — The safety and operating instructions should be retained for future reference. Heed Warnings— All warnings on the unit and in the operating instructions should be adhered to. Follow Instructions—...

  • Page 9: Product Overview

    Product Overview DVRs are the industry’s first full-featured digital video recorder designed specifically for use within the security industry. The Digital Video Recorder incorporates all the benefits of digital video recording, is simple to install, and operates just like a VCR. Highly efficient compression technology and superior resolution of recorded images make the Digital Video Recorder stand out from the competition as the best choice for security surveillance.

  • Page 10: Specifications

    1.2 Specifications Video Format Video Input Video Output Video Compression Recording Resolution Video Display Display Resolution Video Pause 4/8 Alarm Inputs Alarm Outputs Hard Disk Storage Recording Rate Recording Mode Playback Rate Playback Search Motion Detection Video Loss Detection Event Log User Interface Setup User Input Device...

  • Page 11: Front Panel Keypads

    1.3 Front Panel Keypads Keys: Channel Key: Press FULL+Channel Key (CH1~CH8) to display video image in the full screen format the picture of the corresponding button will fill the whole screen of the monitor display. CH1 / REC: Press this key to start instant recording. CH2 / REV.
  • Page 12 MODE: Switch PIP, 4, 7, and 8 displays in Live and Playback modes. ZOOM: Press this key while viewing the full screen image to display a magnified resolution on the monitor. You must be in “Full” screen mode first before zooming. While zooming, all other function keys will be disabled until you press “ZOOM”...
  • Page 13 Shuttle and Jog Dial Shuttle: In the Playback mode, turn the Shuttle dial to fast forward/rewind the video. In the Pause mode, turn the Shuttle dial to slow forward/rewind the video. In the Search mode, turn the Shuttle to change pages. Jog Dial: In the Pause mode, turn the Jog dial to forward/rewind the video.

  • Page 14: Back Panel Connections

    1.4 Back Panel Connections POWER Main Power plug: Connect the DC 12~ 24V power source to adapter for AC 100~ 240V. AUDIO Audio IN: Audio input for recording, and it can be set to “YES” or “NO” in the RECORD SETUP MENU. Audio OUT: Connect to an audio input of a monitor or other device.

  • Page 15: Setup Menu

    MONITOR MAIN MONITOR: This connector is used for the main monitor display, a number of different display modes may be selected for viewing. CALL MONITOR: This connector is used for the call monitor. This monitor can only display a full screen or a quad screen. VIDEO IN For EDR810 Series: VIDEO IN (1~8): The BNC connectors of video input enable the system to...
  • Page 16 Note: The IR receiver extension line (10m) must be purchased separately. Wireless LAN (Only w/ mobile DVR line EDR410M or EDR810M) Antenna: Integrated IEEE 802.11b/g wireless LAN capabilities. The antenna port is for wireless network antenna use (For EDR410/ 810M option).

  • Page 17: Monitor Display

    1.5 Monitor Display The status information of the cameras or machine will show up, and be located at different places on the screen. Channel tag: A channel tag indicates the channel name of the screen. Event sign: Event signals which are small icons with a capital letter and red background show the events on each screen.

  • Page 18: Current Time

    Select sign: You can assign a camera to a display by Dial Jog to move the select sign to the display you would like to change camera, and then press FULL + channel key to relocate the camera. Play status bar: The play status bar appears in play back mode if you enable a status bar on the screen (Check DISPLAY).

  • Page 19: Installation

    Installation The installations described below should be made by qualified service personnel or system installers. Please refer to the following diagram for the basic wiring connections. Note: Monitors and Cameras must be purchased separately. RS 232 Camera (VIDEO & AUDIO) Monitor (and Speaker) Note: 810H/810M without looping...

  • Page 20: Basic Wiring Instructions

    2.1 Basic Wiring Instructions Please refer to diagram 2.1 on page 11 to assist you with this portion of the Power: Connect the power source or adapter into the power sock diagram 1. Note: Do not plug the digital video recorder into the same power source as the cameras.

  • Page 21: Hard Disk Drive Installation

    Once you have completed the basic wiring installation and the hard disk drive installation you are read to turn on the DVR. Simply plug the power source you installed earlier. The POWER LED lights will light up if power is normal. The next step is to se t up he menu options for the DVR.

  • Page 22: Dvr Menu Setup

    The following chapter will walk you through the detailed DVR Menu step by step and how to set the DVR for your specific application. To begin this process, press the MENU main menu you will find t here are 12 setup option pages as follows.

  • Page 23: Time/Date Setup Menu

    There are two time formats that are 12 HOUR and 24 HOUR to be selected. TIME: This field represents the current time on the DVR. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. The Time is represented as follows:...
  • Page 24 Year: 2000~2099 / Month: 01~12 / Date: 01~31 (Day of Week) DAYLIGHT SAVING: This field represents the daylight savings on the DVR. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. Select “ON” or “OFF” to enable or disable daylight saving time function.
  • Page 25 To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. TIME SERVER: You can set the time server address where you locate if you connect to network and enable time synchronize.
  • Page 26 Diagram 3.3 TIME ZONE: You can set the time zone where you locate if you connect to network and enable time synchronize. Atlantic Daylight Time subtract 3 hours from GMT Atlantic Standard Time subtract 4 hours from GMT Eastern Daylight Time subtract 4 hours from GMT Eastern Standard Time subtract 5 hours from GMT Central Daylight Time subtract 5 hours from GMT Central Standard Time subtract 6 hours from GMT...

  • Page 27: Camera Setup Menu

    E: The title setting allows you to assign a title to eac Titlin g with 12 characters is supported in each channel. simpl y use the Jog Dial on the DVR. Press the Enter ke select ion. The available alphanumeric characters are: 0,1,2,3,4,5,6,7,8,9, A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z, ( ) .
  • Page 28 DVR. Press the Enter key to make your selection. SEQ (MAIN/CALL): Setup a retention period for sequences. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. REC QUALITY: Select an image quality for recording. Normal record image quality and event record image quality can be set individually.
  • Page 29 EVENT: Event record speed (Images per second) up to 30 IPS or “OFF”. Note: In order to validate a new record speed, you need to disable all record actions before setting up. SET: Set “ON” when using schedule recording. Set “OFF” when not using schedule recording. Note: The status of SET can only be changed in the SCHEDULE SETUP MENU.
  • Page 30 y camera’s setting from a camera to other cameras: In order to copy the setting from a camera to other cameras, we provide a setting copy function. Press MENU when you finish setting up a camera, and then press COPY .

  • Page 31: Record Setup Menu

    3.3 R ecord Setup Menu Diagram 3.6 is a screen shot of the RECORD SETUP MENU. This menu is for setting up the options for recording. We define recording as something on which sound or visual images have been recorded. In the RECORD SETUP MENU the following fields are defined as follows: RECORD AUDIO: YES: Audio will be recorded when machine is recording.

  • Page 32: Record Mode

    PAL are 720x288, 720x576 and 360x288 to be selected. Its default value is 720x288. NOTE: Selecting a certain resolution will determine the amount of IPS the DVR will support. NTSC 720x480 = 30 IPS (this IPS value is divided by the amount of cameras installed)

  • Page 33: Alarm Setup Menu

    ALARM TYPE: This field is to turn alarm recording on or off. The Default from the factory is set to on. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. N. O.: Normal Open alarm.
  • Page 34 The Default from the factory is set to on. To change this, simply use t Dial on the DVR. Press the Enter key to make your selection. Active camera setting, from camera 01~08. You can set the cam which corresponds to the place where the alarm is located.
  • Page 35 IN MON: Display on a main monitor when an alarm occurs. NO CHANGE: No change on the display in the main monitor when an alarm occurs. ULLSCREEN: A full screen of the active camera will display when an alarm occurs. CALL MON: Display on a call monitor when an alarm occurs.

  • Page 36: Motion Setup Menu

    There are 10 sensitivities available; level 1 is the lowest, and level 10 is the highest sensitivity. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. Diagram 3.8 w, which is detected by the digital video detection.
  • Page 37 99 seconds. The default value is 5 seconds. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. ALARM OUTPUT: This will transmit a signal to another de setting of alarms are NONE = not activated and 1 = one output signal transmitted.
  • Page 38 NO CHANGE: No change on the display in the main monitor when motion occurs. SEQUENCE: Display in the sequence mode when motion occurs (Full Screen of selected cameras). ACTIVE CAMERA: Displays the active camera in full screen mode on the call monitor. SUMMARY: Dial Jog to change items in alarm’s statuses are shown in SUMMARY tables.
  • Page 39 MENU - EXIT SELEC ENTER CHANGE DIR SEARCH - ON AREA PAUSE - OFF AREA Copy camera’s setting from a camera to other cameras: In order to copy the setting from a camera to other cameras, copy function. Press MENU when you finish setting up a camera, and then press COPY.

  • Page 40: Vloss Setup Menu

    DURATION: The amount of time a vloss event will record - from 1 sec to 99 seconds. The default value is 5 seconds. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. ALARM OUTPUT: This will transmit a signal to another device. The setting of alarms are NONE = not activated and 1 = one output signal transmitted.
  • Page 41 BUZZER: Audible alarm buzzer. ENABLE: To enable a vloss buzzer. DISABLE: To disable a vloss buzzer. ALARM NETWORK: YES: Enable alarm network. NO: Disable alarm network. SUMMARY: All video loss’s statuses a These tables are for checking video loss overall statuses, but not for setting.

  • Page 42: Network Setup Menu

    DVR. In the Network Setting Menu the followin Note: Since every Network Configuration is different, please contact your Network Administrator or ISP for how to assign those IP addresses and port numbers.
  • Page 43 IP Address: This field is to set a static IP Address for the DVR. A static IP address is an IP address whose value does not change. Everfocus suggest using a static IP address. If your Internet provider does not offer a static IP address you have the option to use a dynamic IP address.

  • Page 44: Alarm Network

    CONTROL PORT: The default port number is 1600. User can change it to different port number for controlling comment between DVR and client PC. Note: If you wish to have multiple users log into the DVR please open a range of ports on your router. For example if you use the default port 1600 you would open ports 1600 on your router.
  • Page 45 UDP: communicate with client via UDP protocol PORT NUMBER: setting the communication port with Alarm server. UNIQUE ID: setting the ID number of your DVR to Alarm server. ER ER 1: assign the IP address of Alarm server 1. SERV ER 2: assign the IP address of Alarm server 2.

  • Page 46: Email

    EVENT is enabled and triggered. For example: In Motion Setup Menu, if the “EMAIL/NETWORK” is set to “YES”, this e-mail address will receive a text message and an “ARV” format of a still image from DVR when Motion is triggered. This “ARV” file can be played...

  • Page 47: Password

    In Alarm Setup Menu, if the “ALARM EMAIL” is set to “YES”, this e-mail address will receive a text message and an “ARV” format of a still image from DVR when the Alarm is triggered. This “ARV” file can be played back by opening “EDRViewer.exe” that you downloaded from...

  • Page 48: Wireless Network (Edr410-810M Only)

    Play: Allows the user to view live video, perform a search, playback and control the a PTZ camera (if one is connected) Live: Allows the user only to view live video To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. Example:...
  • Page 49 IP Address: This field is to set a static IP Address for the DVR. A static IP address is an IP address whose value does not change. Everfocus suggest using a static IP address. If your Internet provider does not offer a static IP address you have the option to use a dynamic IP address.
  • Page 50 Diagram 3.15 Authentication: This field is to setup the security for the wireless network. You have the options of selecting open/none, open/wep, shared/none, shared/wep, and wpapsk/tkip. Further information about these types of authentication is provided with the router or access point manual you are using.

  • Page 51: Schedule Setup Menu

    Sun as well as DLY. If you wish to create a daily timer for every day of the week you may choose the DLY option. To change this, simp the Jog Dial on the DVR. Press the Enter key to make your selection. (Monday), TUE (Tuesday), WED (Wednesday), THU hursday), FRI (Friday), SAT (Saturday), SUN (Sunday).
  • Page 52 Minutes: 00 ~ 59 SET: This field is used to turn the timer recording on or off. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection. ON: Enable a scheduled record time period.

  • Page 53: Disk Setup Menu

    3.9 Disk Setup Menu Diagram 3.17 is a screen shot of the DISK SETUP MENU. This menu is for viewing Disk information and formatting the disks. For eve tup we recommend formatting the Hard Disk. In the DISK SETUP MENU the following fields are defined as follows: DISK INFORMATION: Only one disk is available in this model.

  • Page 54: Control Setup Menu

    There are six different speeds, 1200 BPS, 2400 BPS, 4800 BPS, 9600 BPS, 19200 BPS, and 3840 BPS. The default setting from the factory is 9600 BPS. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection.
  • Page 55 RS232 Data Bit: This field is the data bit at which you will be transferring. There are two settings for this option: 8 or 7. The default is set to 8. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection.

  • Page 56: Warning Setup Menu

    ALARM OUTPUT: This will transmit a signal to another device. The setting of alarms are NONE = not activated and 1 = one output signal transmitted. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection.

  • Page 57: Hdd Temp

    ALARM DURATION: Permanent NETWORK ALARM: YES: To enable network alarm. NO: To disable network alarm. SEND EMAIL: YES: Send an email when the fan does not work. NO: Do not send an email when the fan does not work. The email address can be set in the NETWORK SETUP MENU. .11.2 HDD TEMP In HDD...
  • Page 58 BUZZER: HDD TEMPERATUR E buzzer. ENABLE: To enable a buzzer when HDD’s temperature is higher than 65° C. DISABLE: To disable HDD TEMP. Buzzer. ALARM OUTPUT: The setting of alarms which are NONE where 1 means the alarm is enabled. ALARM DURATION: Permanent NETWORK ALARM: YES: To enable network alarm.

  • Page 59: No Hdd

    ALARM OUTPUT: This will transmit a signal to another device. The setting of alarms are NONE = not activated and 1 = one output signal transmitted. To change this, simply use the Jog Dial on the DVR. Press the Enter key to make your selection.

  • Page 60: Hdd Full

    ND EMAIL: YES: Send an email whe NO: Will not send an email when no HDD ha The email address can be set in the NETWORK SETUP MENU. 3.11.4 HDD FULL In HDD FULL, we define: BUZZER: HDD FULL buzzer. ENABLE: To enable a buzzer when HDD is full.

  • Page 61: Send Email

    ALARM DURATION: Buzzer noise and event record duration of an alarm, from 1 sec to 99 seconds. The default value is 5 seconds. NETWORK ALARM: YES: To enable network alarm. NO: To disable network alarm. SEND EMAIL: YES: Send an email when no HDD has been found. NO: Will not send an email when no HDD has been found.

  • Page 62: System Setup Menu

    “CANCEL” for leaving the existing window. Select “DEFAULT” to load factory default values. Select configuration settings from USB. Select “SAVE” to save existing Diagram 3.23 ected by the camera 1, so camera 1 “LOAD” to upload and save DVR Select...
  • Page 63 DVR configuration settings to USB device. Press “SELECT” button from the front panel to confirm once the selection is made. Note that a USB device has to be inserted properly before choosing “LO “SAVE” options. System will ask you to stop recording if you...
  • Page 64 Note: If you enable the system password levels and are logged in any level higher then Level 1 with no action having taken place after 20 seconds the DVR will automatically log you back into Level 1. Note: After upgrading system software, please do the following actions before recording: 1.
  • Page 65 User Level and Right LEVEL LEVEL-3 LEVEL-2 ADM INISTRATOR OPERATOR DISP M OD M EN COPY SEARCH PLAY STOP REV.PLAY PAUSE Note: The above table will be updated if there is any change. LEVEL-1 NONE ACCESS GENERAL ----...

  • Page 66: Recording Overview

    & end the recording. Event recording would consist of an alarm, vloss or moti on having taken place to trigger the DVR to record on that event. 4.1 Ins tant (N) Recording Setup Press the Record key to start recording immediately.

  • Page 67: Schedule Recording Setup

    Note: 1. If STOP key is pressed while machine is recording or playing video, the playing function will be disabled first. If STOP key is pressed twice the DVR will come out of record mode completely. 2. We suggest not to remove the Hot-Swappable Drive while the machine is recording or in playback.

  • Page 68: Event Recording Setup

    For instance when motion activity is detected by the DVR it will begin recording at the spec when an alarm is detected by the DVR it will begin recording at the specific IPS set under event column.
  • Page 69 3. When the event and schedule are set, enter the CAMERA SETUP MENU to set the event recording speed (IPS) of the camera in the time period (TP) section. Note : Set the time period (TP) from 00:00 to 00:00 daily in the SCHEDULE SETUP MENU, and set the normal record speed as 0 IPS in the CAMERA SETUP MENU if you only want to record only on a events activity recording (motion or alarm).
  • Page 70 EDR810/410 provides a record functio via the 19th pin of the ALARM INPUT input signal is pulled low constantly, EDR810/410 will start to record. The system will stop recording when the record input signal is not pulled low. Note: Please check APPENDIX C to see other available alarm input/output functions.

  • Page 71: Playback Overview

    Playback Overview Before continuing please be sure to have reviewed DVR Menu Setup (Chapter 3). You are now ready to begin setting up the DVR for playback. This chapter will show you how to setup the recorder for basic playback.
  • Page 72 (3) Fast Forward/Reverse Playback Press the PLAY key to begin playing back process. Turn the Shuttle dial clockwise, to begin fast forward playback. The speed will be shown on the status bar of the bottom screen. >> 2, 4, 6, 8, 16, 32X, and press ENTER at the same time to hold the play speed.

  • Page 73: Search Playback

    (5) Image advance Forward/Reverse Press PAUSE key to freeze the picture. PAUSE Turn the Jog dial cloc image. Turn the Jog dial counterclockwise to rewind the still video image by image. The field feed speed wi 5.2 Search Playback Press the SEARCH key to enter the SEARCH MENU. SEARCH In the SEARCH MENU, Dial the Jog clockwise or counterclockwise to change subentry values.
  • Page 74 An EVENT search does not give you the option to change the “BY TIME / DATE” search method. Size of total data file, HDD temperature, start recording time and end recording time of the disk show in the search screen. Note: If there is no video stored in the date/time specified, then the image will keep at the end of the last play, and the display time on the status bar shows “??:??”.
  • Page 75 A / M Search ALARM and MOTION events A / V Search ALARM and video loss events M / V Search MOTION and video loss events A / M / V Search all events (ALARM, MOTION and video loss) DATE and TIME are not able to be changed in the EVENT search method. The search list shows up when SELECT key is pressed.

  • Page 76: Copying Video

    Before continuing please be sure to have reviewed the preceding chapters. You are now ready to copy an image or video from the DVR. This chapter will show you how to copy a still image or movie from the recorder.
  • Page 77 In the COPY MENU, we define: COPY: Select Image (video) for copying images to movie file. Select Viewer for copying EDR viewer player. DISK NO: Disk number. It is fixed as “01” in this series. CAMERA NO: Camera channel number. You can select the video of camera you would like to copy.

  • Page 78: Viewing A Copied File

    6.1 Viewing a Copied File First Step is to download the viewer from card into the DVR’s appropriate slot. Press COPY button to enter the copy nu. In the Copy menu chose viewer under the copy option. Then, press SELECT button to copy the viewer to the USB or Flash Drive.
  • Page 79 Note: If you are unable to play “AVI” file downloaded from “E DRViewer”, please llowing URL: http://www.divx.com/divx/play/download/index.php downloading DivXPlay.exe. This will enable you to play “AVI” file cessfully.

  • Page 80: Call Overview

    Call O verview This chapter will try to give you MENU on the DVR. Press the CALL key a elow In CALL MENU, we define: (1) SEQ: Sequence display on the call monitor. Press SEQ to switch “ON” or “OFF” of the sequence status.
  • Page 81 (a) SEQ is OFF: When QUAD DISPLAY is “NO”, press FULL + Channel key to assign a specific full screen in the call monitor. When QUAD DISPLAY is “YES” (enabled), press FULL + CH 1 or CH2 to display a quad screen in the call monitor. Press FULL + CH 1 to display channel 1 to channel 4 in the call monitor, and press FULL + CH 2 to display channel 5 to channel 8 in the call monitor.

  • Page 82: Screen Display Setting & Mode

    Screen Display Setting & Mode In a full screen display, press SELECT key to pop up the display adjustm ent window as below: In the screen display setting menu (1) CAMERA: The display setting of the current camera. ) BRIGHTNESS: The bright percentage of the current camera; from 0% to 100%.

  • Page 83: Mode Button

    The sele cted item will show in red colo r bar. Use Jog to increase or decrease the value. ress ENTER to confirm the setting value and move to next item. After finished setting, pres s SELECT or MENU key to save and exit the dialog. Total of 8 channels are adjustab Pressing ZO OM button from front panel will enable you to do screen adjustment.

  • Page 84: How To Upgrade Firmware

    DVR. Copy the .ETW to your USB memory from your computer Insert the USB in to the USB slot on the front panel of the DVR. When inserting the USB, make sure the direction of insertion is correct.

  • Page 85: Networking Overview

    Networking Overview This chapter will try to give you a the DVR. Before we begin the hould have a working knowle will be a helpful in completing the networking pro 10.1 Introduction to TCP/IP TCP/IP is the suite of protocols used by the Internet and most LANs (Local Area Networks) throughout the world.

  • Page 86: Gateway Addresses

    For example, some Web sites a person visits on the Internet use the following: ttp://www.everfocus.com:8100/ this example, the number 8100 refers to the po Web browser to connect to the Web server. Normally, a Web site uses port numb er 80 and this number need not be included with the URL (although it can be).

  • Page 87: Pre-Installation

    That way, you can host a website, email server, or other type of server connection. Everfocus suggest using a static IP address. If your Internet provider does not offer a s dynamic IP address.

  • Page 88: What Type Of Network Connection

    What type of DVR are you installing? Everfocus EDR series: EDR 410, 810, 920, 1620, 1640, or 1680 Everfocus EDSR series: EDSR 110, 400H, 400M, 400, 900, or 1600 What Type of Network Connection do y have? Everfocus DVR’s can operate using three distinct types of networking...

  • Page 89: Simple One To One Connection

    10.7 Simple One to One Connection rosso ver Ethernet Cable Pin outs: The Diagram below shows the pin conf Conne ction Procedure: The First step is to purchase or make a cross over cable. We recommend purchasing one if you have never made a cross over cable. Please remember you can not use a straight through network cable for this application Once you have a cross over cable pl g...
  • Page 90 Now Log into the Everfocus DVR menu and using the jog dial from the previous chapter go to the Network Setting Menu. (See page 28 for more instructions) Assign an IP address of 192.168.001.003 to the DVR, a Subnet mask of 255.255.255.000, and a default gateway of 192.168.001.001.
  • Page 94 Once you have reached this point click ok and restart both the computer and the digital recorder. To access the DVR from the computer simply open Internet Explorer and in the address bar type: http://192.168.1.3...

  • Page 95: Direct High Speed Modem Connection

    10.8 Direct High Speed Modem Connection Internet Straight Through Ethernet Cable Pin outs: The Diagram below shows the pin configurations for a straight cable. onnection Procedure: The First step is to purchase or make a straight through cable. We recommend purchasing one if you have never made a straight through cable.
  • Page 96 Now Log into the Everfocus DVR menu and using the jog dial from the previous chapter go to the Network Setting Menu. (See page 28 for more instructions) Assign the Static IP address which you obtained from the internet service provider to the DVR, the Subnet mask from the internet service provider to the DVR, and the default gateway of the internet service provider.

  • Page 97: Router Or Lan Connection

    10.9 Router or LAN Connection Internet Cat 5 Straight Through Cable Straight Through Ethernet Cable Pin outs: The Diagram below shows the pin configurations for a straight cable. C onnection Procedure: The First step is to purchase or make a straight through cable. We recommend purchasing one if you have never made a straight through cable.
  • Page 98 Once you have a straight through cable plug one end into the LAN port on the back of the recorder and the other into the router. Now Log into the Everfocus DVR menu and using the jog dial from the previous chapter go to the Network Setting Menu. (See page 28 for more...
  • Page 99 Once you have reached this point and you have restarted the digital recorder. To access the DVR from a computer simply open Internet Explorer and in the address bar type: http:// and the IP address of your internet service provider.

  • Page 100: Linksys Port Forwarding

    inksys Port Forw his chapter will cover a few simple configurations for the Linksys router. Please understand we do not support n it. If you need Technical support on this router you must call Linksys. This Chapte r is to offer some help to the installer and end user nothing more. To access the Web-based Utilit aviga tor, and enter the Router’s defau...
  • Page 101 The first screen that appears displays the Setup tab. This allows you to change the Rou r's general settings. Change these settings as described here and click the Save Settin gs button to apply your changes or Cancel Changes to cancel your changes.
  • Page 102 Enable - Click the Enable checkbox to enable port forwarding for the relevant application. Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Example: DVR 80 to 80 DVR 1600 to 1600 Both 192.168.1.50 Enable Both 192.168.1.50...

  • Page 103: Dynamic Dns

    DVR 37260 to 37260 Note: If your Internet service provider blocks port 80 and you are using a different port to access the DVR through the DVR’s Network Menu Setup please open those specific ports in this section of the router.

  • Page 105: D-Link Port Forwarding

    Chapter D-Link Port Forwarding This ch apter will cover a few simple configurations for the D-Lin k router. Please understand we d o not support this product and will not give tech su pport n . If you need Technical support on this router you must call D-Link. This hapter is to offer some help to the installer and end user nothing more.
  • Page 106 The next step is to open ports within your router. Go to Virtual Server in the router. Example1: Firewall - Select Enabled or Disabled Name - Enter the name referencing the virtual service Action – Either Allow or Disallow its use. Source - The server computer in the WAN (Wide Area Network) that will be providing the virtual services.
  • Page 107 If your Internet Service Provider Blocks port 80. Simply do the following: o Change the HTTP port from 80 to 8100 in the NETWORK MENU. To access the DVR from a computer simply open Internet Explorer and in the address bar type: The following is the address you would type:...

  • Page 108: Dynamic Dns

    DynDNS. Once you have enabled it enter the server address of DynDNS.org: members.dyndns.org Then enter the hostname you created with DynDNS.org Example: Everfocus.homeip.net Then enter the username and password you use to log into DynDNS.org...

  • Page 110: Ddns

    This chapter will cover a few simple configurations for setting up DDNS. ase understand we do not support this product and will not give tech su on it. If you ne ed Technical support This Chapter is to offer some help to 13.1 eating a DDNS Accou The first step is to open Internet Explorer and in the address bar type:...
  • Page 111 Add Host link right next to Dynamic DNS. The next step is to add a host name with an extension. Example: Everfocus.homeip.net The IP address should already be entered for you. All you have to do is click add host and you are done registering DDNS.
  • Page 112 To access the DVR from a computer simply open Internet Explorer a nd in the address bar type: http:// The DDNS you created example everfocu.homeip.net...

  • Page 113: Viewing Through Internet Explorer

    Chapter Viewing through Internet Explorer To access the DVR from a computer simply open Internet Explorer and in the address bar type: http:// (LAN or IP address of your internet service provider) The digital video login page will appear on the screen...
  • Page 114 If the above error message pops up when you connect to EDR for viewing from internet, you should change Internet Option of IE (browser) to enable ActiveX controls. Select Tools -> Internet Options… Please refer to the above steps for changing Security Options to Low. Main Screen:...
  • Page 115 If t he above error message pops up when you connect to EDR for viewing from internet, this usually happens if your pentao cx file is outdated or not installed. o Remedy thi s problem simply go to Start and Search.
  • Page 116 Search Your Computer for the following file pentaocx. Once you have found the files, delete them.
  • Page 117 The above diagram is the main screen display. The icons on the lower corner of the screen are mainly for control and configuration; those on the right corner are for status indication. If any icon is grayed, it means that the specific function is not accessible in the current mode.
  • Page 118 (Playback by EVENT LIST, click “Update” button to show list) (Playback by Time)
  • Page 119 (PTZ Control) earch from EVENT LIST: I. Select Event Type from Alarm, Motion and Vloss. II. Press Update button to refresh the event list. III. All events of the selected type will be displaying along with Date/Time, event type (represents by a capital letter), camera number (represents by a number), e.g.
  • Page 120 III. Use Direction Arrows (up, down, left, right) to move/adjust the focus to your desired direction and angle. IV. Press Z+ for Zooming In or Z- for Zooming Out. V. In Focus option, press Near to move the focus closer to the subject. O you can move the focus farther from the subject by pressing Far.
  • Page 121 I. To download viewer, press “EverFocus” logo on the right top corner of the screen. II. Select “Run” or “Save” the file.
  • Page 122 III. Open the EDRViewer.exe for loading the archived EDR MPEG Files (.arv) Note: If you are unable to play “AVI” file downloaded from “EDRViewer”, please following URL: http://www.divx. com/divx/play/download/index.php for downloading DivXPlay.exe. This will enable you to play “AVI” file successfully.

  • Page 123: Interface Specifications

    Interface Specifications This Digital Video Recorder may be controlled by a computer or a terminal via the standard D-SUB 9-pin RS-232 connector. D-SUB 9-pin connector specifications: The pin assignment of the 9-pin D-SUB connector Chapter...

  • Page 124: Transmission Settings

    9600 baud. Please refer to RS232/RS485 Setting Menu on page 32 for details. 15.2 Remote Control Protocol A computer can be used to control the DVR by sending the packet as follows. =============================================== ========== EDR410/810 485/232 Control Code Protocol...
  • Page 125 2-1. The format of message packet is as follows: Length Byte (Prefix: 0x86, 0x87, or 0x88 ... ) Receiver ID high byte Receiver ID low byte Opcode Byte Data Byte1 Data Byte2 Data Byte3 Checksum Byte 2-2. Length Byte This Length Byte is also a prefix. Bit7 must be 1. X: 0x87 ==>...
  • Page 126 ------------------------------------------------------ ---- 2-4. Opcode Byte & Data bytes 2-4-1. OPcode ------------------------------------------ OPcode Data1 Function ------ ------ ----- --------------------- 0x4B Keycode A remote key pressed ------------------------------------------ 2-4-1. A remote key pressed (OPcode=0x4B) ------------------------------- Data1 Key for EDR810/EDR410 ------ ----------------------- 0x00 CH1 0x01 CH2 0x02 CH3 0x03 CH4...
  • Page 127 0x1e JOG< 0x1f JOG> 0x20 CH5 0x21 CH6 0x22 CH7 0x23 CH8 0x24 (reser 0x25 (reser 0x26 (reser 27 (reserve) 28 (reserve) 0x29 (reserve) x2a (reserve) 0x2b (reser 0x2c SELECT 0x2d CALL 0x2e ENTER 0x2f (reserve) 0x30 (reser 0x31 (reserve) x32 (reserve) 0x33 (reserve) 0x34 (reserve)

  • Page 128: Appendix A Remote Control

    Appendix Remote Control...

  • Page 129: Alarm Board Configuration

    Appendix larm Board Configuration...

  • Page 130: Rj45 (Rs485) Pin Assignment

    Appendix RJ45 (RS485) Pin Assignment...

  • Page 131: Troubleshooting

    IPS set for Alarm prior to the Alarm or Motion activity. Lastly, you must make sure the REC light is continually illuminated. **Explanation: The DVR will record at a lower IPS when there is no motion, which will conserve HDD space. When motion is detected by a camera, the DVR will record at a higher IPS.
  • Page 132 The next step is to verify the recorder is getting the correct amount There is no display coming from one of the channels on the DVR? The first step is to verify is the problem coming from the recorder or the camera.
  • Page 134 -Strasse 1 D-46446 E m m erich, Germany TEL: 49-2822 -9394-0 www.everfocu s.de Your EverFocus product is designed a d manufactured with high quality materials and components which can recycled and reused. is symbol means that electrical and elec tronic equipment,...
