CyberData 011113 series Operation Manual page 77

Voip indoor intercom with keypad ral 9003, signal white color

Hide thumbs Also See for 011113 series:

Table of Contents

Mount the VoIP Indoor Intercom with Keypad

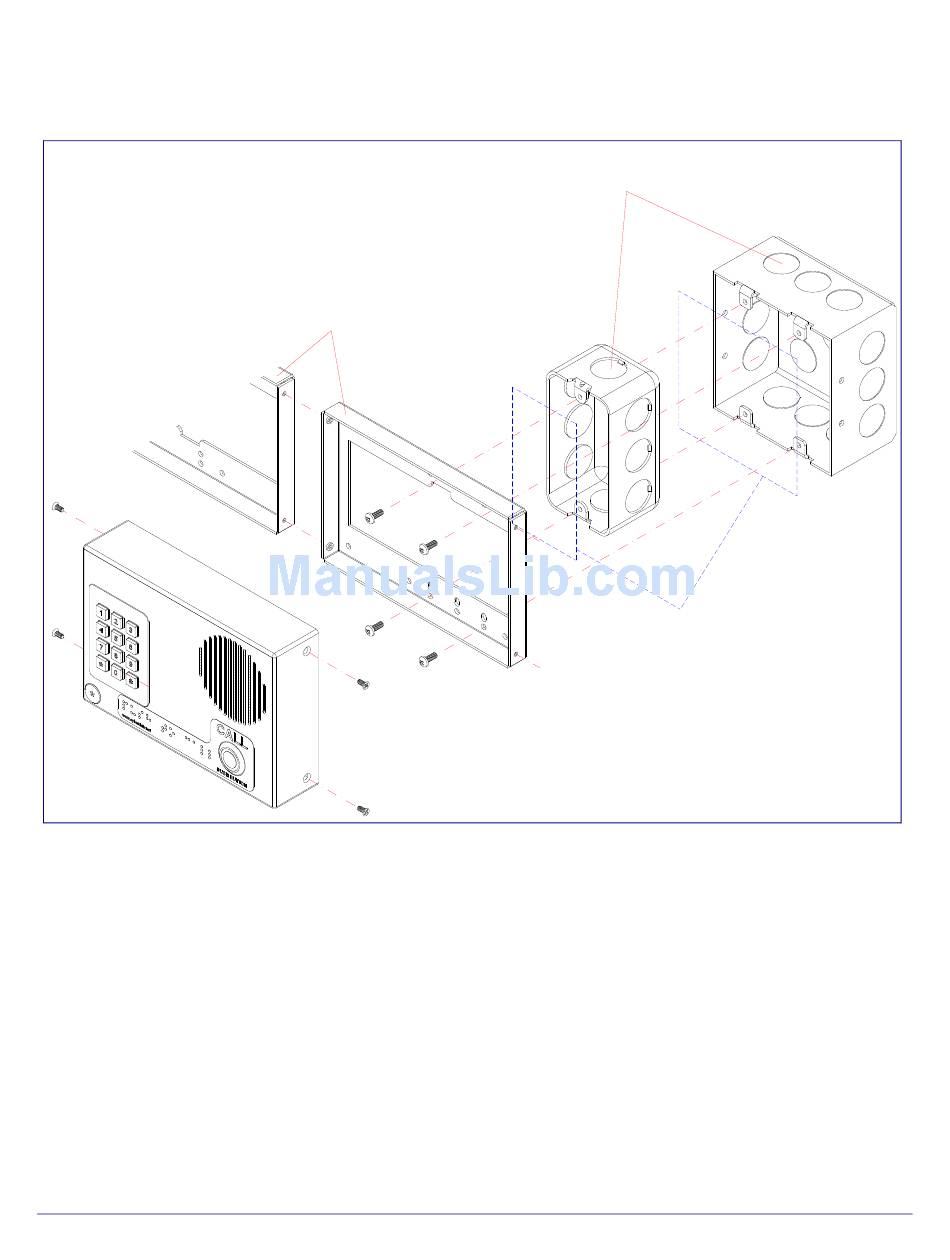

Figure A-2

shows a 1-Gang Box and a 2-Gang Box mounting option.

Figure A-2. Gang Box Mounting

Single Gang or 2 Gang Box

(Not Provided)

611469B

Can Be Rotated

to Mount on Either Sides

Drywall or Wall Cutout

Mounting Screw

for Gang Box

(4 Pieces)

Machine Screw

(4 Pieces)

Operations Guide

930323L
