Summary of Contents for Ledj STAR18
-
Page 1: User Manual

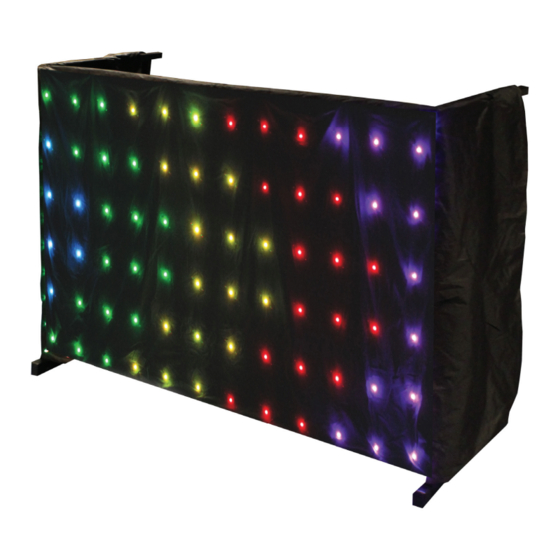

LEDJ Tri LED Matrix Table Cloth - STAR18 USER MANUAL... - Page 2 LEDJ Tri LED Matrix Table Cloth Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 LEDJ Tri LED Matrix Table Cloth Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 LEDJ Tri LED Matrix Table Cloth Technical Specifications You should find inside the carton the following items: 1, Tri LED Matrix Table Cloth 2, Instruction manual 3, Controller 4, SD card Technical Specifications: DMX channels: 2 DMX, sound active and auto run modes...
- Page 5 LEDJ Tri LED Matrix Table Cloth Operations Operations: There are three operating modes to choose from; 1, Auto run 2, Sound Active 3, DMX NOTE: Before use, please insert the supplied SD card and follow the instructions below. Auto run mode To set the Matrix table cloth in auto run mode, set all dip switches to the off position and use the “SENSITIVITY/SPEED”...
- Page 6 DATA Cable (DMX cable) requirements (for DMX operation): • The LEDJ Tri LED Matrix Table Cloth can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 7 LEDJ Tri LED Matrix Table Cloth DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 8 LEDJ Tri LED Matrix Table Cloth Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position...
