Attaching The Fan Blades; Installing The Mounting Plate - Kichler Lighting Windham Instruction Manual

7
Screws
Fig. 12
Mounting
plate
Fig. 13
Screws
Washers
Rubber
washers
Blade
Blades bracket
Mounting ring
Screws

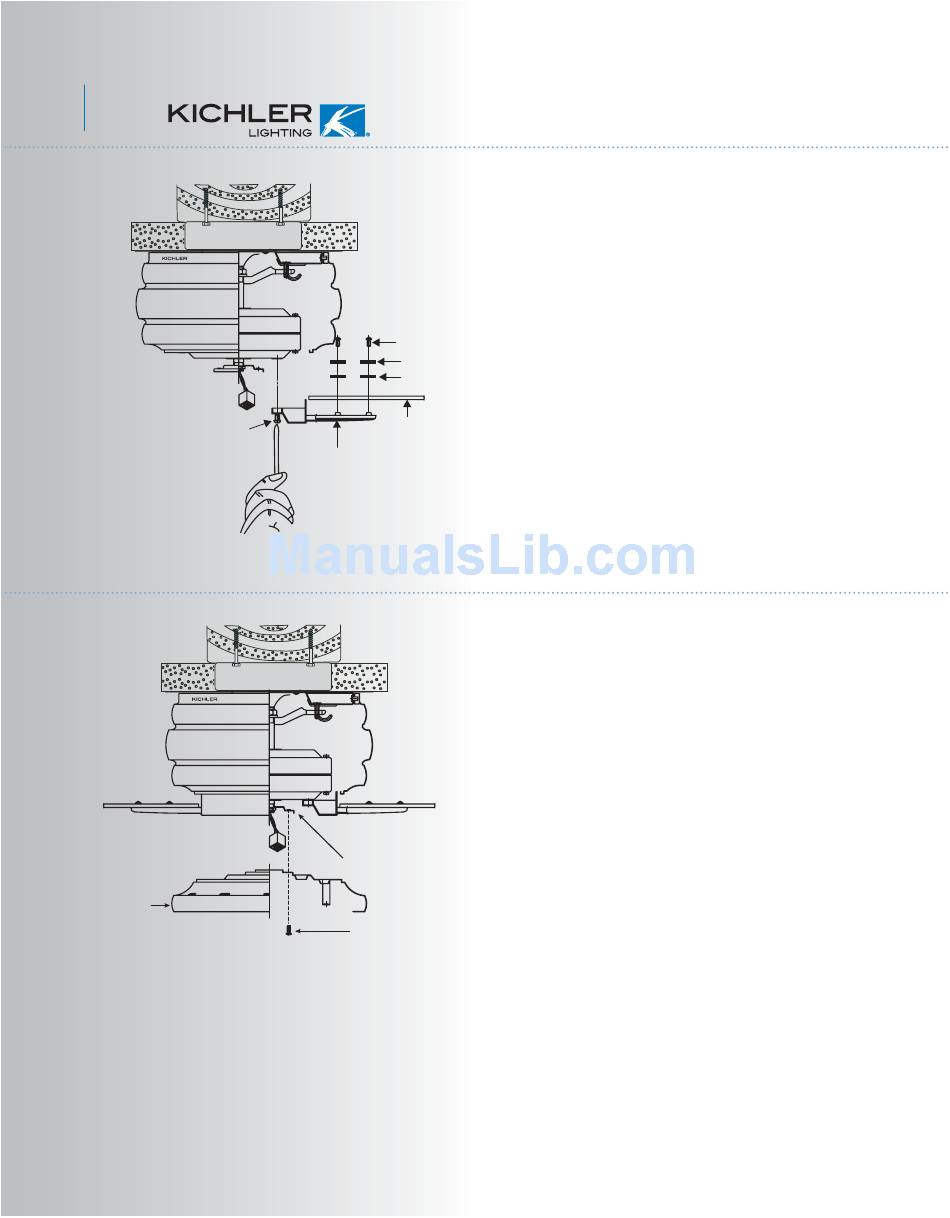

9. ATTACHING THE FAN BLADES

Step 1 Attach the blade to the blade bracket
using the screws, washers and rubber
washers as shown in Figure 12. Start screw
into bracket. Repeat for the two remaining
screws.
Step 2 Make sure the blade is straight and
tighten each screw.
Step 3 Fasten blade assembly to motor using
"Pre-Installed" mounting screws in the blade
bracket.

10. INSTALLING THE MOUNTING PLATE

1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
2. Place the key holes on the mounting plate
over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 13)
