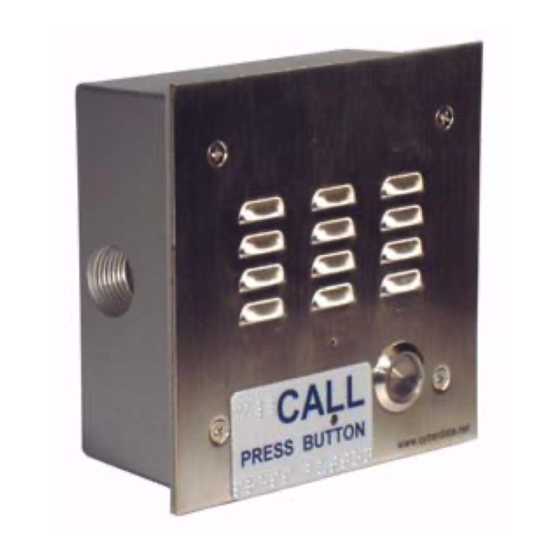

- Page 1 3COM VCX PBX Server VoIP Intercom Setup Guide CyberData Corporation • 2555 Garden Road • Monterey, CA • 93940 • T:831-373-2601 • F: 831-373-4193 www.CyberData.net...
-
Page 2: Setup Diagram
Intercom configuration. In this configuration, the Intercom acts as a standalone SIP telephony device. Figure 1. Setup Diagram IP Phone Server CyberData VoIP Intercom IP Address:___________________ IP Address:___________________ NetGear EtherFast FS108P Fast Ethernet Switch Server Setup Guide... -
Page 3: Host Environment
Software Version 3.0 Test Setup Equipment Table 2. Test Setup Equipment Equipment Model Version Grandstream BudgeTone-100 Notes: NetGear EtherFast FS108P Fast Ethernet Switch Notes: VoIP Intercom 010935B 3.3.2 Notes: Notes: Notes: Notes: Notes: Notes: Notes: Server Setup Guide 930288A CyberData Corporation... -
Page 4: Setup Procedure
4.0 Setup Procedure 4.1 VCX Configuration Below are the steps to configure the VCX so that a CyberData Intercom is able to register with the VCX. To configure the VCX, 1. Navigate to the Central Management Console of the VCX and login as Admin. See Figure Figure 2. - Page 5 2. Click on the Site Name. Figure 3. Site Name 3. This takes you to the Users page by default. Go to the Phones web page to create an extension for each CyberData Intercom. Figure 4. Users Page VoIP Intercom...
- Page 6 4. Select Add Phone and enter phone information. The extension and password assigned here are later used on the SIP Setup web page (Table 3 Step 5 Section 4.2, "Setup CyberData Device Parameters"). Figure 5. Add Phone “SIP Setup” web page “SIP Setup”...
- Page 7 7. Click the Save button and the screen will go back to the Users web page. 8. On the Users page, look to the far right of the User created for the CyberData Intercoms, and you will see a Phones button (see Figure 6).
- Page 8 10. Select the Assign Phone button to list all of the available extensions. The web page shown in Figure 9 is now displayed. You may select one or more extensions to assign to this user. Server Setup Guide 930288A CyberData Corporation...
- Page 9 11. To assign multiple extensions, put a check mark on each box next to the extension. 12. Click the Assign Selected button, and all of the marked selected extensions are now associated with this user. Figure 9. User—Unassigned Phones Page VoIP Intercom Server Setup Guide 930288A CyberData Corporation...
- Page 10 Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP Intercom. CyberData’s VoIP Discovery Utility program is available at the following web address: http://www.cyberdata.net/support/voip/discovery_utility.html...
- Page 11 3. On the CyberData Home Page (Figure 10), click on the SIP Setup button. This will take you to the SIP Setup page (Figure 11). Figure 11. CyberData Home Page Save Settings button Server Setup Guide 930288A CyberData Corporation...
- Page 12 For the Unregister on Reboot field, select No. • In the Register expiration (minutes) field, type 2. • In the Dial-Out Extension field, type an extension number that you want the Intercom to call. 6. Click on the Save Settings button. Server Setup Guide 930288A CyberData Corporation...
- Page 13 Hang up the phone and press the Call Button on the Intercom. • When the phone rings, pick up the phone. Speak into the phone and verify that you can hear your voice through the Intercom. This step completes the procedure. Server Setup Guide 930288A CyberData Corporation...
