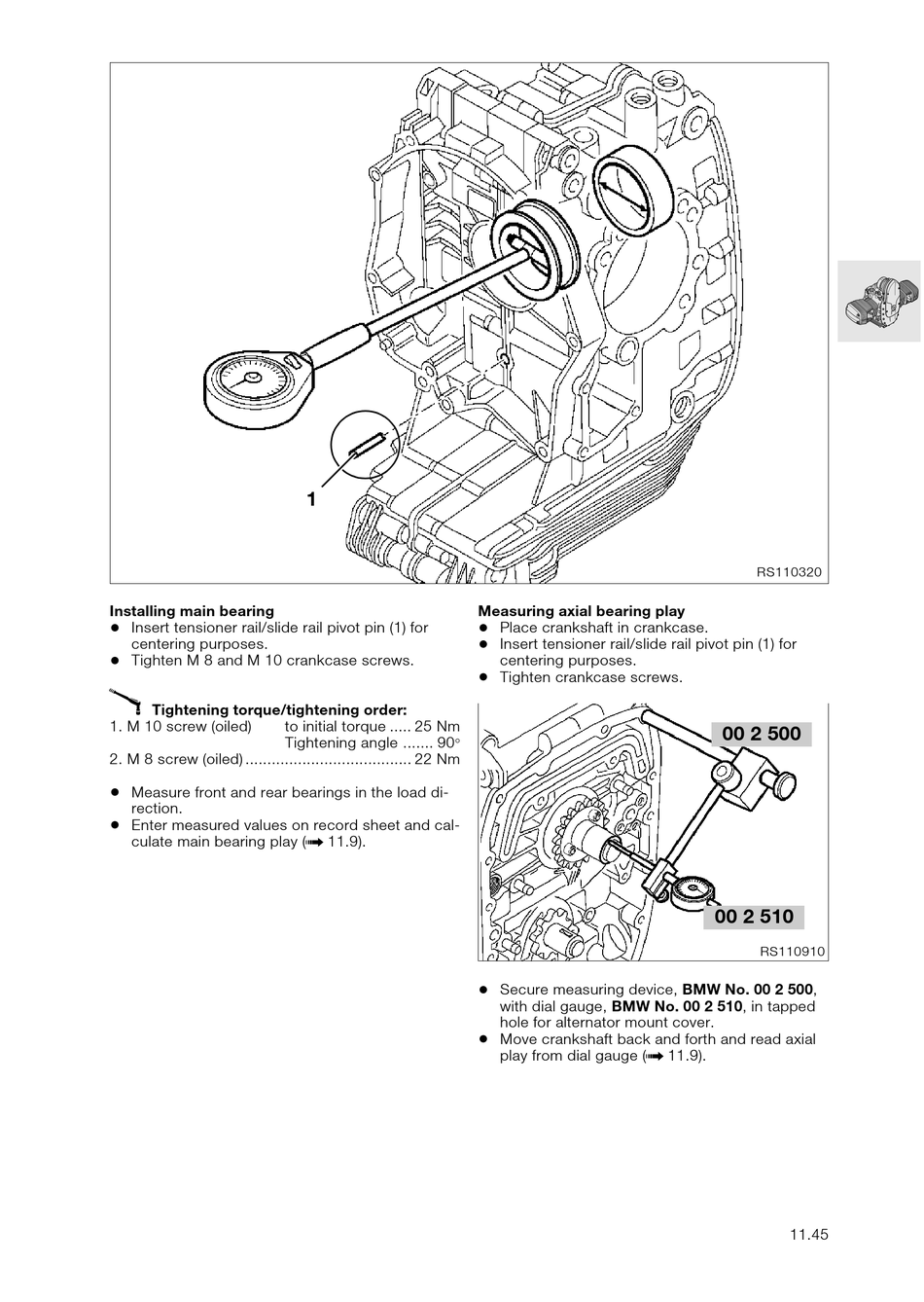

Installing main bearing

•
Insert tensioner rail/slide rail pivot pin (1) for
centering purposes.
•
Tighten M 8 and M 10 crankcase screws.
X
Tightening torque/tightening order:
1. M 10 screw (oiled)
2. M 8 screw (oiled) ...................................... 22 Nm
•
Measure front and rear bearings in the load di-
rection.
•
Enter measured values on record sheet and cal-
culate main bearing play (
1
to initial torque ..... 25 Nm
Tightening angle ....... 90°
11.9).
a

Measuring axial bearing play

•
Place crankshaft in crankcase.
•
Insert tensioner rail/slide rail pivot pin (1) for
centering purposes.
•
Tighten crankcase screws.
•
Secure measuring device, BMW No. 00 2 500,
with dial gauge, BMW No. 00 2 510, in tapped
hole for alternator mount cover.
•
Move crankshaft back and forth and read axial
play from dial gauge (
a
RS110320
00 2 500
00 2 510
RS110910
11.9).
11.45
