BMW R 1150 RT Repair Manual page 155

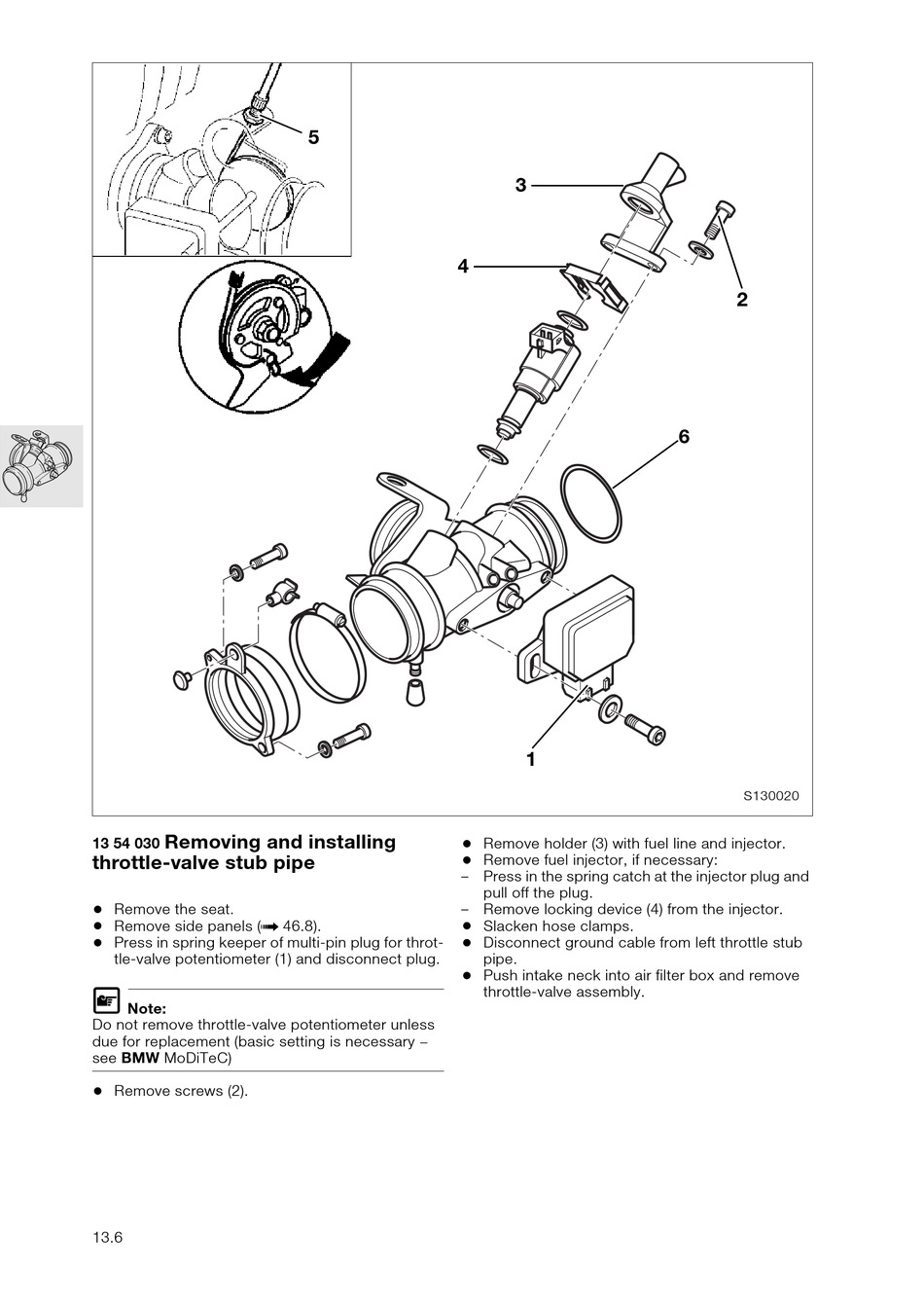

Removing and installing
13 54 030
throttle-valve stub pipe
•
Remove the seat.
•
Remove side panels (
a
•
Press in spring keeper of multi-pin plug for throt-
tle-valve potentiometer (1) and disconnect plug.
L
Note:
Do not remove throttle-valve potentiometer unless
due for replacement (basic setting is necessary —
see BMW MoDiTeC)
•
Remove screws (2).
13.6
5
46.8).
3
4
1
•
Remove holder (3) with fuel line and injector.
•
Remove fuel injector, if necessary:
– Press in the spring catch at the injector plug and
pull off the plug.
– Remove locking device (4) from the injector.
•
Slacken hose clamps.
•
Disconnect ground cable from left throttle stub
pipe.
•
Push intake neck into air filter box and remove
throttle-valve assembly.
2
6
S130020
