7

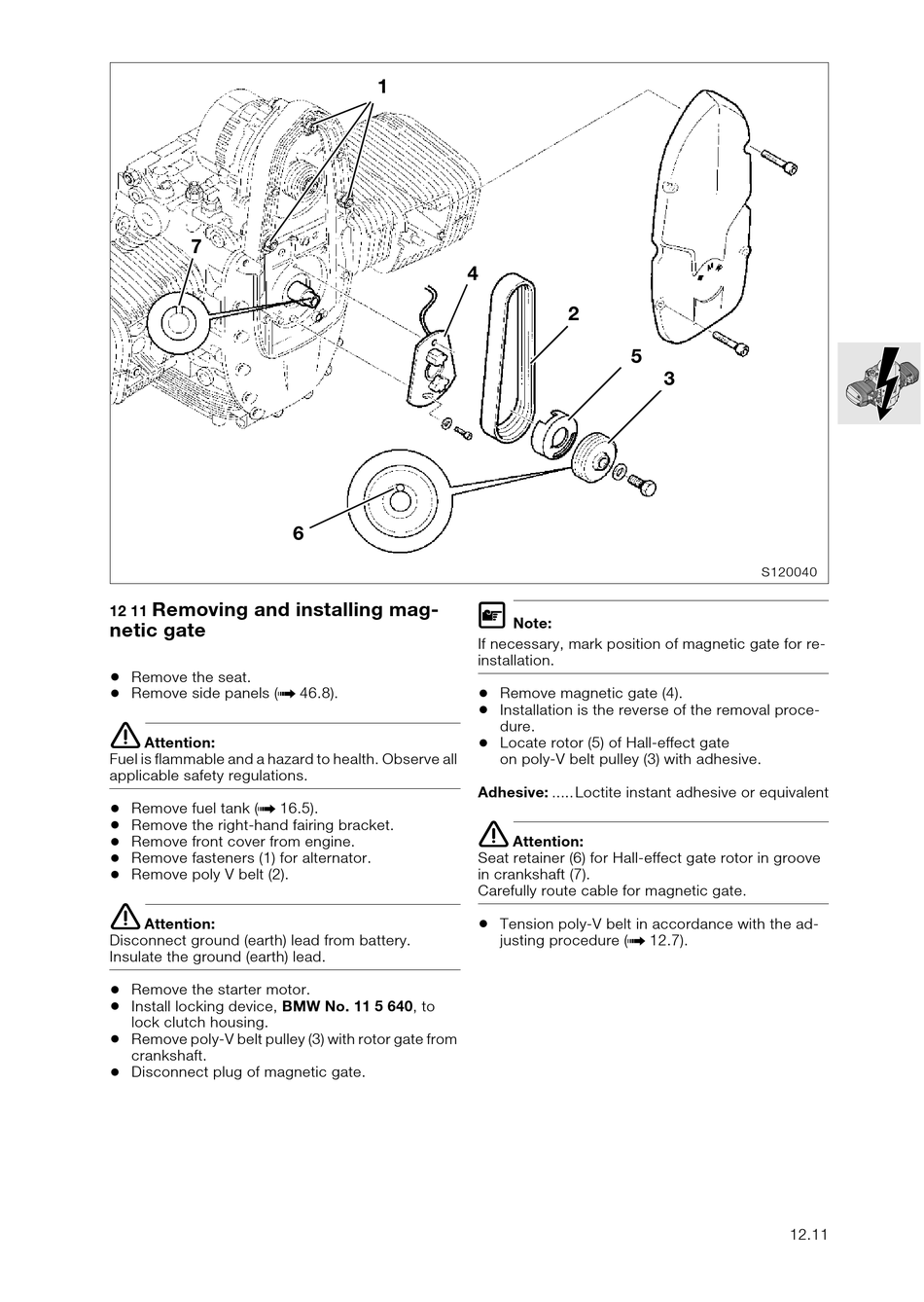

Removing and installing mag-
12 11
netic gate
•
Remove the seat.
•
Remove side panels (
a
e
Attention:
Fuel is flammable and a hazard to health. Observe all
applicable safety regulations.
•
Remove fuel tank ( 16.5).
a
•
Remove the right-hand fairing bracket.
•
Remove front cover from engine.
•
Remove fasteners (1) for alternator.
•
Remove poly V belt (2).
e
Attention:
Disconnect ground (earth) lead from battery.
Insulate the ground (earth) lead.
•
Remove the starter motor.
•
Install locking device, BMW No. 11 5 640, to
lock clutch housing.
•
Remove poly-V belt pulley (3) with rotor gate from
crankshaft.
•
Disconnect plug of magnetic gate.
1
6
46.8).
4
2
5
L
Note:
If necessary, mark position of magnetic gate for re-
installation.
•
Remove magnetic gate (4).
•
Installation is the reverse of the removal proce-
dure.
•
Locate rotor (5) of Hall-effect gate
on poly-V belt pulley (3) with adhesive.
Adhesive: .....Loctite instant adhesive or equivalent
e
Attention:
Seat retainer (6) for Hall-effect gate rotor in groove
in crankshaft (7).
Carefully route cable for magnetic gate.
•
Tension poly-V belt in accordance with the ad-
justing procedure (
a
3
S120040
12.7).
12.11
