2.6 Display Options

Available Multiscreen Displays

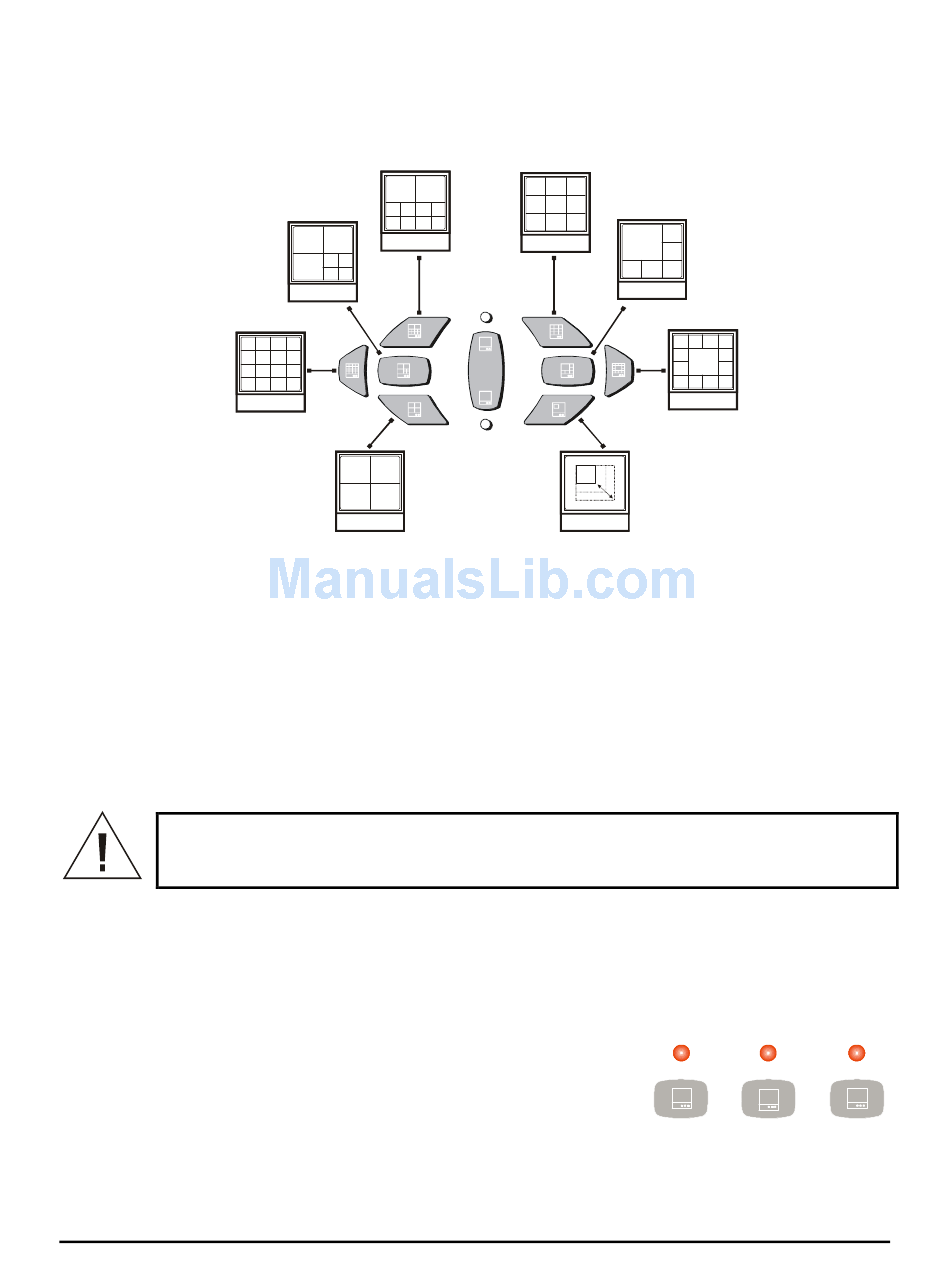

Press the Multiscreen buttons to activate the multiscreen display on Monitors A or B. Pressing the
individual multiscreen button will display the corresponding multiscreen.
The multiscreen display is limited to the number of camera inputs on the unit.
The camera assignments for each multiscreen is retained (in non-volatile memory) for both Live and
Playback multiscreen mode on Monitor A, as well as Live multiscreen mode on Monitors B,C,D, and E.
PIP: Use the Jog/Shuttle to adjust the location and size of the PIP display. Please note that the PIP
display is only available on Monitor A in Live mode, when Monitor B is in fullscreen display mode.
Displays on Monitors C through E
These are full-screen and analog, displaying only Live images (regardless of the mode selected). A
sequenced or fixed display of any one camera can be selected on Monitors C through E.
The time, date, alarm, video loss messages, titles, and all on-screen data on Monitors C
through E are related to current, live data, and must not be confused with the playback data
that might be displayed on Monitors A or B.
Independent Sequence List and Dwell Times
Independent full-screen sequences may operate on Monitors A through E. See AutoList and
Sequencing in section 2.8.
Operating on Monitors C through E
To control Monitors-C, D, or E, press the corresponding Monitor
button. The Monitor- LED will light to indicate that the Monitor has
been selected. While the LED remains on, the camera keys and the
sequence key operate on the selected monitor, and not on
Monitor A.
