Monitor output BNC. Connect this to a monitor to view Digia II output.
C
SVGA connector. Connect a computer monitor to view a Digia II output.
D
Ethernet port. Use an Ethernet cable to connect Digia II to a computer network.
E
Alarm output connections. Connect to apprpopriate devices (siren, buzzer, etc.).
F
Alarm input connections. Connect alarms here.
G
Audio in/out. Connect speakers and/or microphone here.
H
19 VDC power connector. Connect the power source here.
I

Monitor display

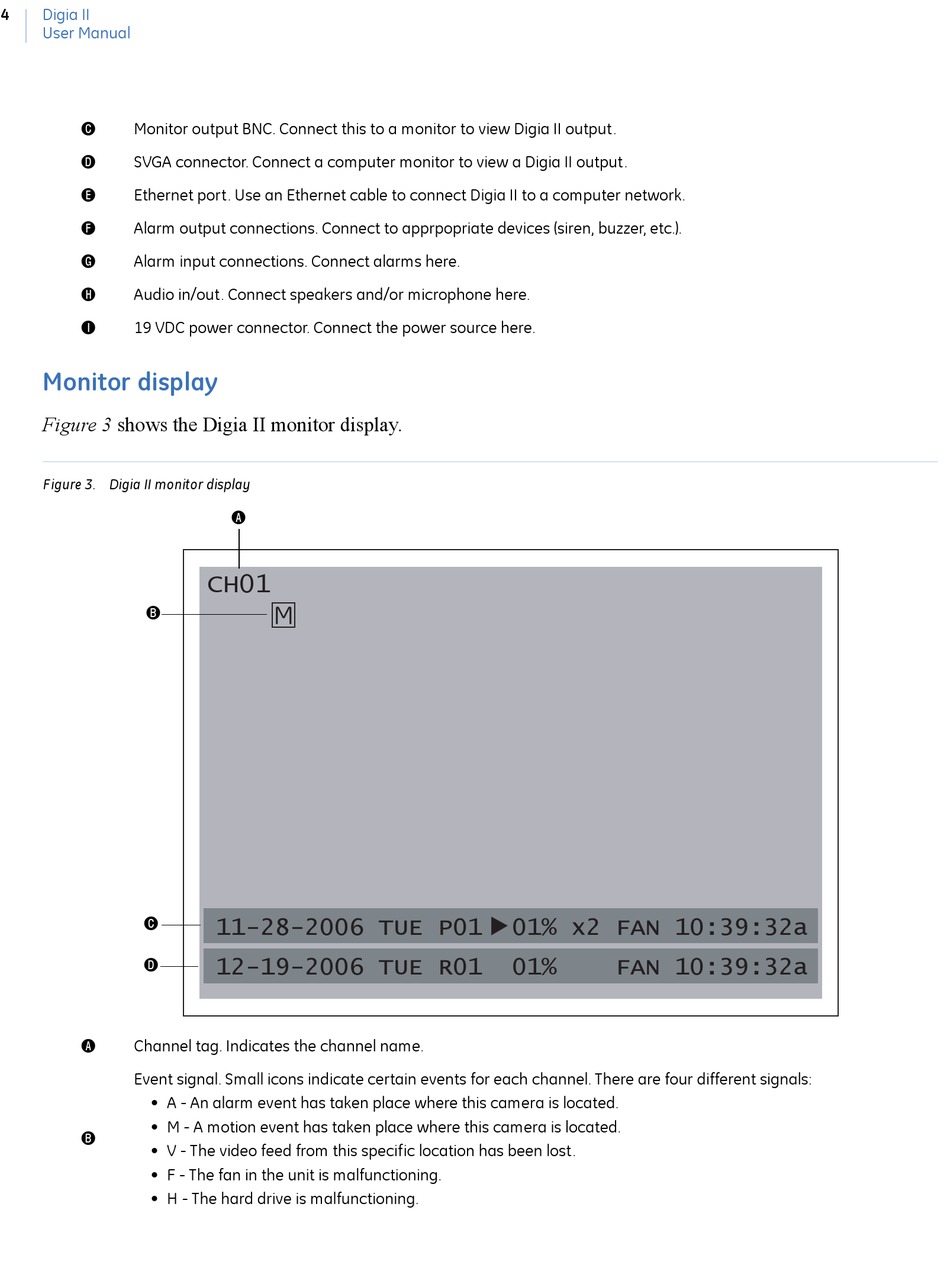

Figure 3 shows the Digia II monitor display.
Figure 3. Digia II monitor display
B
C
D
Channel tag. Indicates the channel name.
A
Event signal. Small icons indicate certain events for each channel. There are four different signals:
• A - An alarm event has taken place where this camera is located.
• M - A motion event has taken place where this camera is located.
B
• V - The video feed from this specific location has been lost.
• F - The fan in the unit is malfunctioning.
• H - The hard drive is malfunctioning.
A
CH01
M
11-28-2006 TUE P01
12-19-2006 TUE R01
01% x2 FAN 10:39:32a
01% FAN 10:39:32a
