DMVRe Matrix Basic Operations
2.1 Principal Operating Modes
The DVMRe Matrix has three principal modes of operation:
•
Live Viewing.
•
Playback.
•
Recording.
All three of these modes can operate simultaneously. Each mode is discussed in detail later in this
section.

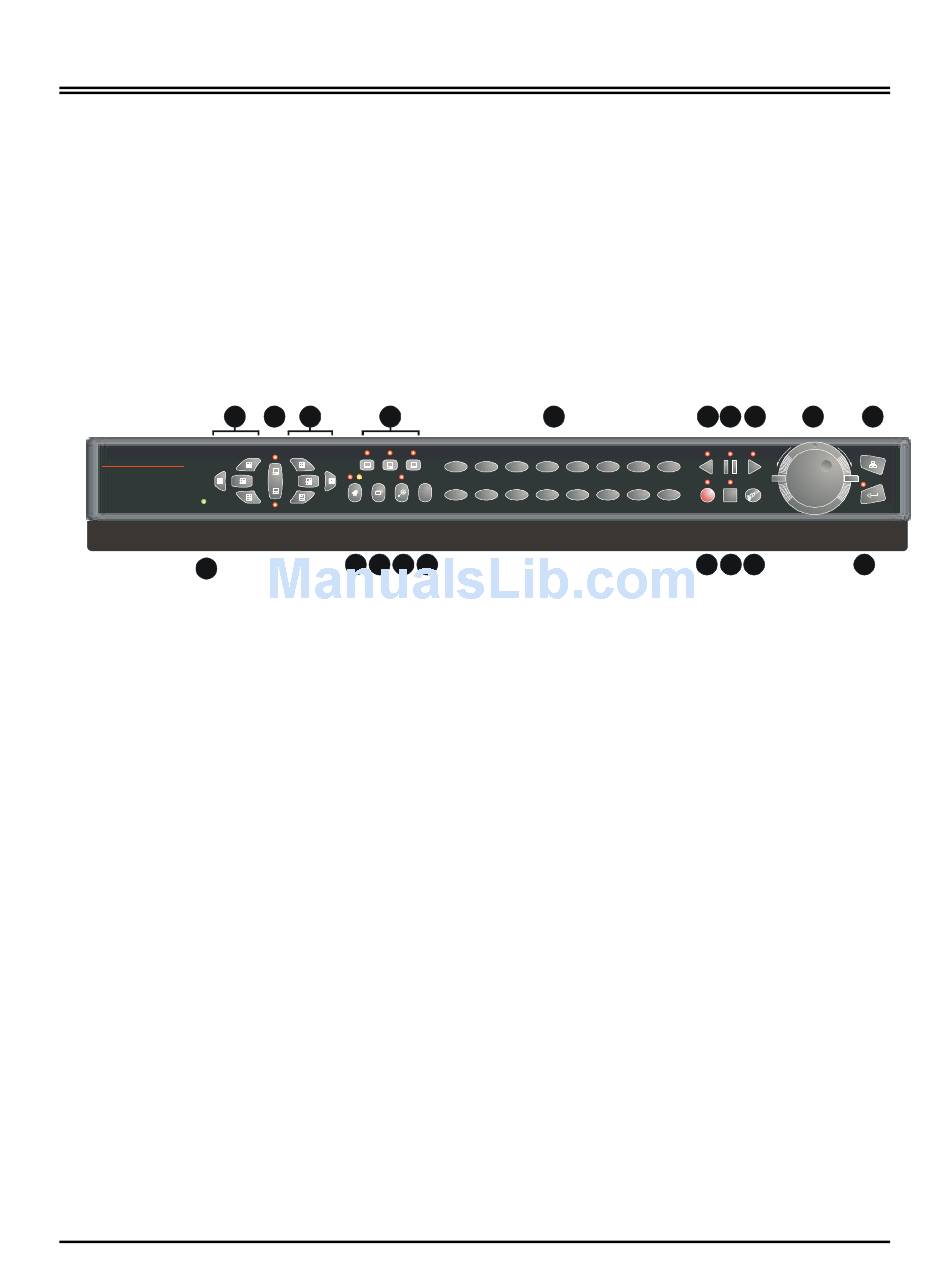

2.2 The Front Panel
1
e
GE Security
DVMRe-Matrix
11
1. Multiscreen Selection Buttons: 16, 10, 7, and 4 way.
2. Monitor Selection Button: Monitor A or Monitor B.
3. Multiscreen Selection Buttons: 13, 9, 6 way, and Picture-in-Picture.
4. Monitor Selection Button: Monitors C,D, and E.
5. Camera Selection Number buttons: Camera numbers 1 through 16.
6. Reverse Play Button: Playback in Reverse.
7. Freeze Button: Freezes camera images on-screen in Live mode. Pauses Playback.
8. Play Forward Button: Begins Playback.
9. Jog/Shuttle: Controls Playback speed and Menu selections.
10. Menu Button: Provides access to on-screen menus.
11. Power Indicator: Indicates power on/off condition.
12. Alarm button: Allows user to acknowledge and silence alarms.
13. Sequence Button: Sequences camera views.
14. Zoom Button: Provides a 2X digital zoom.
15. Function Button: Used in conjunction with Camera Buttons to run Macros.
16. Record Button: Used to Start and Stop Recording.
17. Stop Button: To stop Playback and return to Live mode.
18. Search Button: Access to stored video data.
19. Enter Button: Confirms selection in menus.
0150-0242D
2
3
4
C
D
E
A
B
{F}
12 13 14 15
16
5
5
1
2
3
4
6
9
10
11
12
13
14
6
7
8
9
7
8
15
16
16 17 18
GE Security DVMRe Matrix
10
19
