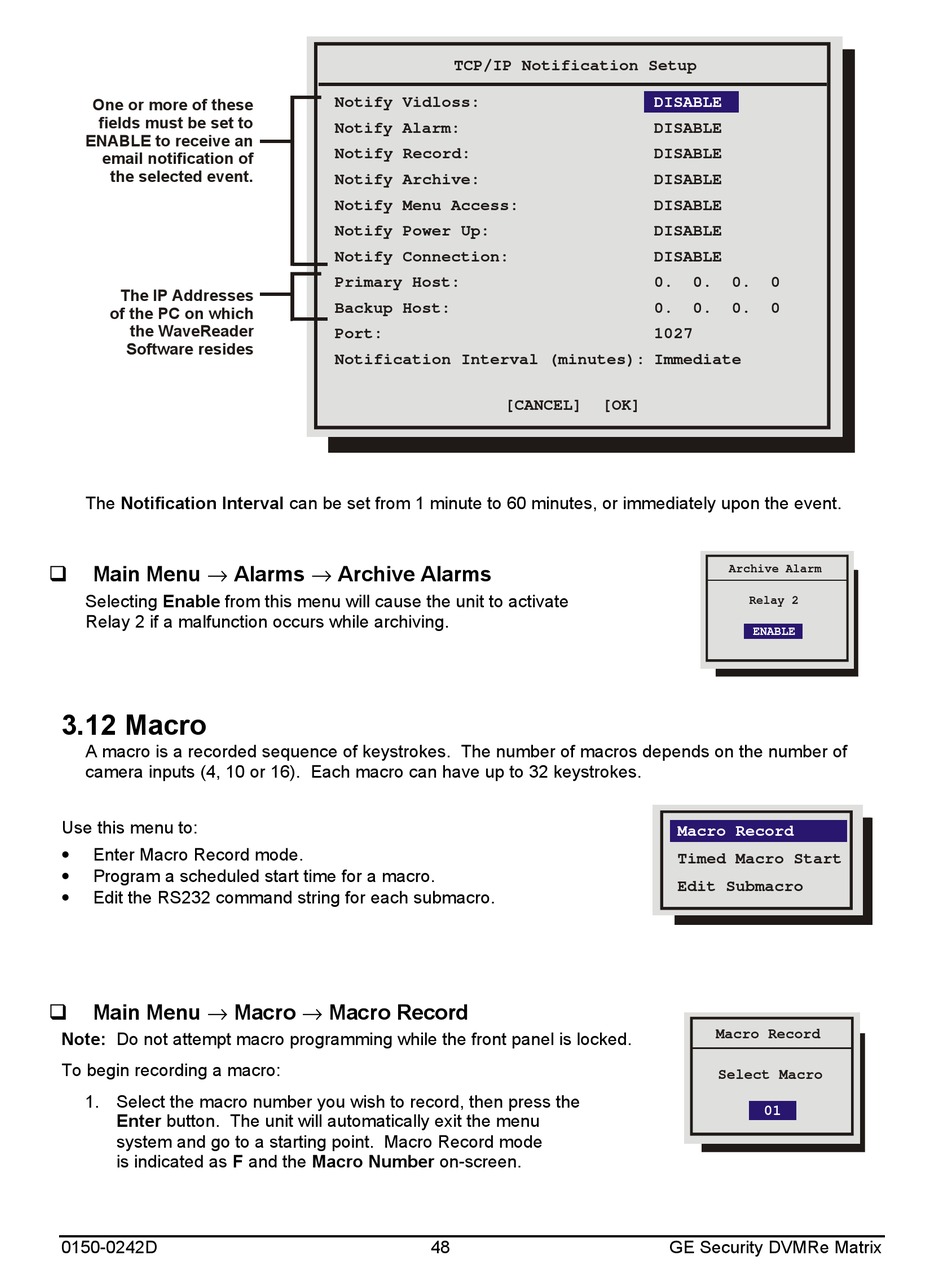

One or more of these
fields must be set to
ENABLE to receive an
email notification of
the selected event.
The IP Addresses
of the PC on which
the WaveReader
Software resides
The Notification Interval can be set from 1 minute to 60 minutes, or immediately upon the event.
Main Menu → Alarms → Archive Alarms
q
Selecting Enable from this menu will cause the unit to activate
Relay 2 if a malfunction occurs while archiving.
3.12 Macro
A macro is a recorded sequence of keystrokes. The number of macros depends on the number of
camera inputs (4, 10 or 16). Each macro can have up to 32 keystrokes.
Use this menu to:
•
Enter Macro Record mode.
•
Program a scheduled start time for a macro.
•
Edit the RS232 command string for each submacro.
Main Menu → Macro → Macro Record
q
Note: Do not attempt macro programming while the front panel is locked.
To begin recording a macro:
1. Select the macro number you wish to record, then press the
Enter button. The unit will automatically exit the menu
system and go to a starting point. Macro Record mode
is indicated as F and the Macro Number on-screen.
0150-0242D
TCP/IP Notification Setup
Notify Vidloss:
Notify Alarm:
Notify Record:
Notify Archive:
Notify Menu Access:
Notify Power Up:
Notify Connection:
Primary Host:
Backup Host:
Port:
Notification Interval (minutes):
[CANCEL]
48
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
0.
0.
0.
0
0.
0.
0.
0
10
27
Immediate
[OK]
Archive Alarm
Relay 2
ENABLE
Macro Record
Timed Macro Start
Edit Submacro
Macro Record
Select Macro
01
GE Security DVMRe Matrix
