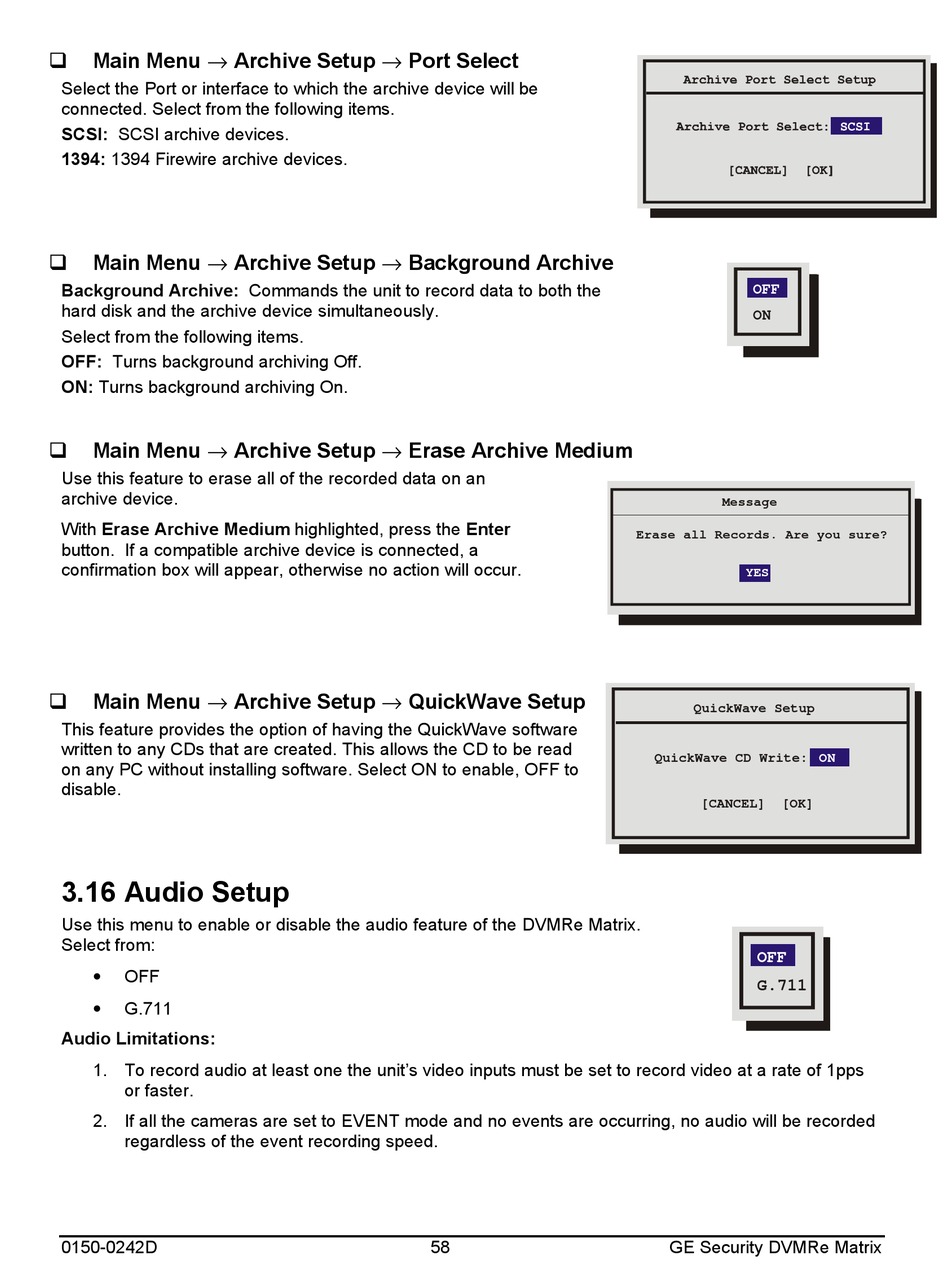

Audio Setup - GE Security DVMRe Matrix User Manual

Main Menu → Archive Setup → Port Select
q
Select the Port or interface to which the archive device will be
connected. Select from the following items.
SCSI: SCSI archive devices.
1394: 1394 Firewire archive devices.
Main Menu → Archive Setup → Background Archive
q
Background Archive: Commands the unit to record data to both the
hard disk and the archive device simultaneously.
Select from the following items.
OFF: Turns background archiving Off.
ON: Turns background archiving On.
Main Menu → Archive Setup → Erase Archive Medium
q
Use this feature to erase all of the recorded data on an
archive device.
With Erase Archive Medium highlighted, press the Enter
button. If a compatible archive device is connected, a
confirmation box will appear, otherwise no action will occur.
Main Menu → Archive Setup → QuickWave Setup
q
This feature provides the option of having the QuickWave software
written to any CDs that are created. This allows the CD to be read
on any PC without installing software. Select ON to enable, OFF to
disable.

3.16 Audio Setup

Use this menu to enable or disable the audio feature of the DVMRe Matrix.
Select from:
•
OFF
•
G.711
Audio Limitations:
1. To record audio at least one the unit's video inputs must be set to record video at a rate of 1pps
or faster.
2. If all the cameras are set to EVENT mode and no events are occurring, no audio will be recorded
regardless of the event recording speed.
0150-0242D 58
OFF
ON
Message
Erase all Records. Are you sure?
YES
QuickWave Setup
QuickWave CD Write:
[CANCEL] [OK]
OFF
G.711
GE Security DVMRe Matrix
ON
