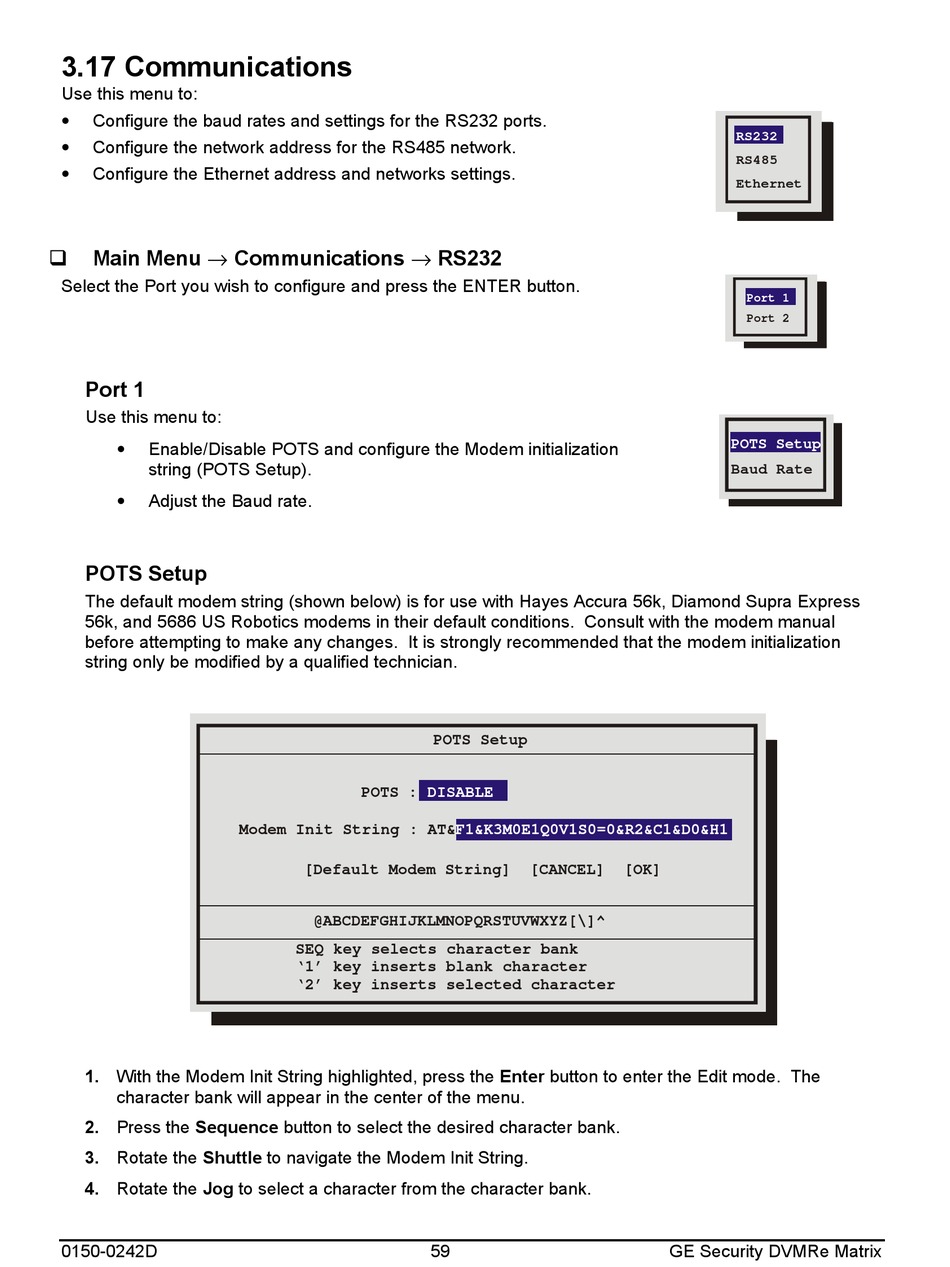

3.17 Communications

Use this menu to:
•
Configure the baud rates and settings for the RS232 ports.
•
Configure the network address for the RS485 network.
•
Configure the Ethernet address and networks settings.
Main Menu → Communications → RS232
q
Select the Port you wish to configure and press the ENTER button.
Port 1
Use this menu to:
•
Enable/Disable POTS and configure the Modem initialization
string (POTS Setup).
•
Adjust the Baud rate.
POTS Setup
The default modem string (shown below) is for use with Hayes Accura 56k, Diamond Supra Express
56k, and 5686 US Robotics modems in their default conditions. Consult with the modem manual
before attempting to make any changes. It is strongly recommended that the modem initialization
string only be modified by a qualified technician.
1. With the Modem Init String highlighted, press the Enter button to enter the Edit mode. The
character bank will appear in the center of the menu.
2. Press the Sequence button to select the desired character bank.
3. Rotate the Shuttle to navigate the Modem Init String.
4. Rotate the Jog to select a character from the character bank.
0150-0242D
POTS :
Modem Init String :
[Default Modem String]
@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^
SEQ key selects character bank
'1' key inserts blank character
'2' key inserts selected character
POTS Setup
DISABLE
AT&F1&K3M0E1Q0V1S0=0&R2&C1&D0&H1
[CANCEL]
