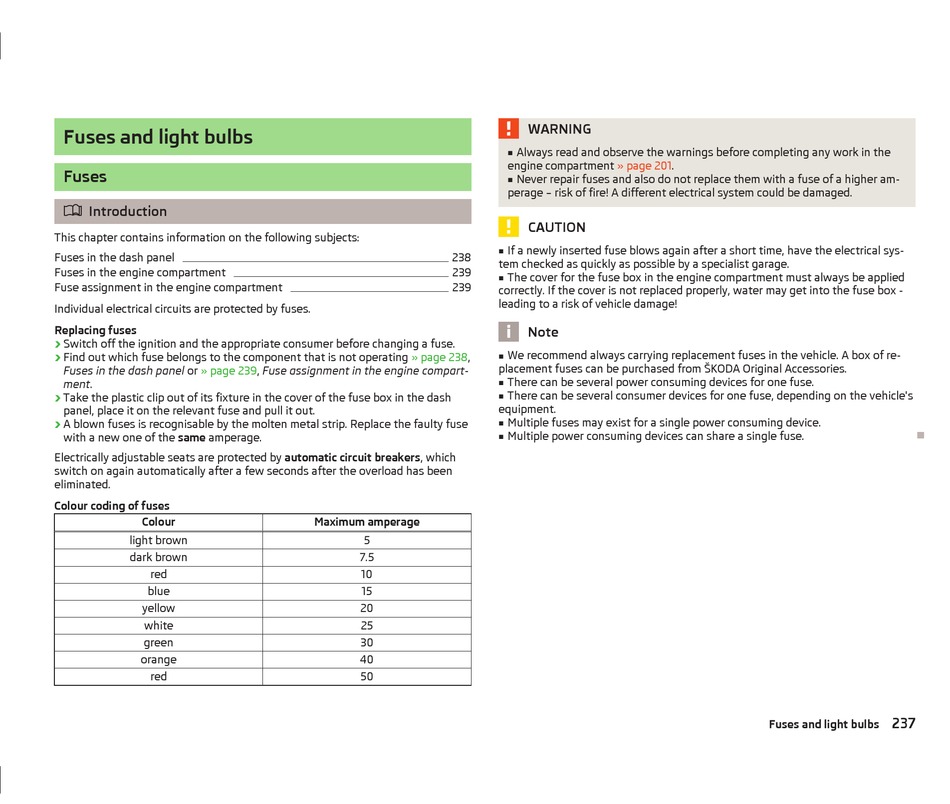

Fuses and light bulbs
Fuses
Introduction
This chapter contains information on the following subjects:
Fuses in the dash panel
Fuses in the engine compartment
Fuse assignment in the engine compartment
Individual electrical circuits are protected by fuses.
Replacing fuses
›
Switch off the ignition and the appropriate consumer before changing a fuse.
›
Find out which fuse belongs to the component that is not operating
Fuses in the dash panel or
» page
ment.
›
Take the plastic clip out of its fixture in the cover of the fuse box in the dash
panel, place it on the relevant fuse and pull it out.
›
A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse
with a new one of the same amperage.
Electrically adjustable seats are protected by automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated.
Colour coding of fuses
Colour
light brown
dark brown
red
blue
yellow
white
green
orange
red
» page
239, Fuse assignment in the engine compart-
Maximum amperage
5
7.5
10
15
20
25
30
40
50
WARNING
Always read and observe the warnings before completing any work in the
■
engine compartment
» page
Never repair fuses and also do not replace them with a fuse of a higher am-
■
perage – risk of fire! A different electrical system could be damaged.
CAUTION
If a newly inserted fuse blows again after a short time, have the electrical sys-
■
238
tem checked as quickly as possible by a specialist garage.
239
The cover for the fuse box in the engine compartment must always be applied
■
239
correctly. If the cover is not replaced properly, water may get into the fuse box -
leading to a risk of vehicle damage!
Note
We recommend always carrying replacement fuses in the vehicle. A box of re-
238,
■
placement fuses can be purchased from ŠKODA Original Accessories.
There can be several power consuming devices for one fuse.
■
There can be several consumer devices for one fuse, depending on the vehicle's
■
equipment.
Multiple fuses may exist for a single power consuming device.
■
Multiple power consuming devices can share a single fuse.
■
201.
