RM1d/RM1ds User Guide
8
Press the DOWN arrow button and then use the PARAMETER encoder to select which
channel you want to send to the selected Line/Cleanfeed Output.
Press the SETUP button to exit the Menu.
9
Configuring a Channel as a Cleanfeed channel
The 4 (6) Line/Cleanfeed Outputs can be used to supply 4 (6) mono cleanfeed outputs or 2
(cleanfeed outputs.
The selected Line/Cleanfeed Output will contain either the STE 1 (PROG) or STE 2 (AUD)
program output signal minus the designated channel
1
Press the SETUP button found below the LCD display.
This will enter the SETUP mode
2
Use the PARAMETER encoder to scroll through the menu pages to locate the LINE/CF
OUTPUTS menu page.
The SETUP button will flash upon selection.
3
Press the SETUP button to enter the LINE/CF OUTPUTS set-up mode.

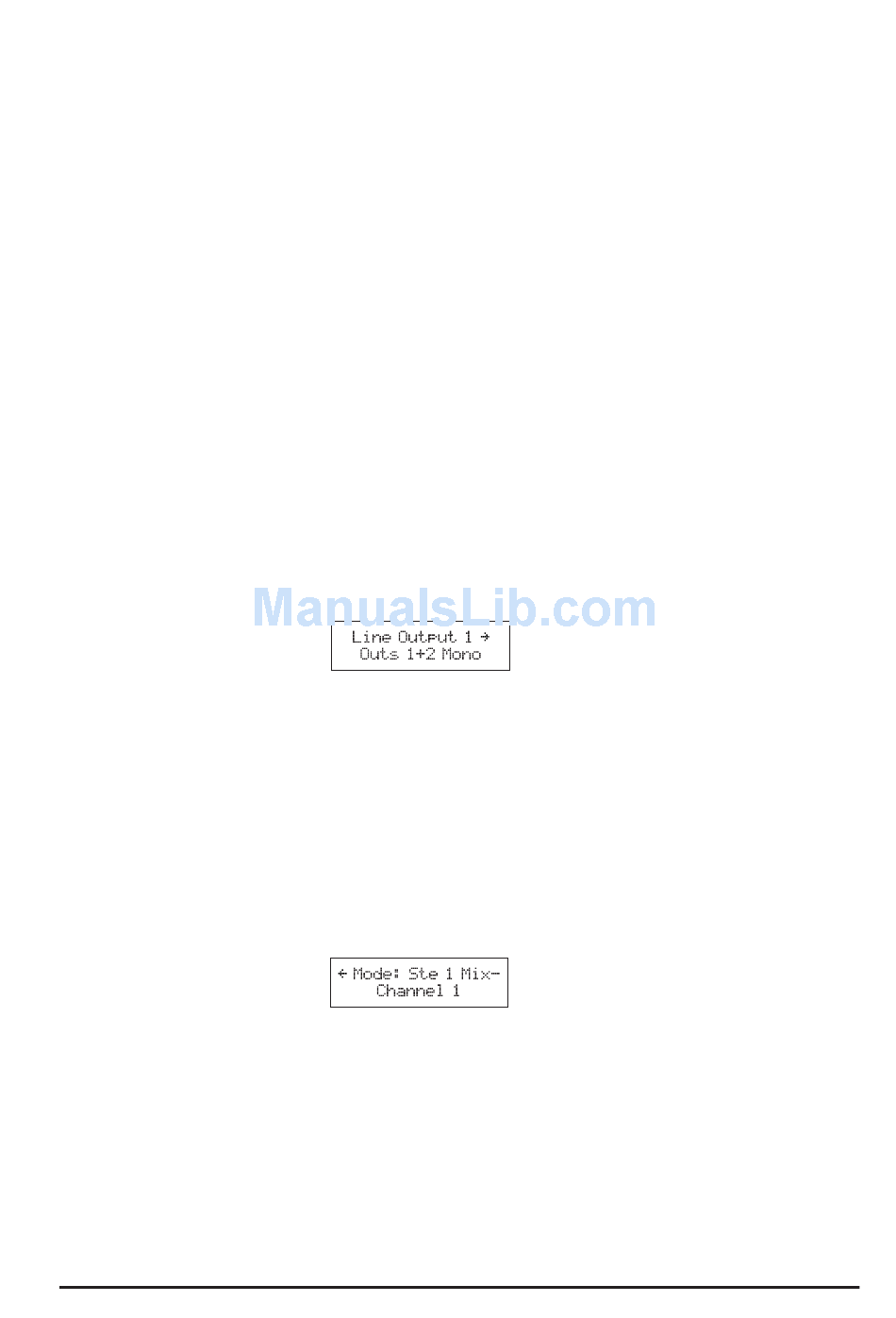

The LCD display will show:
4
Use the PARAMETER (ENCODER) to select which of the 4 (6) Line/Cleanfeed Outputs
you want to use.
5
Press the DOWN arrow button and then use the PARAMETER encoder to choose
whether Line Outputs 1-2 and 3-4 (5-6) are configured to operate as individual
mono outputs or stereo pairs.
6
Press the RIGHT arrow button to enter the Channel Selection page
The LCD display will show:
7
Press the DOWN arrow button and then use the PARAMETER encoder to select which
channel you want to set up as a Cleanfeed channel.
8
Now press the UP arrow button and use the PARAMETER encoder to select whether the
Cleanfeed Output will be sourced from the STE 1 (PROG) or STE 2 (AUD) busses.
9
Press the SETUP button to exit the Menu.
