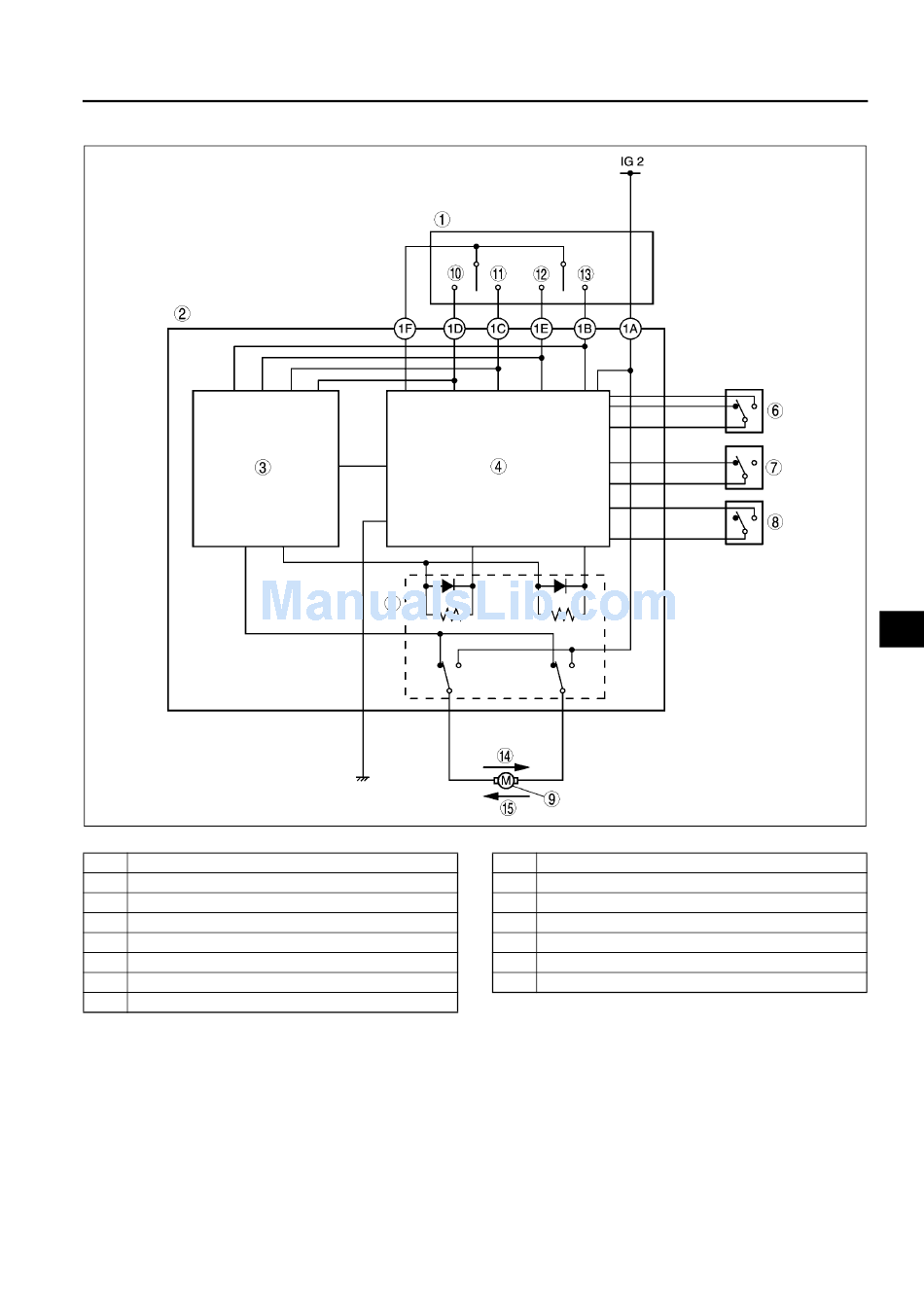

SYSTEM WIRING DIAGRAM

.
1 Sunroof switch
2 Sunroof relay
3 Motor control circuit
4 Motor lock current detection circuit
5 Relay
6 Limit switch No. 1
7 Limit switch No. 2
8 Limit switch No. 3
End Of Sie
SLIDING SUNROOF
9 Sunroof motor
10 Slide open
11 Slide close
12 Tilt down
13 Tilt up
14 Slide open/tilt down
15 Slide close/tilt up
