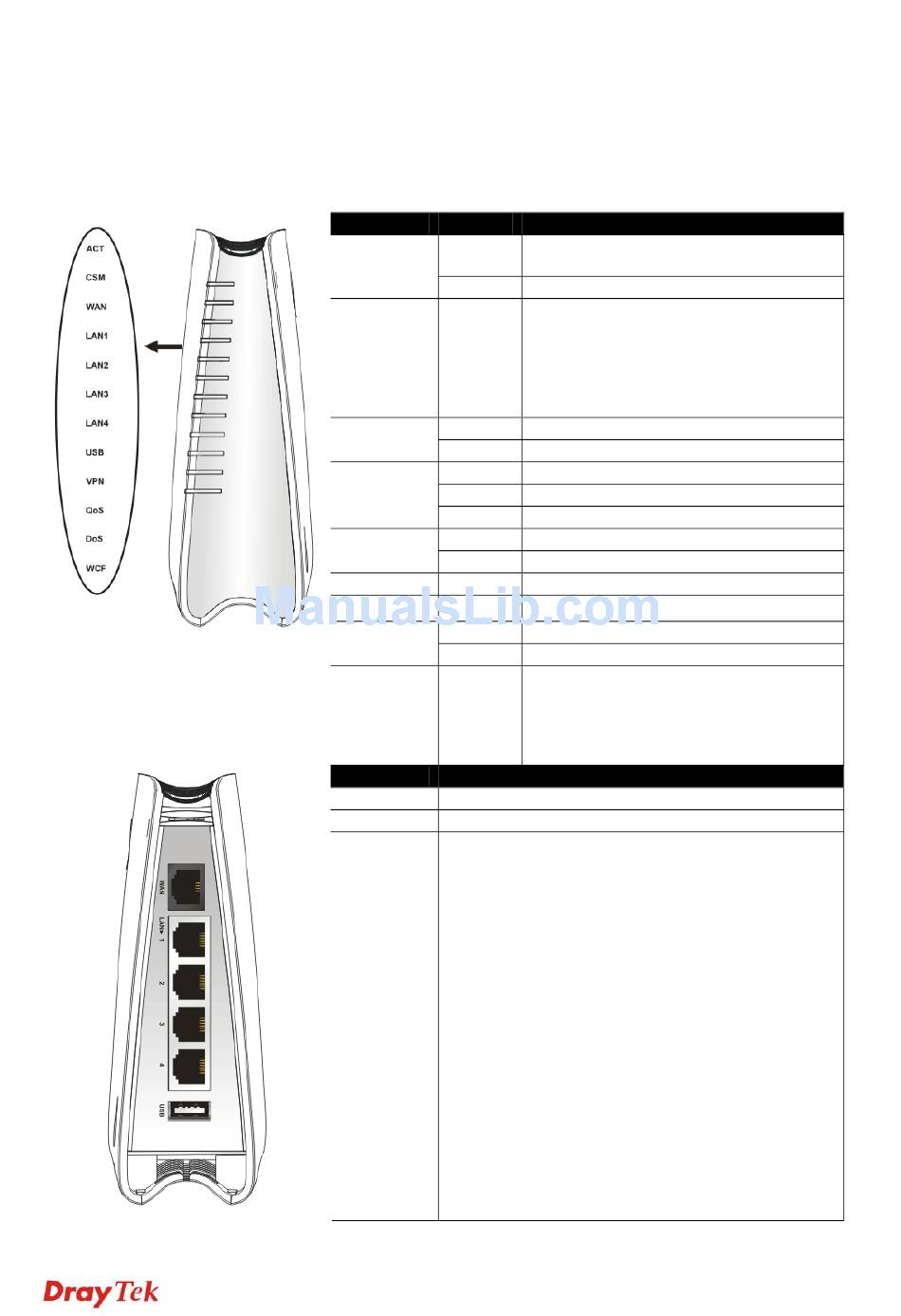

Before you use the Vigor router, please get acquainted with the LED indicators and connectors
first.
1 . 2 . 1 F o r V i g o
1 . 2 . 1 F o r V i g o
t o r s a n d C o n
a t o r s a n d C o n
r 2 1 1 0
r 2 1 1 0
LED
ACT
(Activity)
CSM
WAN
LAN 1/2/3/4
USB
VPN
QoS
DoS
WCF
Interface
WAN
LAN (1-4)
USB
n e c t o r s
n e c t o r s
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On The profile(s) of CSM (Content Security
Management) for IM/P2P, URL/Web
Content Filter application can be enabled
from Firewall >>General Setup. (Such
profile must be established under CSM
menu).
On The WAN port is connected.
Blinking It will blink while transmitting data.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On A USB device is connected and active.
Blinking The data is transmitting.
On The VPN tunnel is active.
On The QoS function is active.
On The DoS/DDoS function is active.
Blinking It will blink while detecting an attack.
On The profile(s) of CSM (Content Security
Management) for Web Content Filter
application can be enabled from Firewall
>>General Setup. (Such profile must be
established under CSM menu)
Description
Connector for accessing the Internet.
Connecters for local networked devices.
Connecter for USB storage device (Pen Driver/Mobile
HD) or printer.
