Media Compartment

Description

The media compartment is either covered by a long side door that com-
pletely encloses the print mechanism and media compartment, or a short
side door that only covers the print mechanism and gives easy access to
the media stock. The door is held by a magnetic lock. It can be opened
180° to provide full access to the media compartment.
The media supply can be from a supply post, or from an external supply
of fan folds behind the printer. There is also an optional rotating media
supply hub.
Also see Chapter 9, "Options."

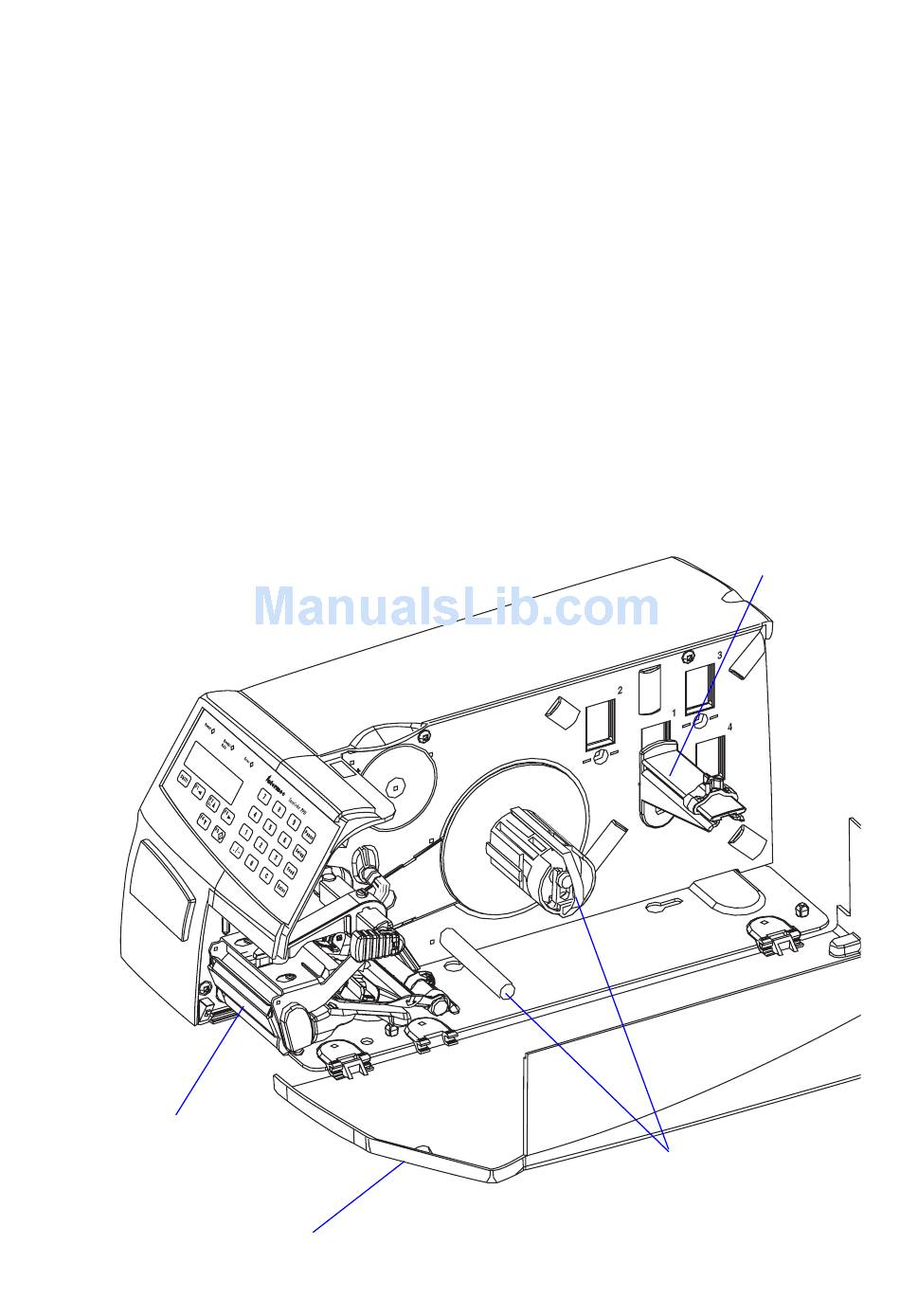

Print
mechanism
Long side door
Intermec EasyCoder PF2i—User's Guide (Fingerprint version)
Chapter 2—Installation
Media supply
roll post with
edge guide
Optional integral
liner takeup with
guide shaft
