Self-Adhesive Strip - Intermec EasyCoder PF2i User Manual

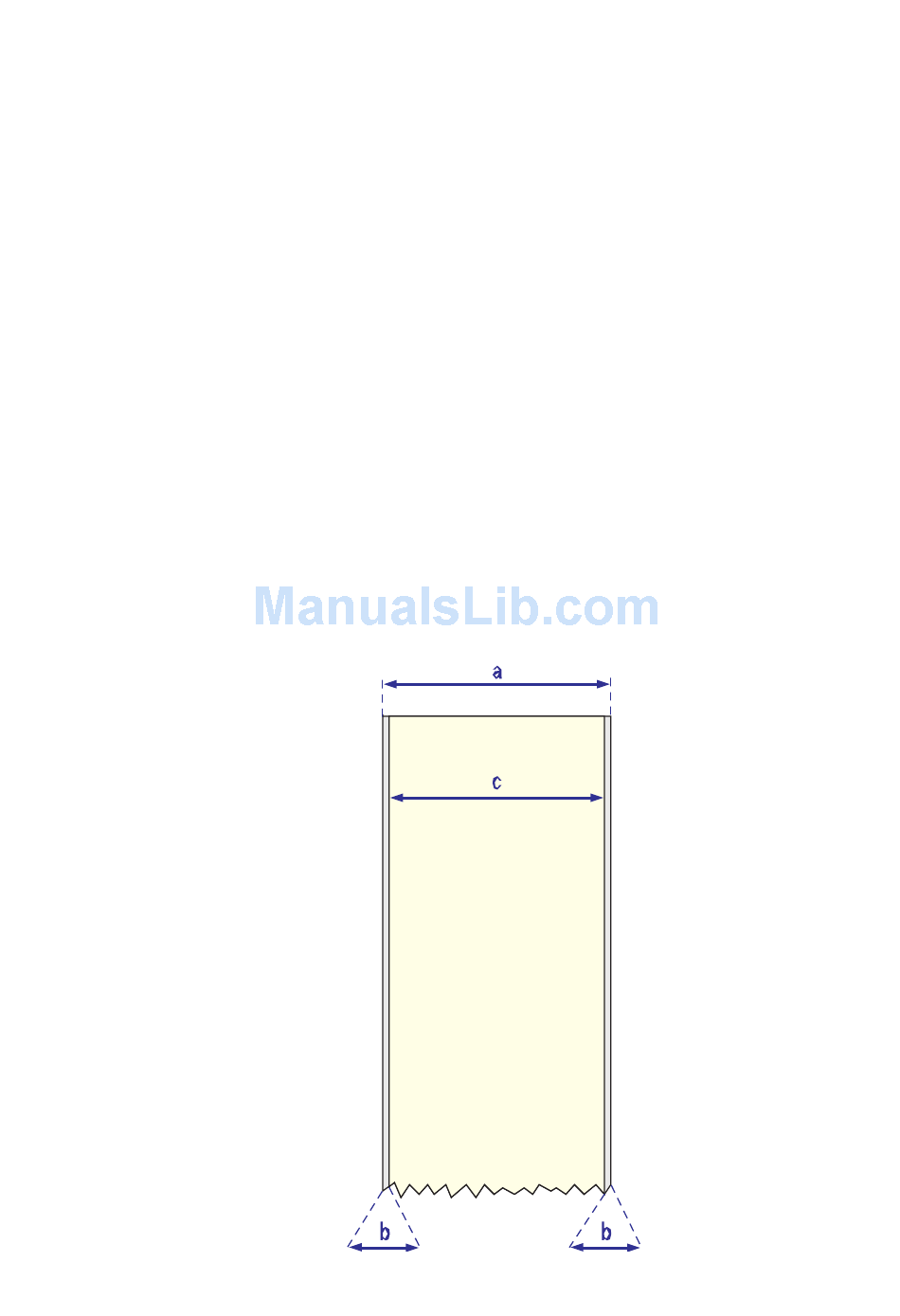

Self-Adhesive Strip

⇐ a ⇒ Media Width (including liner)
Maximum:
Minimum (standard):
Minimum (Quick-Load):
⇐ b ⇒ Liner
The liner must not extend more than a total of 1.6 mm (0.06 inches)
outside the face material and should protrude equally on both sides.
⇐ c ⇒ Media Width (excluding liner)
Maximum:
Minimum:
Media Type Setup
• Fix length strip
• Var length strip
Intermec EasyCoder PF2i—User's Guide (Fingerprint version)
Appendix B—Media Specifi cations
60.0 mm (2.36 inches)
25.0 mm (1.00 inches)
40.0 mm (1.57 inches)
58.4 mm (2.30 inches)
23.8 mm (0.94 inches)
SELF-ADHESIVE
STRIP
115
