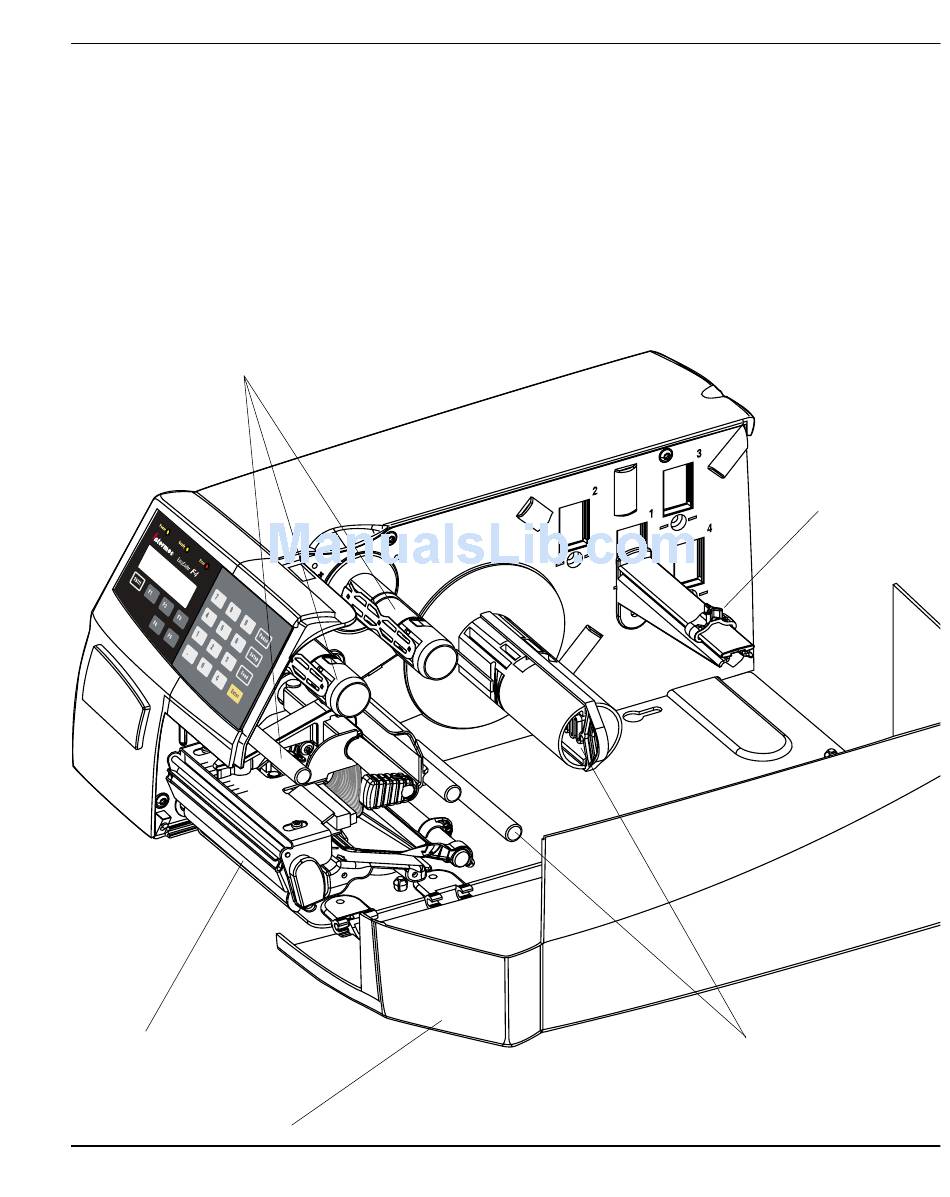

Media
Compartment
Thermal Transfer Mechanism
(optional)
Print Mechanism
Long Side Door
Intermec EasyCoder F4 – Installation & Operation IPL Version, Ed. 1
The media compartment is either covered by a long side door that
completely encloses the print mechanism and media compartment,
an 8-inch Megatop for extra large media rolls, or a short side door that
only covers the print mechanism and gives easy access to the media
stock. The door is held by a magnetic lock. It can be opened 180° so
to provide full access to the media compartment.
The media supply can be from a supply post, or from an external
supply of fan folds behind the printer. There is also an optional
rotating media supply hub, see Chapter 8 "Options."
Chapter 2 Installation
Media Supply
Roll Post
w. Guide
Optional Integral Liner
Takeup with Guide Shaft
11
