Intermec EasyCoder PF2i User Manual page 40

Chapter 4—Media Load
Peel-Off , cont.

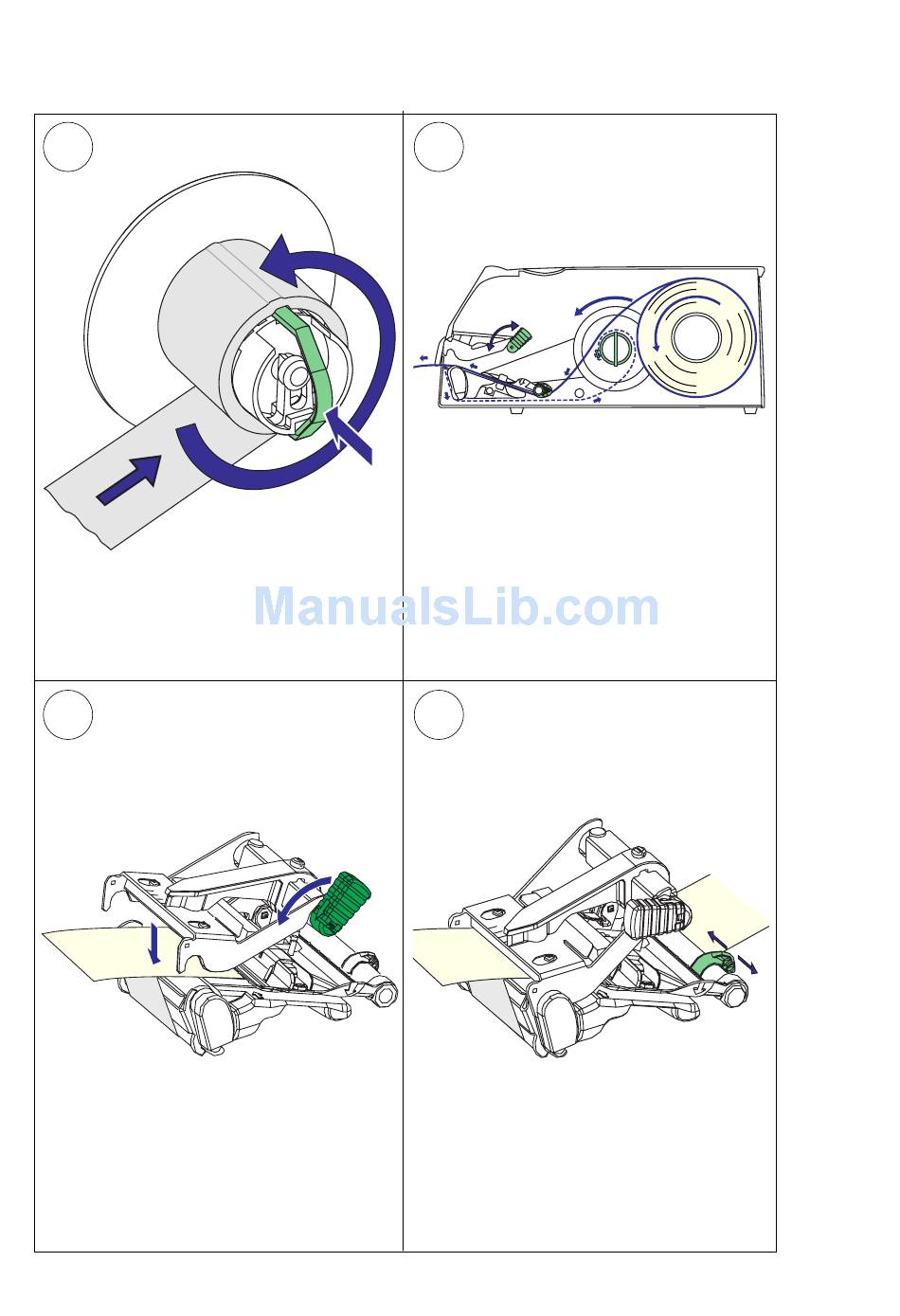

9
Press the handle to expand the takeup
hub and secure the liner. Then rotate
the hub counterclockwise until the liner
becomes tight.
11
Turn the printhead lift lever counter-
clockwise to engage the printhead.
32 Intermec EasyCoder PF2i—User's Guide (Fingerprint version)
10
This diagram shows the media and liner
paths.
12
Adjust the position of the green edge
guide so the media is guided with a
minimum of play.
