Printhead Replacement, cont.
3

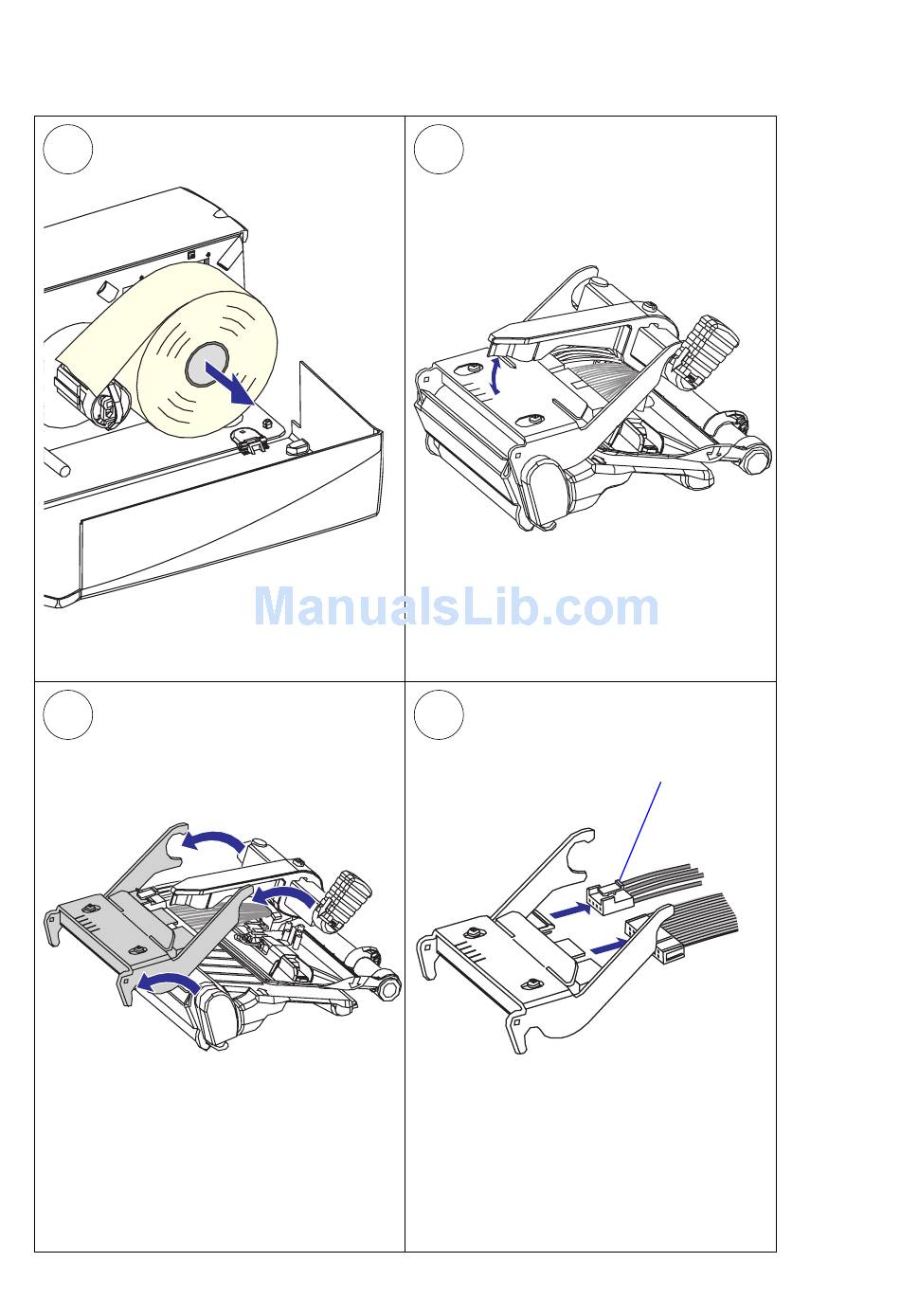

Remove the media (and ribbon).
5
Disconnect the printhead bracket from
the print mechanism as indicated by the
arrows and pull out the printhead as far
as the cables allow.
96 Intermec EasyCoder PF2i—User's Guide (Fingerprint version)
4
Pull the printhead bracket away from
the magnet in the pressure arm.
6
Disconnect the cables from the print-
head. Note the snap-lock on the inner
connector. Pull at the connectors—not
at the cables!
Snap-lock
